Product information

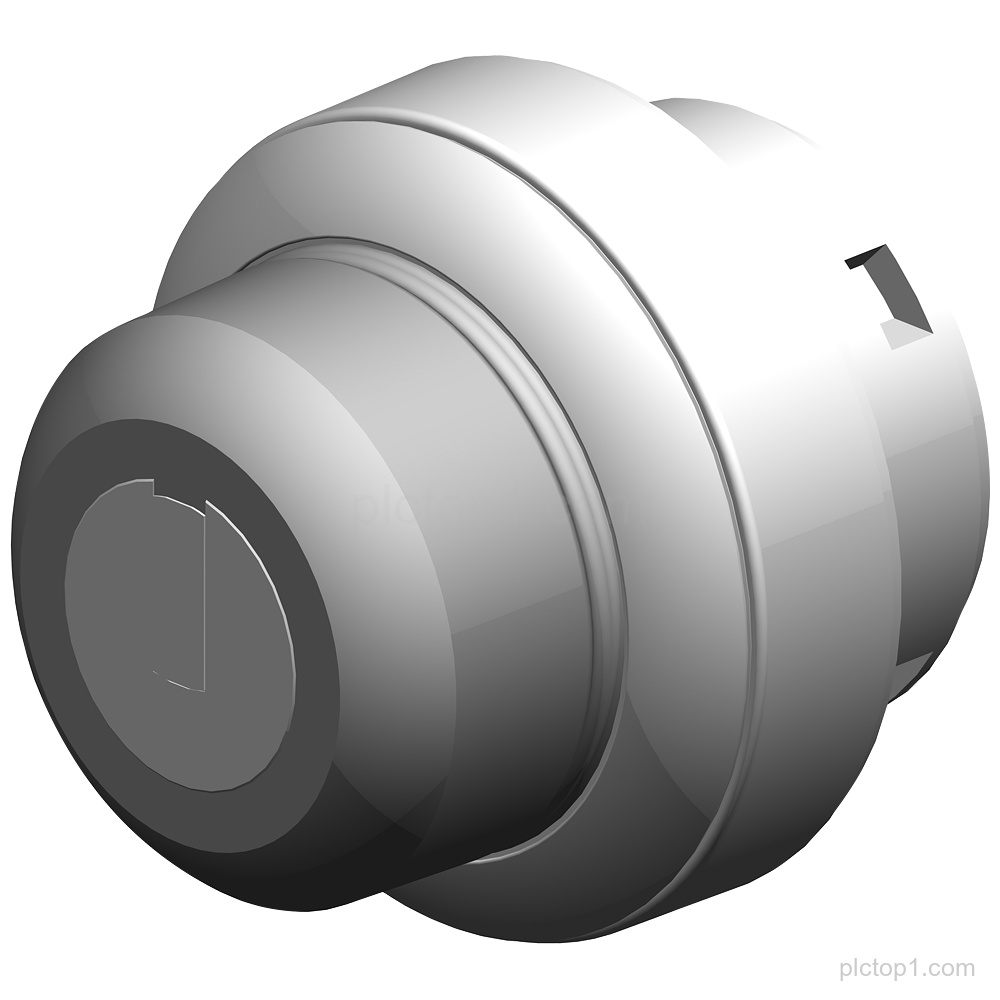

Safety keyswitch for Extension Units, part number 6AV7674-1ME50-0AA0, designed for safety operator control with 22 mm round plastic latching, 2 switch positions (0-1) and 2 closing contacts.
Detailed Parameters
Product type:safety keyswitch for Extension Units
Intended function:safety operator control
Actuator diameter:22 mm
Form:round
Housing material:plastic
Latching:latching
Key quantity:2 keys
Switch positions:2 switch positions 0-1
Key removal condition:in position 0 the key can be removed
Contact type:2 closing contacts
Marking:without inscription
Included electronics:incl. printed circuit board with contact module
Scope of supply:1 keyswitch, 1 printed circuit board, 2 keys, including mounting accessories
Engineering Context
The safety keyswitch for Extension Units supports safety operator control with 2 switch positions (0-1) and latching behavior.
The key removal is specified for position 0 where the key can be removed.
The keyswitch provides 2 closing contacts and includes a printed circuit board with contact module.
FAQ
1. What is the product type of part number 6AV7674-1ME50-0AA0?
It is a safety keyswitch for Extension Units.
2. What is the intended function of 6AV7674-1ME50-0AA0?
It is intended for safety operator control.
3. What is the actuator size and shape for this keyswitch?
It has a 22 mm round design.
4. How many keys and switch positions are provided?
It includes 2 keys and 2 switch positions 0-1.
5. Can the key be removed in all positions?
No; in position 0 the key can be removed.
6. How many closing contacts are available?
It has 2 closing contacts.
7. Does the scope of supply include the printed circuit board?
Yes; the scope of supply includes 1 printed circuit board.
