Product information

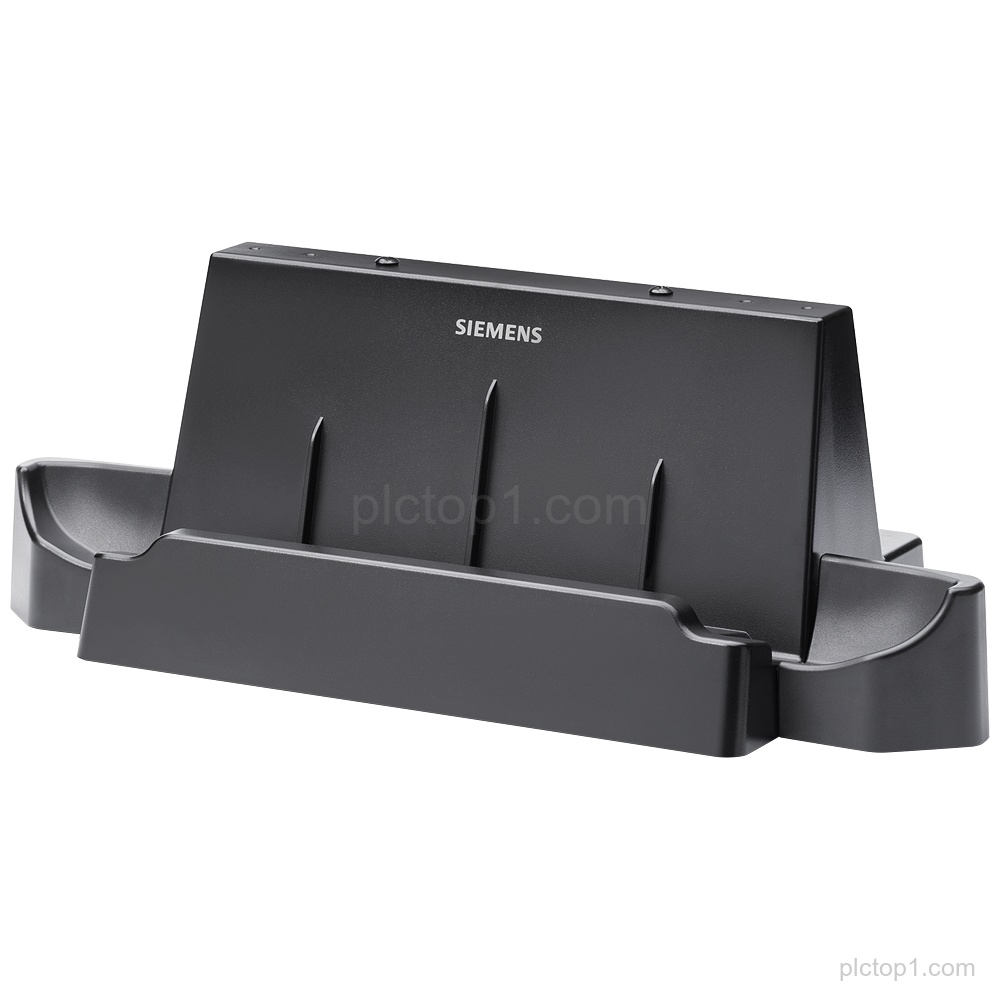

SIMATIC IPC MD-34A Desk Dock accessories; Part number 6AV7676-1AC00-0AA0 for MD-34A all configurations.
Detailed Parameters
Accessories for:MD-34A all configurations
LAN interface:1x LAN 10/100 Mbps
USB interfaces:2x USB 2.0
Additional USB interfaces:2x USB 2.0
RS-232 interfaces:1x RS-232
VGA interface:1x VGA
DC-in:19 V (side)
Power supply cord:Use the MD-34A power supply cord for the Desk Dock
Engineering Context
Designed as SIMATIC IPC MD-34A Desk Dock accessories for MD-34A all configurations.
Provides physical interfaces including 1x LAN 10/100 Mbps, 1x RS-232, and 1x VGA.
Includes DC-in 19 V side and requires use of the MD-34A power supply cord for the Desk Dock.
FAQ
1. What is the product family and designation for part number 6AV7676-1AC00-0AA0?
SIMATIC IPC MD-34A Desk Dock accessories.
2. For which MD-34A configurations is this Desk Dock accessory intended?
MD-34A all configurations.
3. Which network interface does it provide?
1x LAN 10/100 Mbps.
4. How many USB 2.0 ports are included?
2x USB 2.0 and an additional 2x USB 2.0 (total as listed: 2x + 2x USB 2.0).
5. Which serial and video interfaces are included?
1x RS-232 and 1x VGA.
6. What DC input is specified for the side, and what power cord should be used?
DC-in 19 V side; use the MD-34A power supply cord for the Desk Dock.
