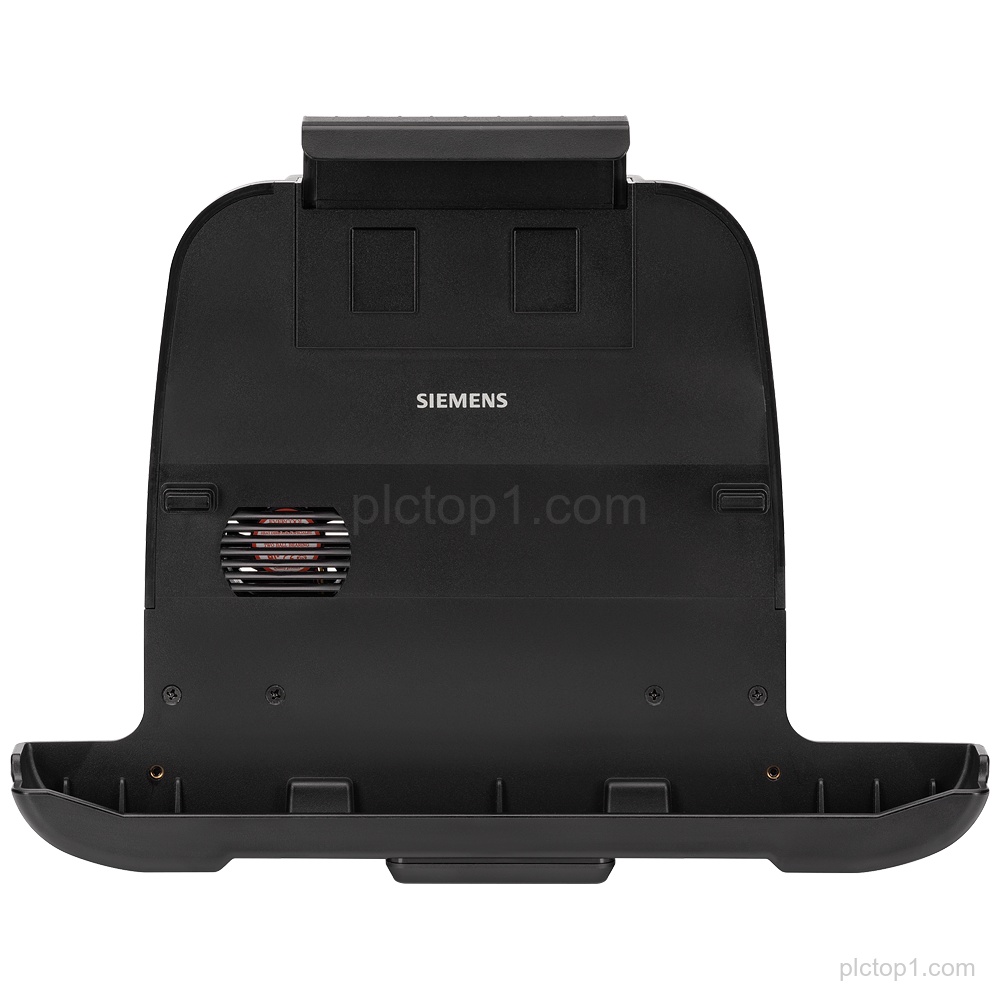

SIMATIC IPC MD-34A Vehicle Dock accessories with part number 6AV7676-1AC10-0AA0 for MD-34A Entry, Entry Plus and Outdoor configurations.
Detailed Parameters
Compatibility:Compatible with MD-34A Entry, Entry Plus and Outdoor configurations
Ethernet interface:1x LAN 10/100 Mbps
USB interfaces:2x USB 2.0 (additional mention: 2x USB 2.0)
Serial interface:1x RS-232
Video interface:1x VGA
Power input:DC-in 9-36 V side
Power supply cord:You must select your power supply cord
RFID module mechanical design limitation:Due to the mechanical design of the RFID module, the High-End and Automation versions cannot be adapted to the vehicle docking station
Engineering Context
Provide vehicle docking accessories for SIMATIC IPC MD-34A configurations including Entry, Entry Plus and Outdoor.
Supports external connectivity via LAN 10/100 Mbps, RS-232 and VGA, with multiple USB 2.0 ports available.
Adaptation to the vehicle docking station is limited for High-End and Automation versions due to the mechanical design of the RFID module.
FAQ
1. Which SIMATIC IPC MD-34A configurations are compatible with 6AV7676-1AC10-0AA0?
It is compatible with MD-34A Entry, Entry Plus and Outdoor configurations.
2. What interface ports are available on 6AV7676-1AC10-0AA0?
It provides 1x LAN 10/100 Mbps, 1x RS-232, 1x VGA, and 2x USB 2.0.
3. What power input range is specified for this accessory?
The DC-in is specified as 9-36 V side.
4. Do I need to select a power supply cord for 6AV7676-1AC10-0AA0?
Yes, you must select your power supply cord.
5. Can High-End and Automation versions be adapted to the vehicle docking station using this accessory?
No; due to the mechanical design of the RFID module, the High-End and Automation versions cannot be adapted to the vehicle docking station.
