Product information

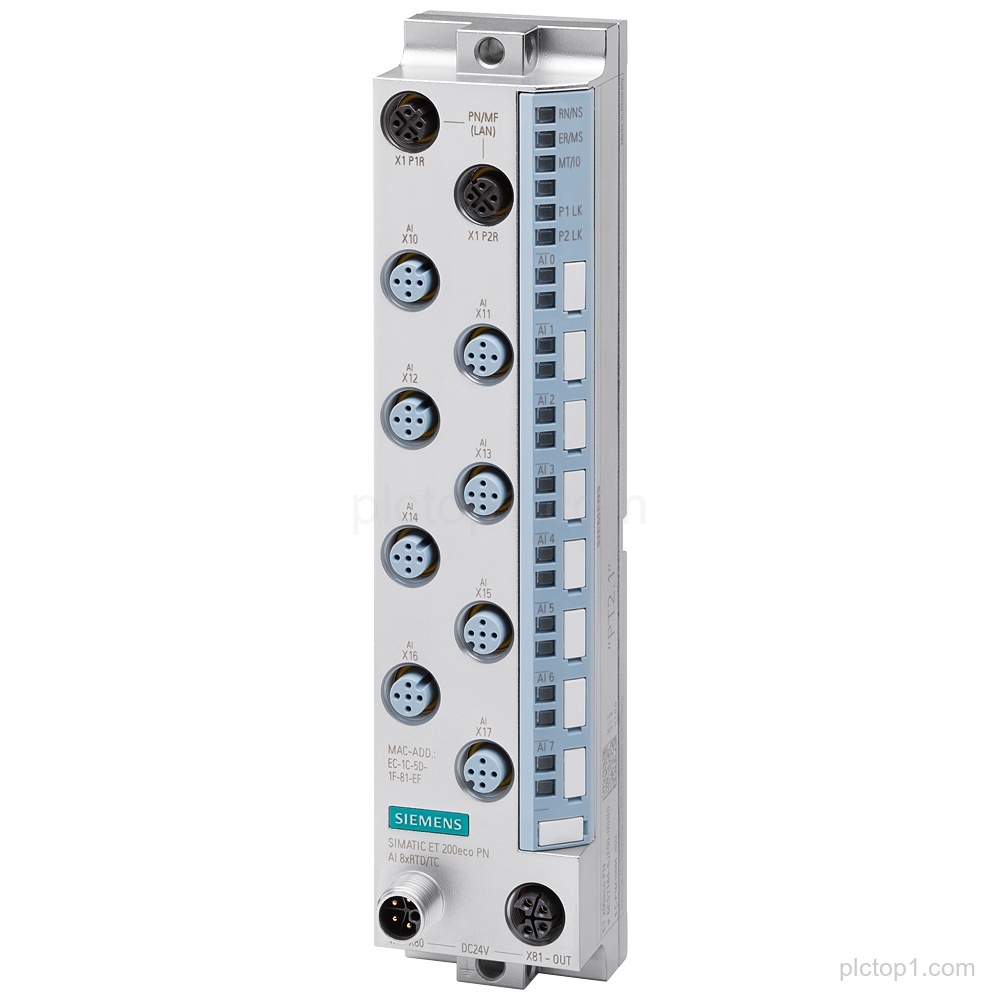

SIMATIC ET 200eco PN, part number 6ES7144-6JF00-0BB0, is an AI 8xRTD/TC module with M12-L and 8x M12 interfaces. It provides 16-bit resolution and channel diagnostics for wire break at input. The product supports shared device with 2 controllers, prioritized startup, MSI, MRP, S2 redundancy, I&M0…3, multi-fieldbus, PN IO, Ethernet IP, and Modbus TCP. Degree of protection is IP67 / IP69K.
Detailed Parameters
Product family:SIMATIC ET 200eco PN
Function:AI 8xRTD/TC
Connection type:M12-L, 8x M12
Resolution:16-bit
Channel diagnostics:Wire break at input
Shared device:With 2 controllers
Startup:Prioritized startup
MSI:Provided
MRP:Provided
Redundancy:S2 redundancy
I&M:I&M0…3
Multi-fieldbus:Provided
PN IO:Provided
Ethernet IP:Provided
Modbus TCP:Provided
Degree of protection:IP67 / IP69K
Engineering Context
The module is intended for analog input acquisition with 8xRTD/TC channels.
Channel diagnostics are provided for wire break at input.
The product supports shared device operation with 2 controllers and S2 redundancy.
FAQ
1. What is the product family?
SIMATIC ET 200eco PN.
2. How many analog input channels are provided?
8xRTD/TC channels.
3. What resolution is specified?
16-bit resolution.
4. What diagnostics are stated?
Channel diagnostics for wire break at input.
5. What degree of protection is specified?
IP67 / IP69K.
