Product information

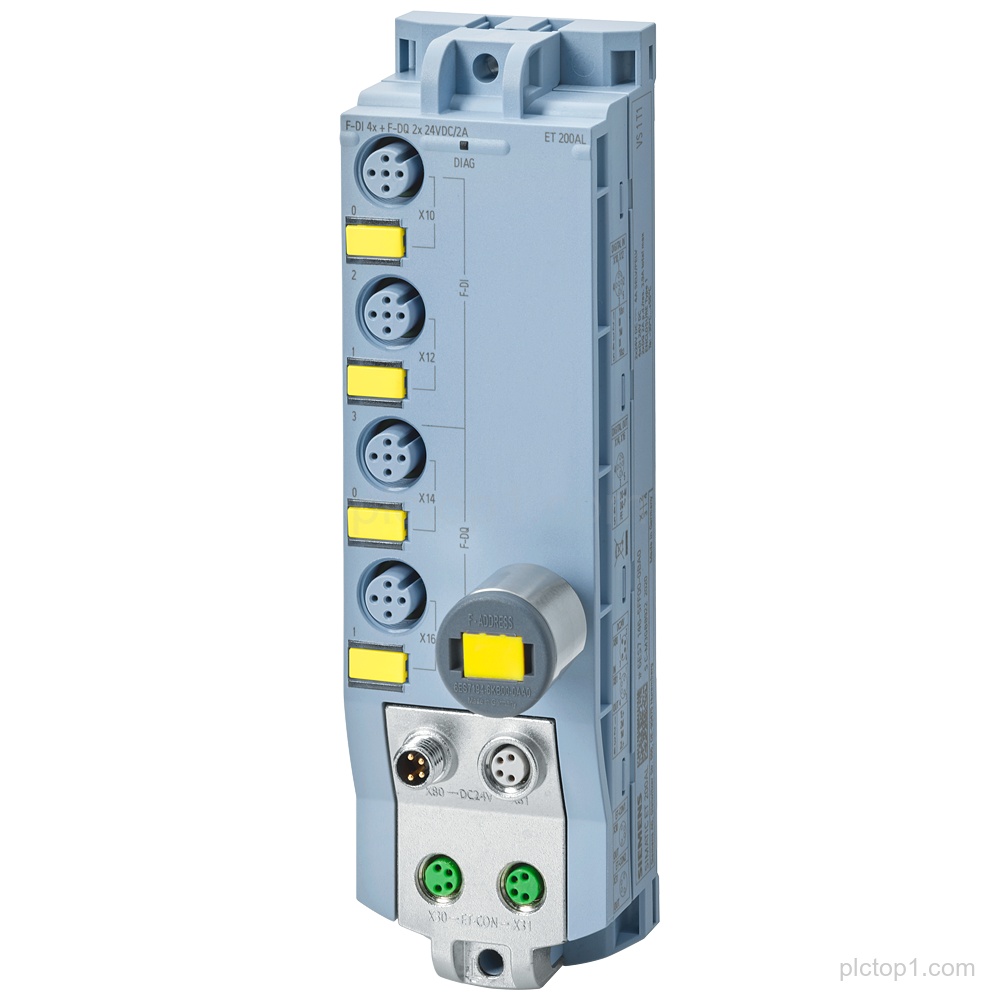

SIMATIC DP, ET 200AL, part number 6ES7146-5FF00-0BA0, is an F-DI 4+F-DQ 2×24 V DC/2 A module with 4xM12, PROFIsafe, up to PL e (ISO 13849), up to SIL 3 (IEC 61508), degree of protection IP67, including eCoding plug-in connector.
Detailed Parameters
Product family:SIMATIC DP, ET 200AL
Function:F-DI 4+F-DQ 2×24 V DC/2 A
Connection:4xM12
Safety communication:PROFIsafe
Safety level:up to PL e (ISO 13849)
Safety integrity level:up to SIL 3 (IEC 61508)
Degree of protection:IP67
Included accessory:eCoding plug-in connector
Engineering Context
The product is part of the SIMATIC DP ET 200AL system.
It provides F-DI and F-DQ functions with 24 V DC and 2 A specifications.
The module includes PROFIsafe and an IP67 degree of protection.
FAQ
1. What product family does 6ES7146-5FF00-0BA0 belong to?
It belongs to SIMATIC DP, ET 200AL.
2. What is the module function of this product?
It is an F-DI 4+F-DQ 2×24 V DC/2 A module.
3. What safety communication is specified?
PROFIsafe is specified.
4. What safety levels are stated?
Up to PL e (ISO 13849) and up to SIL 3 (IEC 61508) are stated.
5. What degree of protection is provided?
The degree of protection is IP67.
