Product information

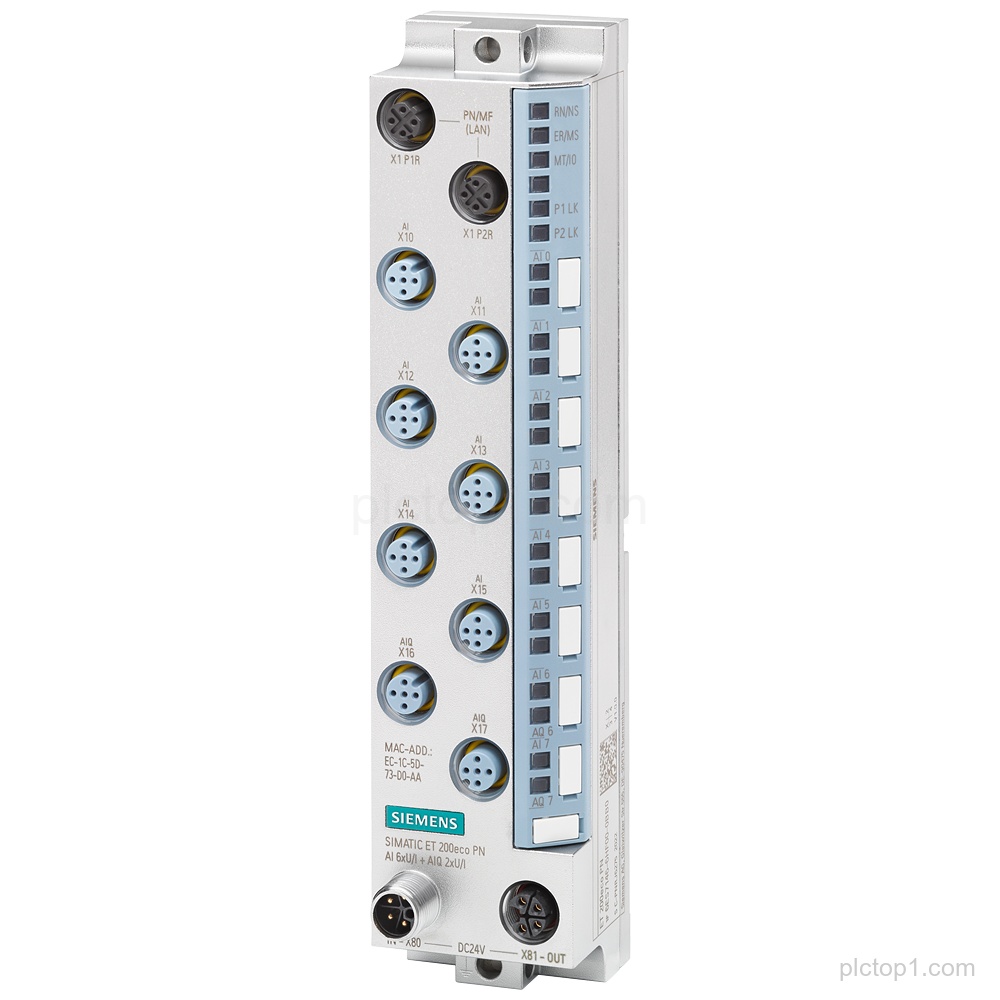

SIMATIC ET 200eco PN, part number 6ES7146-6HF00-0BB0, provides AI 6x U/I + AIQ 2x U/I with M12-L and 8x M12 connections. It includes 16-bit resolution, channel diagnostics for wire break and short-circuit, shared device with 2 controllers, prioritized startup, MSI, MSO, MRP, S2 redundancy, I&M0…3, and multi-fieldbus support including PN IO, Ethernet IP, and Modbus TCP. Degree of protection is IP67 / IP69K.
Detailed Parameters
Product family:SIMATIC ET 200eco PN
Part number:6ES7146-6HF00-0BB0
Signal type:AI 6x U/I + AIQ 2x U/I
Connection type:M12-L, 8x M12
Resolution:16-bit
Channel diagnostics:wire break and short-circuit
Shared device:with 2 controllers
Functions:prioritized startup, MSI, MSO, MRP, S2 redundancy
I&M:I&M0…3
Fieldbus:multi-fieldbus
Protocols:PN IO, Ethernet IP, Modbus TCP
Degree of protection:IP67 / IP69K
Engineering Context
The module provides analog input and analog output functions within the SIMATIC ET 200eco PN family.
It supports shared device operation with 2 controllers and prioritized startup.
The module includes channel diagnostics for wire break and short-circuit and degree of protection IP67 / IP69K.
FAQ
1. What product family does 6ES7146-6HF00-0BB0 belong to?
SIMATIC ET 200eco PN.
2. What signal types are provided?
AI 6x U/I + AIQ 2x U/I.
3. What is the resolution?
16-bit resolution.
4. What diagnostics are available?
Channel diagnostics for wire break and short-circuit.
5. Which protocols are stated?
PN IO, Ethernet IP, and Modbus TCP.
