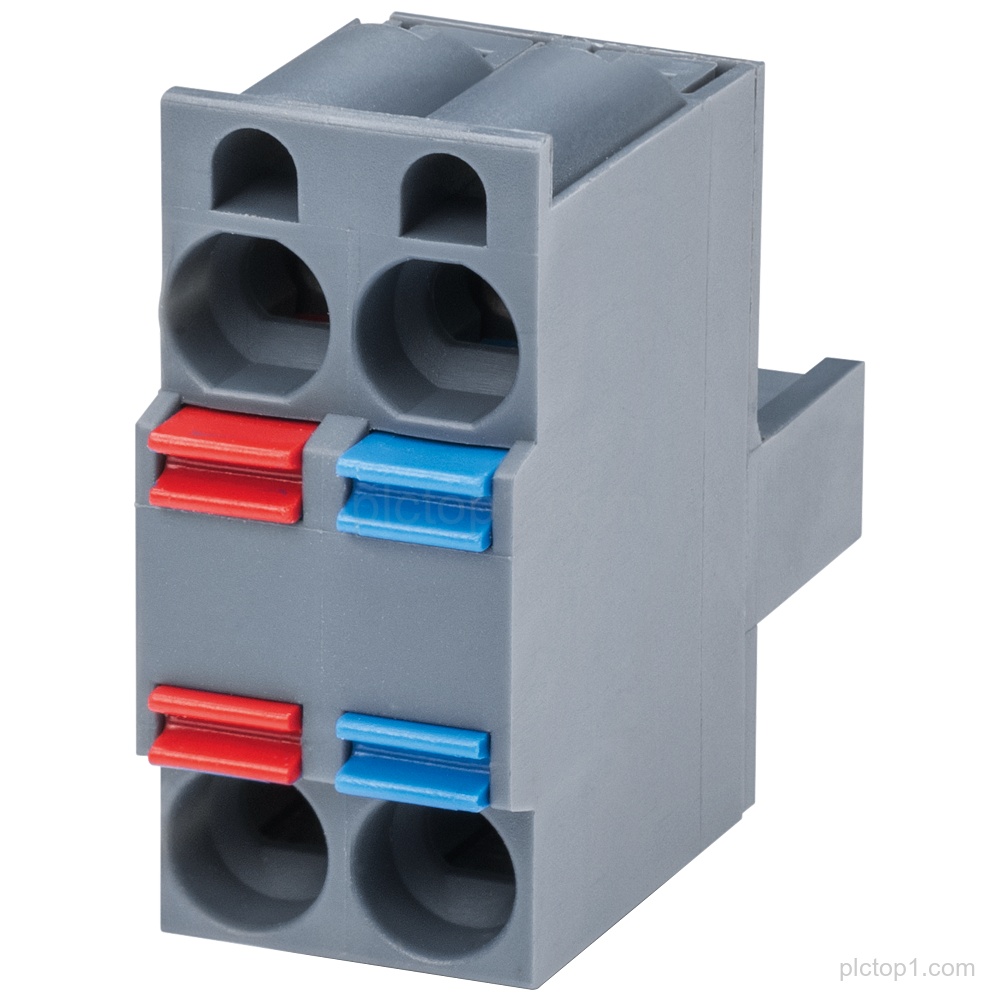

ET 200S/SP/BL/MB interface module plug, part number 6ES7193-4JB00-0AA0, is a socket with 2×2-pole configuration for use with ET 200S/SP/BL/MB interface module, S7-1500 CPU, KP32F, and PN-PN coupler. It uses 5.08 mm grid size cage clamp technology, is internally bridged, and is color-coded. Scope of supply: 10 plugs.
Detailed Parameters
Product type:plug, socket
Pole configuration:2×2-pole
System designation:ET 200S/SP/BL/MB interface module
Compatible designation:S7-1500 CPU, KP32F, PN-PN coupler
Grid size:5.08 mm
Technology:cage clamp technology
Connection feature:internally bridged
Color coding:color-coded
Scope of supply:10 plugs
Engineering Context
The product is intended for connection within the ET 200S/SP/BL/MB interface module context.
The listed designations include S7-1500 CPU, KP32F, and PN-PN coupler.
The plug uses 5.08 mm grid size cage clamp technology and is internally bridged.
FAQ
1. What is the part number of this plug?
6ES7193-4JB00-0AA0.
2. What is the pole configuration?
2×2-pole.
3. Which system designation is stated?
ET 200S/SP/BL/MB interface module.
4. What connection technology is specified?
Cage clamp technology.
5. What is included in the scope of supply?
10 plugs.
