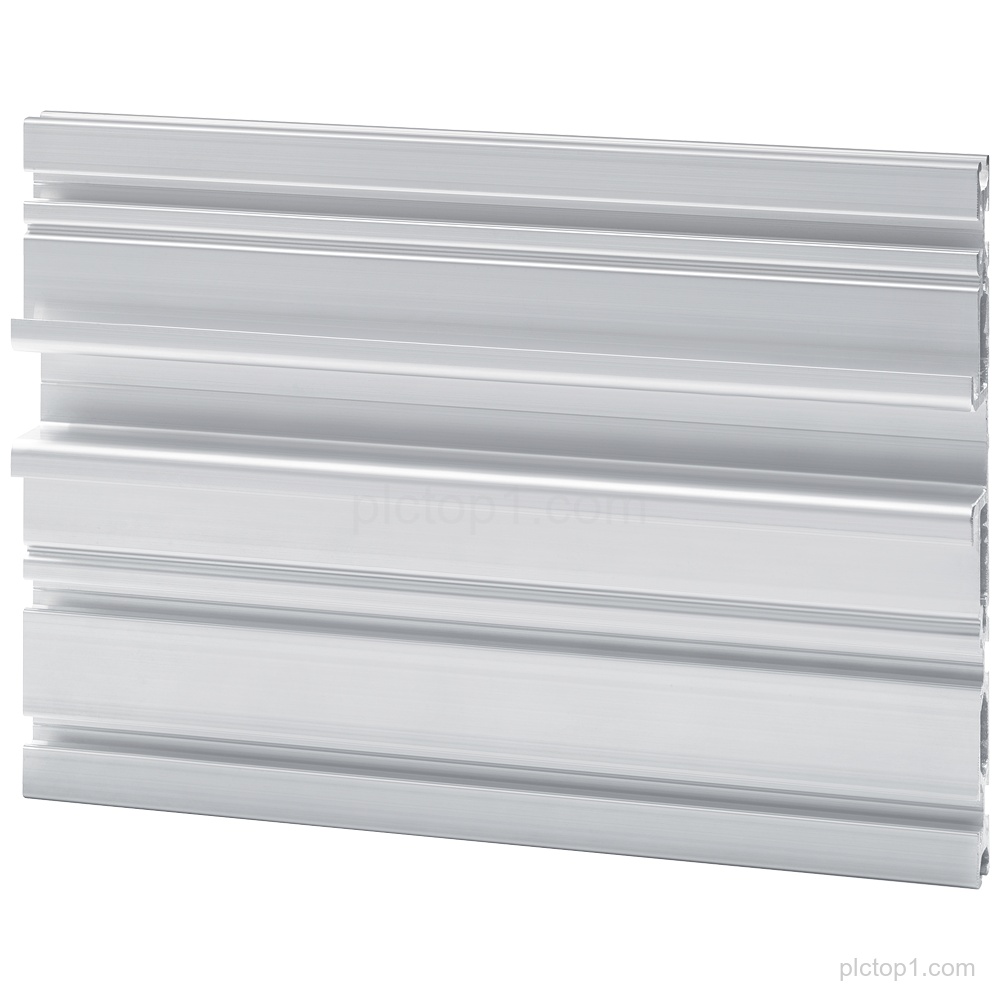

SIMATIC system rail B type for DIN mounting rail installation with a length of 2000 mm; part number 6ES7193-6MR00-0DA0.
Detailed Parameters
Length:2000 mm
DIN mounting rail:according to EN 60715 (35 × 7.5)
Profile grooves:6 mm
Type:B type
Engineering Context
The product provides a SIMATIC system rail for DIN mounting rail mounting according to EN 60715 (35 × 7.5).
The 2000 mm rail length and 6 mm profile grooves are specified for the B type system rail configuration.
FAQ
1. What is the length of the SIMATIC system rail?
The SIMATIC system rail length is 2000 mm.
2. Which DIN mounting rail standard and profile size is specified?
The DIN mounting rail is specified according to EN 60715 (35 × 7.5).
3. What type and profile groove width are specified?
The system rail is specified as B type with 6 mm profile grooves.
