Product information

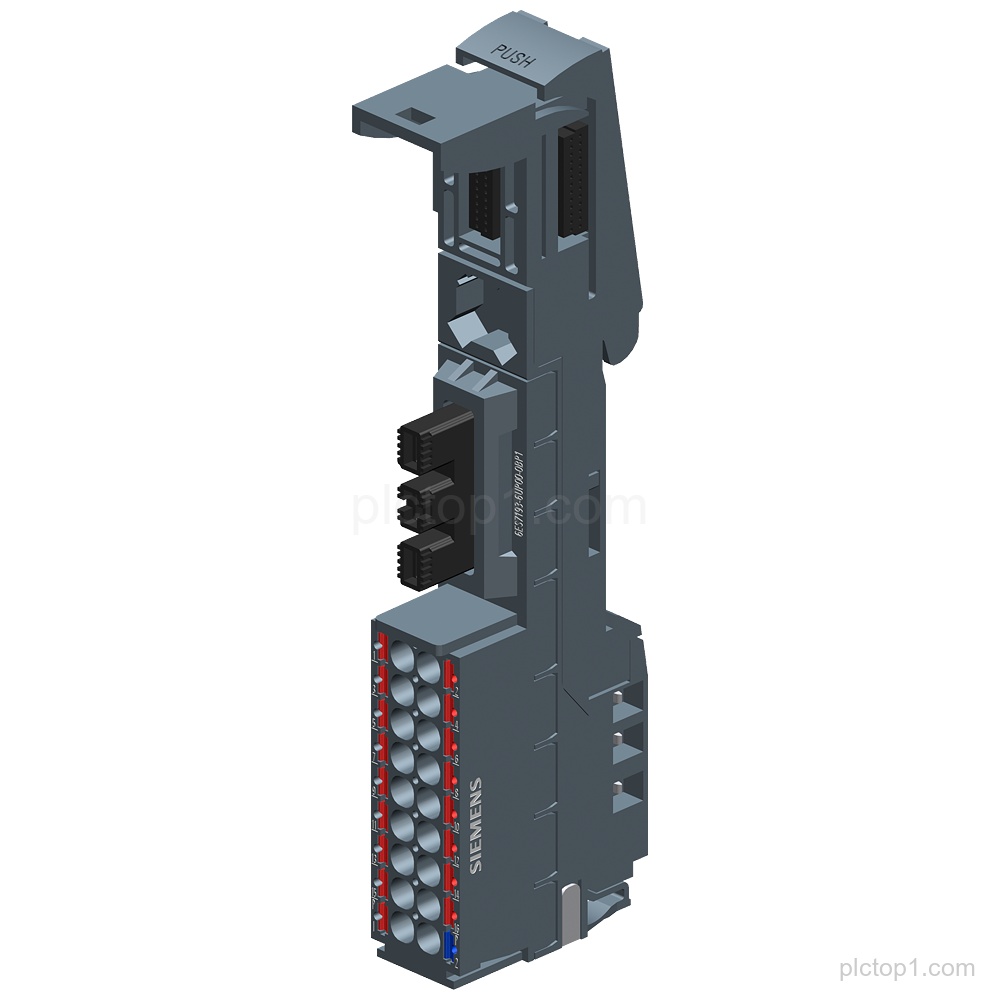

SIMATIC ET 200SP PotDis-BU Typ P1 potential distributor module, part number 6ES7193-6UP00-0BP1, provides P1- and P2-potential rails with Push-In terminals.
Detailed Parameters
Product family:SIMATIC ET 200SP
Module type:Potential distributor module
Base unit:PotDis-BaseUnit
Type:PotDis-BU Typ P1
Color:dark-colored
Potential distribution:17 x P1-potential, 1 x P2-potential
Terminals:Push-In terminals
Rail bridging:P1-, P2- and AUX-rail bridged to left BU
Packaging unit:1 Piece
Dimensions WxH:15mm x 117mm
Engineering Context
Use the SIMATIC ET 200SP PotDis-BU Typ P1 potential distributor module as a PotDis-BaseUnit for P1- and P2-potential distribution.
P1-, P2- and AUX-rail bridging to the left BU is configured as stated for this base unit.
Connect using Push-In terminals as provided for this potential distributor module.
FAQ
1. What is the function of 6ES7193-6UP00-0BP1?
It is a SIMATIC ET 200SP potential distributor module (PotDis-BaseUnit) for distributing potentials.
2. Which potentials and how many channels are provided by PotDis-BU Typ P1?
It provides 17 x P1-potential and 1 x P2-potential.
3. What connection type does PotDis-BU Typ P1 use?
It uses Push-In terminals.
4. How are P1-, P2- and AUX-rails configured on this base unit?
P1-, P2- and AUX-rail are bridged to left BU.
5. What is the packaging unit quantity and dimensions for 6ES7193-6UP00-0BP1?
Packaging Unit: 1 Piece; WxH: 15mm x 117mm.
