Product information

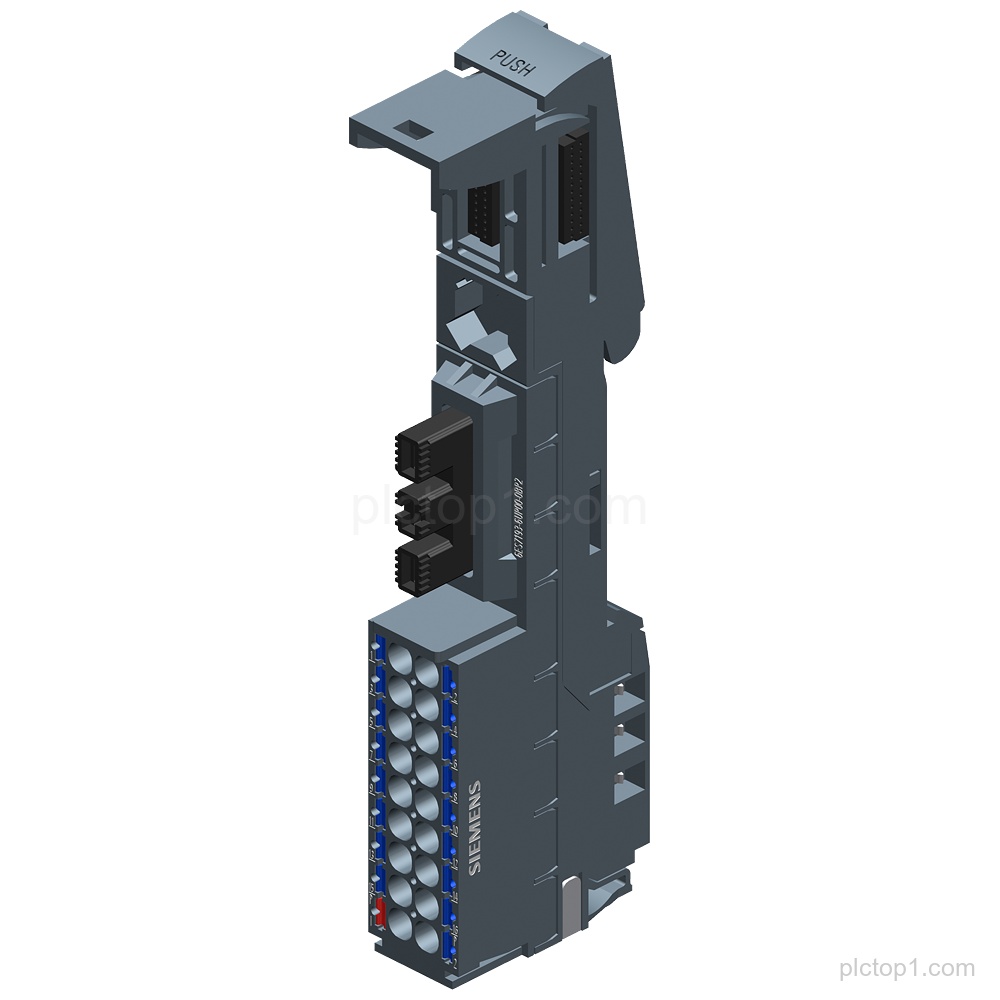

SIMATIC ET 200SP Potential distributor module PotDis-BaseUnit PotDis-BU Typ P2, part number 6ES7193-6UP00-0BP2, provides P1- and P2-potential rails and uses Push-In terminals.
Detailed Parameters
Product family:SIMATIC ET 200SP
Module type:Potential distributor module
Base unit designation:PotDis-BaseUnit PotDis-BU Typ P2
Color:dark-colored
Potential channels:1 x P1-potential, 17 x P2-potential
Terminals:Push-In terminals
Rail bridging:P1-, P2- and AUX-rail bridged to left BU
Packaging unit:1 Piece
Dimensions (W x H):15mm x 117mm
Engineering Context
The Potential distributor module PotDis-BaseUnit PotDis-BU Typ P2 supports P1- and P2-potential distribution with specified channel counts.
The P1-, P2- and AUX-rail bridging to the left BU defines the rail connection arrangement for this base unit.
Push-In terminals are used for wiring the potential distribution connections.
FAQ
1. What product family and module type is 6ES7193-6UP00-0BP2?
6ES7193-6UP00-0BP2 is a SIMATIC ET 200SP Potential distributor module (PotDis-BaseUnit PotDis-BU Typ P2).
2. How many P1- and P2-potential channels are available?
It provides 1 x P1-potential and 17 x P2-potential.
3. What terminal type does PotDis-BU Typ P2 use?
It uses Push-In terminals.
4. Which rails are bridged and to which base unit side?
P1-, P2- and AUX-rail are bridged to the left BU.
5. What are the provided dimensions and packaging unit?
Packaging Unit is 1 Piece and dimensions (W x H) are 15mm x 117mm.
