Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

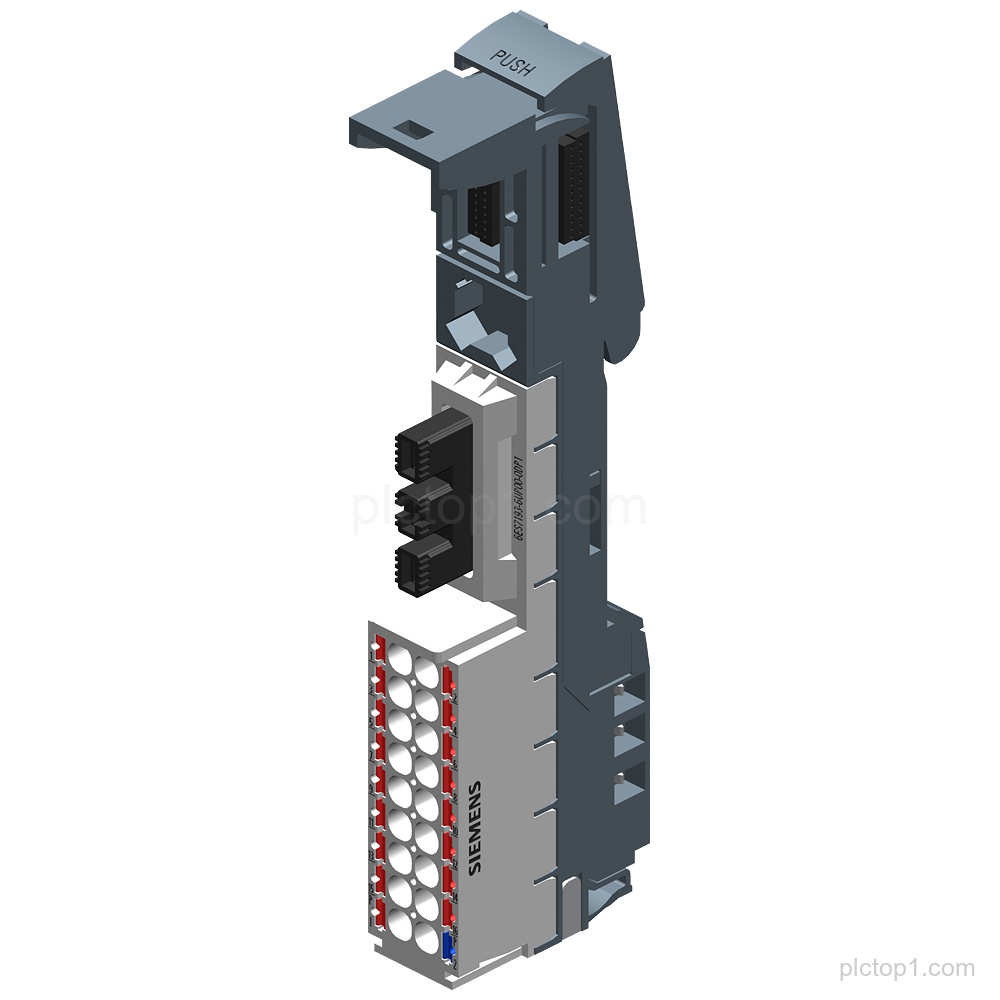

SIMATIC ET 200SP Potential distributor module PotDis-BU Typ P1 (part number 6ES7193-6UP00-0DP1) provides a light-colored base unit with 17 x P1-potential and 1 x P2-potential and push-in terminals.
Detailed Parameters
Product family/system:SIMATIC ET 200SP
Module type:Potential distributor module
Base unit type:PotDis-BU Typ P1
Potentials:17 x P1-potential; 1 x P2-potential
Terminals:Push-In terminals
Rail configuration:P1-, P2- and AUX-rail diconnected from left BU
Color:light-colored
Packaging unit:1 Piece
Dimensions (W x H):15mm x 117mm
Engineering Context
The Potential distributor module PotDis-BU Typ P1 in SIMATIC ET 200SP is configured for 17 x P1-potential and 1 x P2-potential.
Push-In terminals are provided for connecting the potentials on the PotDis base unit.
P1-, P2- and AUX-rail are disconnected from the left BU as specified for this base unit type.
FAQ
1. What Siemens product family and module type does 6ES7193-6UP00-0DP1 belong to?
It belongs to SIMATIC ET 200SP and is a Potential distributor module.
2. Which base unit type is used for this module?
PotDis-BU Typ P1.
3. How many P1 and P2 potentials are provided?
17 x P1-potential and 1 x P2-potential.
4. What terminal type is specified?
Push-In terminals.
5. How are the rails configured for the left BU?
P1-, P2- and AUX-rail are diconnected from left BU.
6. What are the provided dimensions and packaging quantity?
WxH: 15mm x 117mm; Packaging Unit: 1 Piece.
