Product information

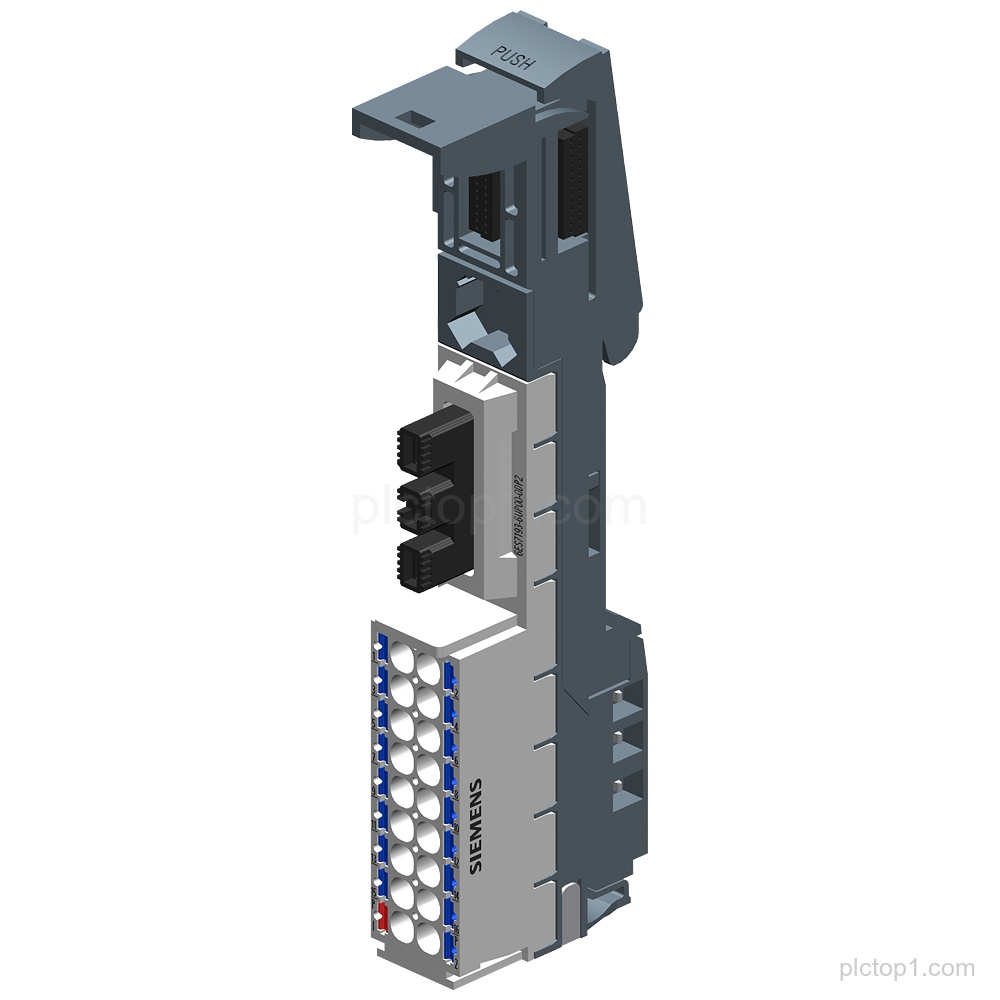

SIMATIC ET 200SP Potential distributor module PotDis-BaseUnit PotDis-BU Typ P2, part number 6ES7193-6UP00-0DP2, provides 1 x P1-potential and 17 x P2-potential with Push-In terminals.
Detailed Parameters
Product family:SIMATIC ET 200SP
Product designation:Potential distributor module
Module type:PotDis-BaseUnit PotDis-BU Typ P2
Color:light-colored
Potential channels:1 x P1-potential, 17 x P2-potential
Terminal type:Push-In terminals
Rail disconnection:P1-, P2- and AUX-rail diconnected from left BU
Packaging unit:1 Piece
Width:15 mm
Height:117 mm
Engineering Context
The Potential distributor module PotDis-BU Typ P2 distributes P1- and P2-potential channels for SIMATIC ET 200SP system configuration.
The P1-, P2- and AUX-rail are diconnected from the left BU as specified for this base unit type.
Push-In terminals are provided for connection within the PotDis-BaseUnit PotDis-BU Typ P2.
FAQ
1. What is the Siemens designation for 6ES7193-6UP00-0DP2?
SIMATIC ET 200SP, Potential distributor module; PotDis-BaseUnit PotDis-BU Typ P2.
2. How many potential channels does PotDis-BU Typ P2 provide?
It provides 1 x P1-potential and 17 x P2-potential.
3. Which terminal type is used on the module?
Push-In terminals.
4. How are the P1-, P2- and AUX-rails disconnected for this base unit?
P1-, P2- and AUX-rail diconnected from left BU.
5. What are the packaging unit and dimensions for 6ES7193-6UP00-0DP2?
Packaging Unit: 1 Piece; WxH: 15 mm x 117 mm.
