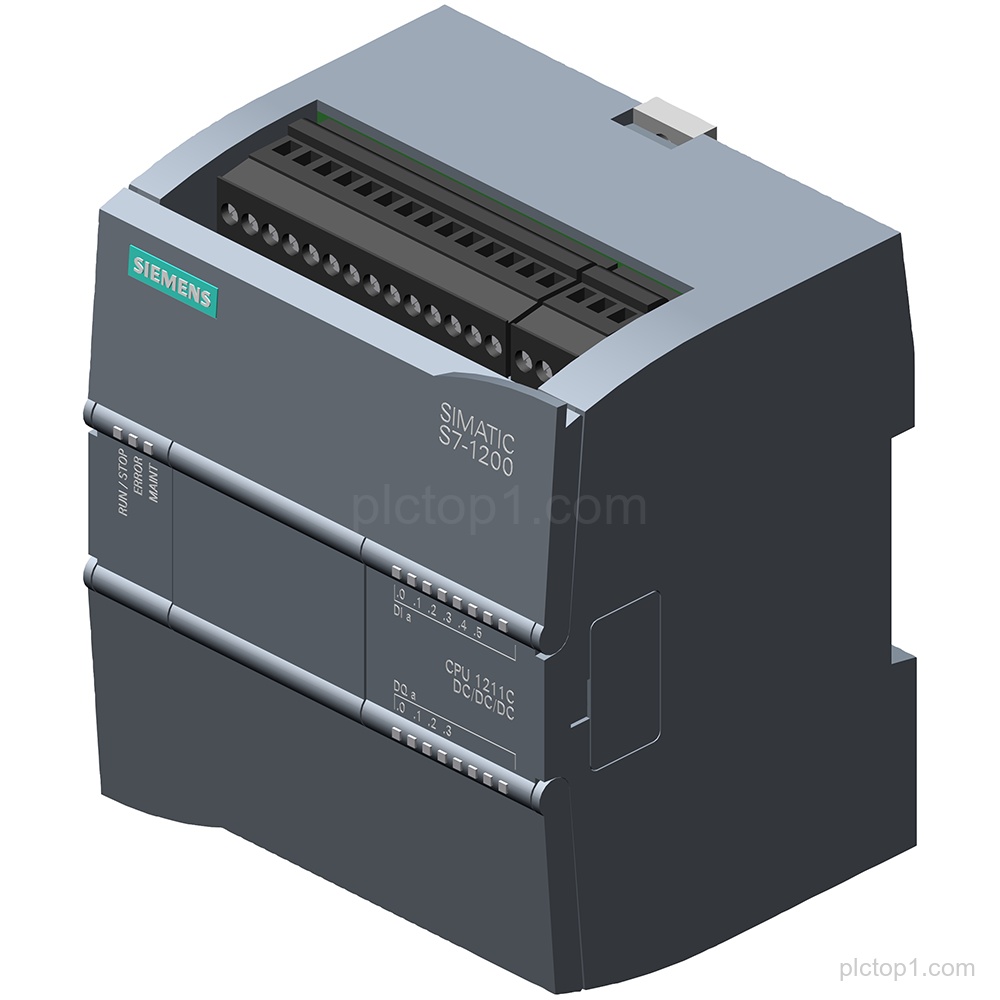

SIMATIC S7-1200 CPU 1211C (Part No. 6ES7211-1AE31-0XB0) is a compact CPU with onboard I/O for DC input/output and analog input.
Detailed Parameters
Product family:SIMATIC S7-1200
CPU designation:CPU 1211C
CPU type:compact CPU
Power supply:DC
Power supply mode:DC/DC/DC
Onboard DI:6 DI 24 V DC
Onboard DO:4 DO 24 V DC
Onboard AI:2 AI 0-10 V DC
Power supply voltage:DC 20.4-28.8V DC
Program/data memory:30 KB
Engineering Context
CPU 1211C in the SIMATIC S7-1200 compact CPU class integrates digital and analog onboard I/O.
The CPU 1211C provides 6 DI for 24 V DC input, 4 DO for 24 V DC output, and 2 AI for 0-10 V DC.
The CPU 1211C is designed for DC supply operation in the range DC 20.4-28.8V DC.
FAQ
1. What CPU model corresponds to part number 6ES7211-1AE31-0XB0?
6ES7211-1AE31-0XB0 corresponds to SIMATIC S7-1200 CPU 1211C.
2. Is CPU 1211C a compact CPU?
Yes, CPU 1211C is specified as a compact CPU.
3. What onboard I/O channels are available on CPU 1211C?
CPU 1211C provides onboard I/O: 6 DI 24 V DC, 4 DO 24 V DC, and 2 AI 0-10 V DC.
4. What is the power supply type and voltage range for CPU 1211C?
CPU 1211C uses DC power supply with DC/DC/DC and a voltage range of DC 20.4-28.8V DC.
5. How much program/data memory is specified for CPU 1211C?
Program/data memory is specified as 30 KB.
