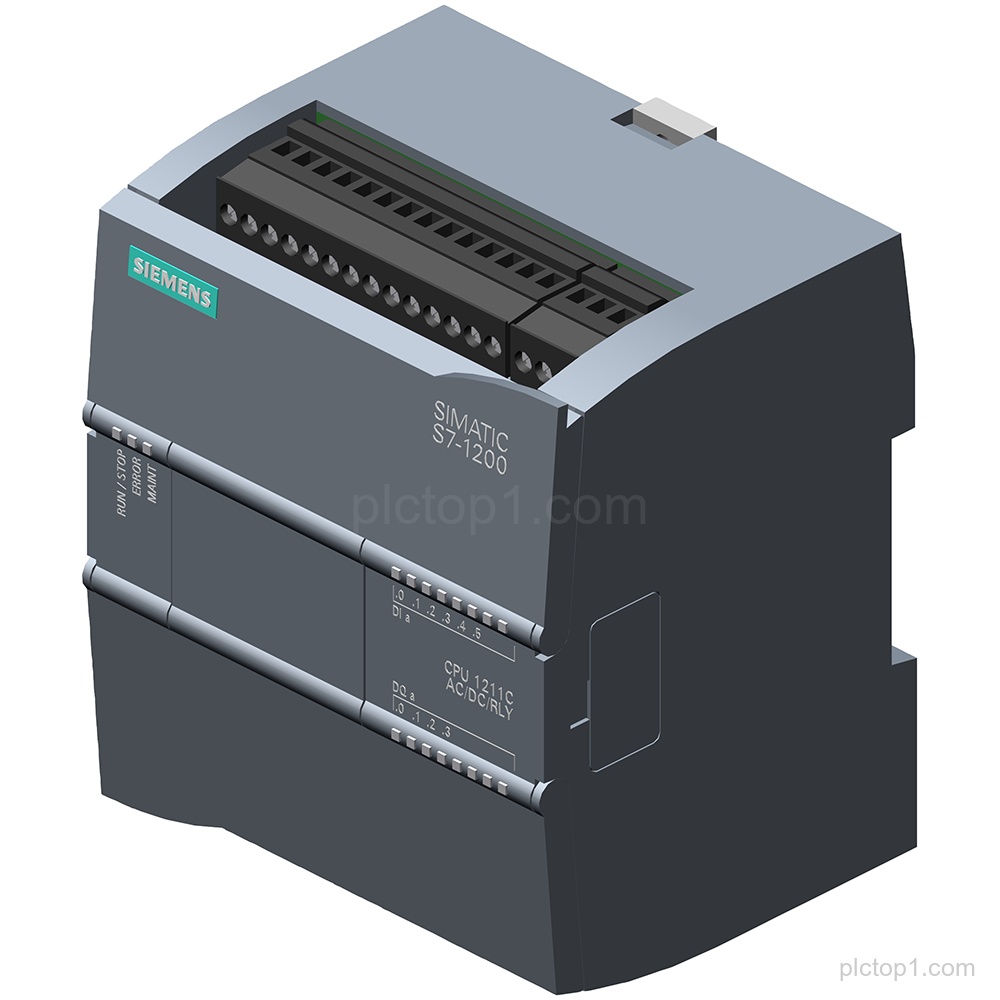

SIMATIC S7-1200 CPU 1211C compact CPU AC/DC/relay (Part number: 6ES7211-1BE31-0XB0) provides onboard DI, DO, and AI, and includes program/data memory.
Detailed Parameters
Onboard DI:6 DI 24 V DC
Onboard DO:4 DO relay 2A
Onboard AI:2 AI 0-10 V DC
Power supply:AC 85-264 V AC at 47-63 Hz
Program/data memory:30 KB
Engineering Context
CPU 1211C is a SIMATIC S7-1200 compact CPU with AC/DC/relay design and integrated onboard I/O.
The onboard I/O includes 6 DI at 24 V DC, 4 DO implemented as relay outputs rated 2A, and 2 AI for 0-10 V DC signals.
The CPU operates with an AC power supply of 85-264 V AC at 47-63 Hz and provides 30 KB program/data memory.
FAQ
1. Which Siemens product family and CPU designation is provided by part number 6ES7211-1BE31-0XB0?
6ES7211-1BE31-0XB0 is a SIMATIC S7-1200 CPU 1211C compact CPU.
2. What onboard I/O types and channel counts are included?
The CPU provides onboard I/O: 6 DI 24 V DC, 4 DO relay 2A, and 2 AI 0-10 V DC.
3. What is the power supply requirement?
The power supply is AC 85-264 V AC at 47-63 Hz.
4. How much program/data memory is specified?
The specified program/data memory is 30 KB.
