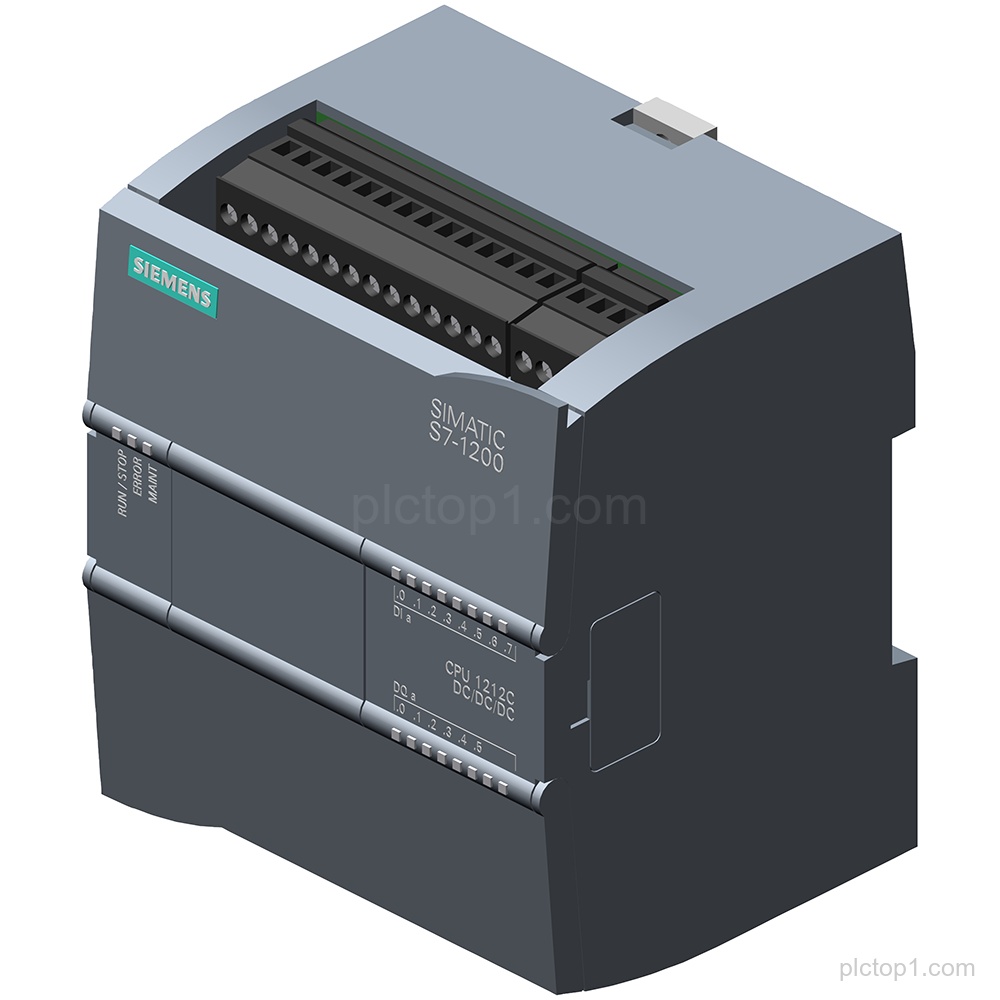

SIMATIC S7-1200 CPU 1212C (Part number 6ES7212-1AE31-0XB0) is a compact CPU with DC/DC/DC design, onboard I/O, and specified power supply range and memory capacity.
Detailed Parameters
CPU family:SIMATIC S7-1200
CPU type:CPU 1212C
Design:compact CPU
Design (power):DC/DC/DC
Onboard I/O – DI:8 DI 24 V DC
Onboard I/O – DO:6 DO 24 V DC
Onboard I/O – AI:2 AI 0-10 V DC
Power supply:DC 20.4-28.8V DC
Program/data memory:50 KB
Engineering Context
CPU 1212C is part of the SIMATIC S7-1200 compact CPU family with DC/DC/DC design.
The compact CPU provides onboard digital inputs and outputs as well as analog inputs as specified.
The CPU operates with a specified DC power supply range and includes program/data memory capacity.
FAQ
1. What CPU family and type does the 6ES7212-1AE31-0XB0 belong to?
It is SIMATIC S7-1200 CPU 1212C.
2. Is CPU 1212C designed as a compact CPU?
Yes, it is a compact CPU.
3. What onboard I/O quantities and signal types are available?
Onboard I/O: 8 DI 24 V DC, 6 DO 24 V DC, and 2 AI 0-10 V DC.
4. What is the power supply range for 6ES7212-1AE31-0XB0?
DC 20.4-28.8V DC.
5. What program/data memory capacity is specified?
Program/data memory: 50 KB.
6. What does the DC/DC/DC design designation indicate for this CPU?
The CPU is specified with design DC/DC/DC.
