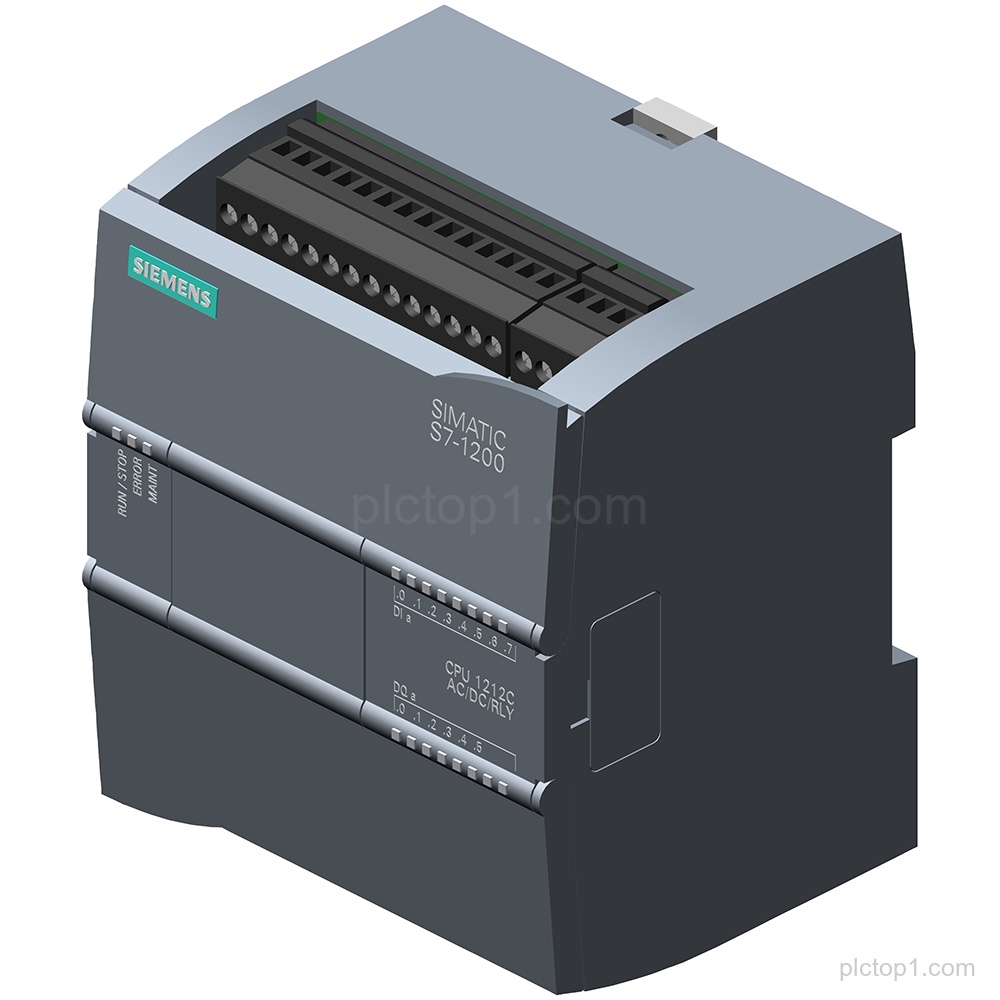

SIMATIC S7-1200 CPU 1212C compact CPU AC/DC/relay with onboard I/O and program/data memory 50 KB for part number 6ES7212-1BE31-0XB0.
Detailed Parameters
Product family:SIMATIC S7-1200
CPU designation:CPU 1212C
Design:compact CPU
CPU type:AC/DC/relay
Onboard I/O – DI:8 DI 24 V DC
Onboard I/O – DO:6 DO relay 2 A
Onboard I/O – AI:2 AI 0-10 V DC
Power supply:AC 85-264 V AC at 47-63 Hz
Program/data memory:50 KB
Engineering Context
Use SIMATIC S7-1200 CPU 1212C compact CPU AC/DC/relay with onboard I/O for 8 DI 24 V DC, 6 DO relay 2 A, and 2 AI 0-10 V DC.
The CPU 1212C is supplied with AC 85-264 V AC at 47-63 Hz and provides program/data memory of 50 KB.
Onboard switching output is provided as 6 DO in relay form with 2 A.
FAQ
1. Which SIMATIC product family does 6ES7212-1BE31-0XB0 belong to?
6ES7212-1BE31-0XB0 belongs to SIMATIC S7-1200.
2. What is the CPU designation and design for 6ES7212-1BE31-0XB0?
It is CPU 1212C and is designed as a compact CPU.
3. What onboard input/output signals are available?
Onboard I/O includes 8 DI 24 V DC, 6 DO relay 2 A, and 2 AI 0-10 V DC.
4. What power supply range is specified for this CPU?
The power supply is AC 85-264 V AC at 47-63 Hz.
5. What program/data memory is specified for 6ES7212-1BE31-0XB0?
Program/data memory is specified as 50 KB.
