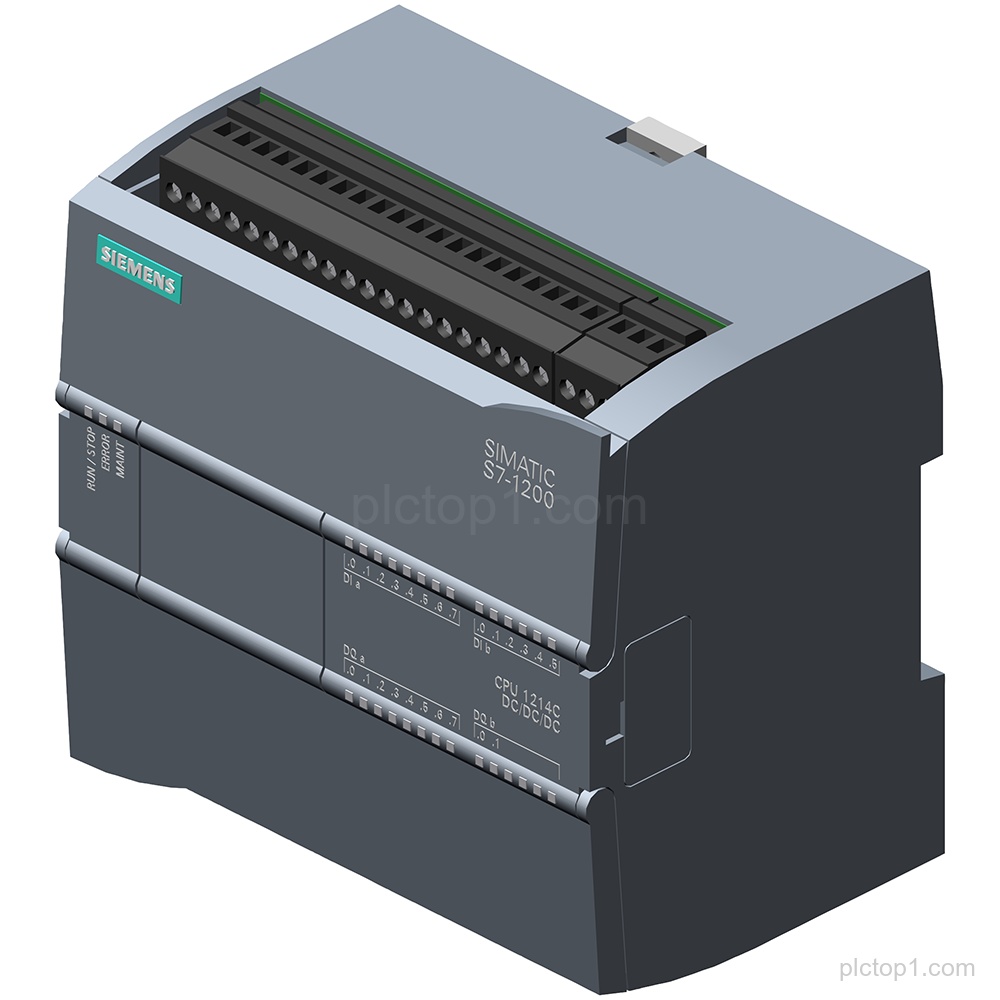

SIMATIC S7-1200 CPU 1214C compact CPU (Part Number: 6ES7214-1AG31-0XB0) provides an integrated DC/DC/DC power supply and onboard I/O: 14 DI 24 V DC, 10 DO 24 V DC, and 2 AI 0-10 V DC.
Detailed Parameters
Product family:SIMATIC S7-1200
CPU:CPU 1214C
CPU type:compact CPU
Power supply:DC 20.4-28.8V DC
Power supply design:DC/DC/DC
Onboard I/O – DI:14 DI 24 V DC
Onboard I/O – DO:10 DO 24 V DC
Onboard I/O – AI:2 AI 0-10 V DC
Program/data memory:75 KB
Engineering Context
CPU 1214C is a SIMATIC S7-1200 compact CPU with onboard I/O configured for DI, DO, and AI signals.
The CPU supports a DC power supply range of DC 20.4-28.8V DC with DC/DC/DC design.
The CPU 1214C provides 75 KB program/data memory.
FAQ
1. What is the product family and CPU designation for 6ES7214-1AG31-0XB0?
The product is SIMATIC S7-1200 with CPU 1214C (compact CPU).
2. How many onboard digital inputs and what signal type are available on CPU 1214C?
CPU 1214C provides onboard I/O: 14 DI 24 V DC.
3. How many onboard digital outputs and what signal type are available on CPU 1214C?
CPU 1214C provides onboard I/O: 10 DO 24 V DC.
4. What analog input range is provided by the onboard AI on CPU 1214C?
CPU 1214C provides onboard I/O: 2 AI 0-10 V DC.
5. What power supply input range is specified for CPU 1214C?
CPU 1214C specifies a power supply of DC 20.4-28.8V DC.
6. What is the program/data memory size for CPU 1214C?
CPU 1214C has program/data memory of 75 KB.
