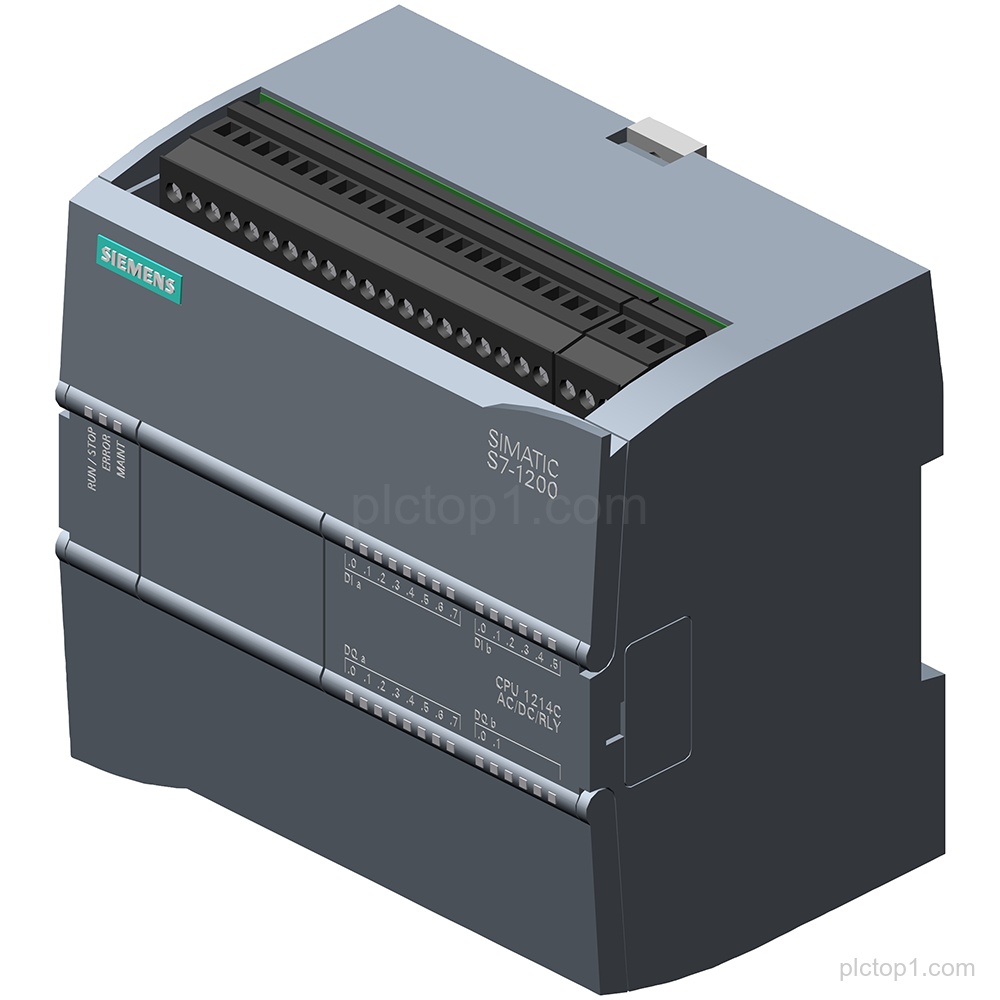

SIMATIC S7-1200 CPU 1214C compact CPU (Part No. 6ES7214-1BG31-0XB0) combines onboard digital and analog I/O with an integrated program/data memory and AC power supply.
Detailed Parameters
Product family:SIMATIC S7-1200
CPU:CPU 1214C
CPU type:compact CPU
Mode / supply designation:AC/DC/relay
Onboard DI:14 DI 24 V DC
Onboard DO:10 DO relay 2 A
Onboard AI:2 AI 0-10 V DC
Power supply:AC 85-264 V AC at 47-63 Hz
Program/data memory:75 KB
Engineering Context
The SIMATIC S7-1200 CPU 1214C compact CPU provides onboard 24 V DC digital inputs (14 DI) and relay outputs (10 DO).
The onboard analog input section includes 2 AI for 0-10 V DC signals.
System configuration should align with the specified AC power supply range for the CPU.
FAQ
1. What is the product family and CPU designation for 6ES7214-1BG31-0XB0?
The product family is SIMATIC S7-1200 and the CPU designation is CPU 1214C.
2. What type of CPU is CPU 1214C in this configuration?
It is a compact CPU.
3. What onboard I/O is available on CPU 1214C (6ES7214-1BG31-0XB0)?
Onboard I/O includes 14 DI 24 V DC, 10 DO relay 2 A, and 2 AI 0-10 V DC.
4. What is the power supply requirement for this CPU?
The power supply is AC 85-264 V AC at 47-63 Hz.
5. How much program/data memory does CPU 1214C provide here?
Program/data memory is 75 KB.
