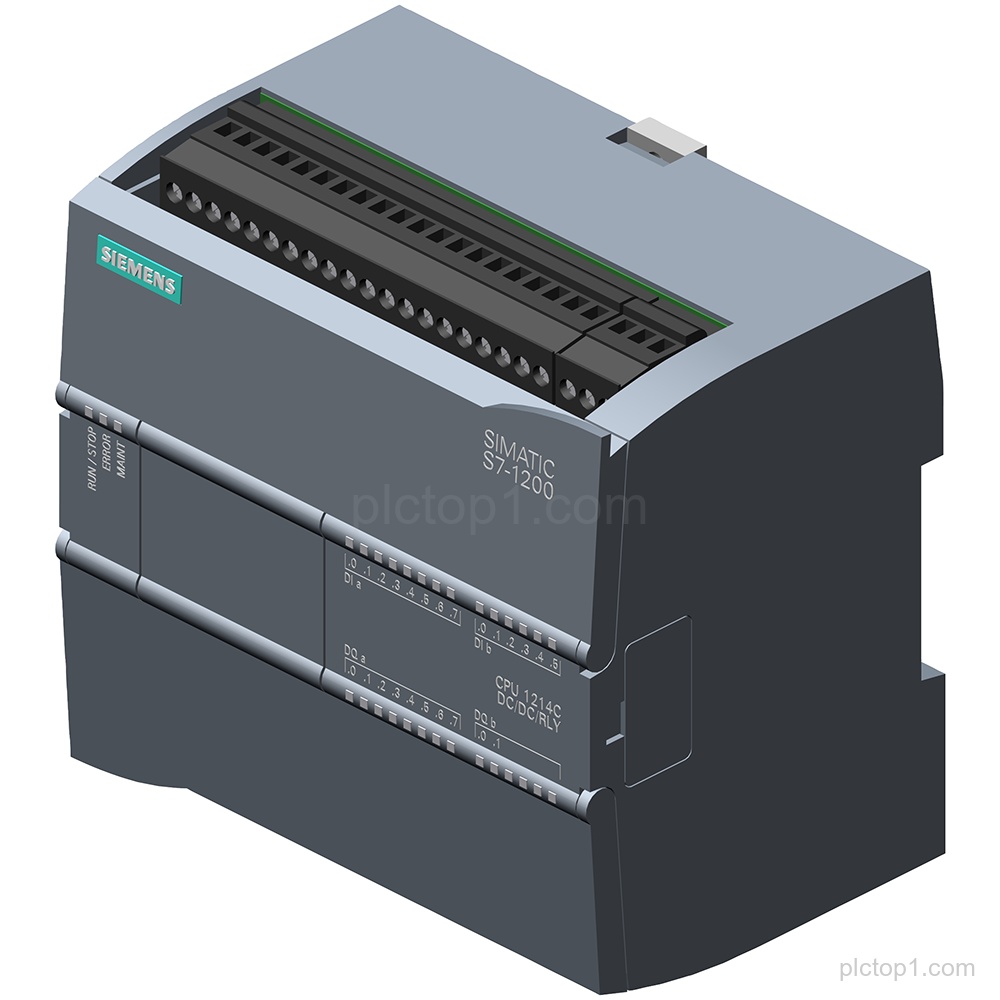

SIMATIC S7-1200 CPU 1214C compact CPU (part number 6ES7214-1HG31-0XB0) provides onboard I/O for the listed DI, DO, and AI signals with the specified program/data memory and power supply range.
Detailed Parameters
Product type:compact CPU
Technology:DC/DC/relay
Onboard I/O:14 DI 24 V DC; 10 DO relay 2 A; 2 AI 0-10 V DC
Power supply:AC 20.4-28.8 V DC
Program/data memory:75 KB
Engineering Context
The SIMATIC S7-1200 CPU 1214C compact CPU provides onboard DI 24 V DC, DO relay 2 A, and AI 0-10 V DC signals.
The DC/DC/relay design defines the onboard I/O implementation for the specified digital and analog signal types.
The listed power supply range and 75 KB program/data memory are configured as provided for the CPU 1214C.
FAQ
1. Which product family and designation does 6ES7214-1HG31-0XB0 belong to?
6ES7214-1HG31-0XB0 is for SIMATIC S7-1200 CPU 1214C.
2. Is the CPU 1214C a compact CPU?
Yes, CPU 1214C is described as a compact CPU.
3. What onboard I/O signals are available on CPU 1214C?
Onboard I/O: 14 DI 24 V DC; 10 DO relay 2 A; 2 AI 0-10 V DC.
4. What is the power supply range for CPU 1214C?
Power supply: AC 20.4-28.8 V DC.
5. What is the program/data memory size?
Program/data memory: 75 KB.
6. What does DC/DC/relay refer to for this CPU?
The product information specifies the CPU technology as DC/DC/relay.
