Product information

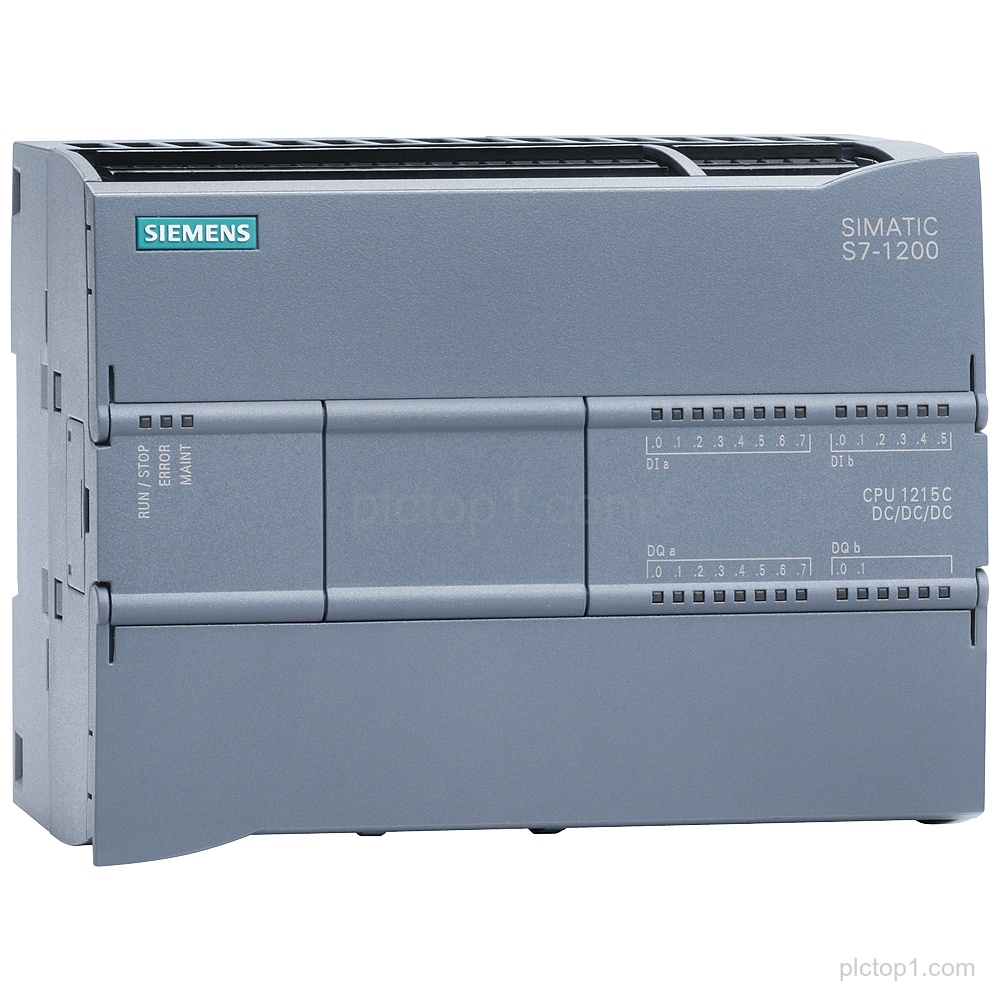

SIMATIC S7-1200 CPU 1215C compact CPU (Part number: 6ES7215-1HG31-0XB0) provides onboard I/O and two PROFINET ports for use in SIMATIC S7-1200 system configurations.
Detailed Parameters
Product family:SIMATIC S7-1200
CPU type:CPU 1215C
Design:compact CPU
CPU technology:DC/DC/relay
PROFINET ports:2
Onboard I/O – DI:14 DI 24 V DC
Onboard I/O – DO:10 DO relay 2 A
Onboard I/O – AI:2 AI 0-10 V DC
Onboard I/O – AO:2 AO 0-20 mA DC
Power supply:DC 20.4-28.8V DC
Program/data memory:100 KB
Engineering Context
The compact CPU CPU 1215C is designed as a SIMATIC S7-1200 control unit with integrated DC/DC/relay technology.
The CPU supports two PROFINET ports and provides onboard I/O for digital and analog signal processing.
Onboard I/O includes 24 V DC digital inputs, relay digital outputs, and analog inputs and outputs with specified ranges.
FAQ
1. What product family and CPU designation does 6ES7215-1HG31-0XB0 belong to?
6ES7215-1HG31-0XB0 is part of SIMATIC S7-1200 and is designated as CPU 1215C.
2. How many PROFINET ports are available on CPU 1215C?
CPU 1215C provides 2 PROFINET ports.
3. What onboard digital input and output types are included?
The onboard I/O includes 14 DI 24 V DC and 10 DO relay 2 A.
4. What onboard analog input and output ranges are specified?
The onboard I/O includes 2 AI 0-10 V DC and 2 AO 0-20 mA DC.
5. What power supply range is specified for this CPU?
The power supply is DC 20.4-28.8V DC.
6. What is the program/data memory capacity?
The program/data memory is 100 KB.
