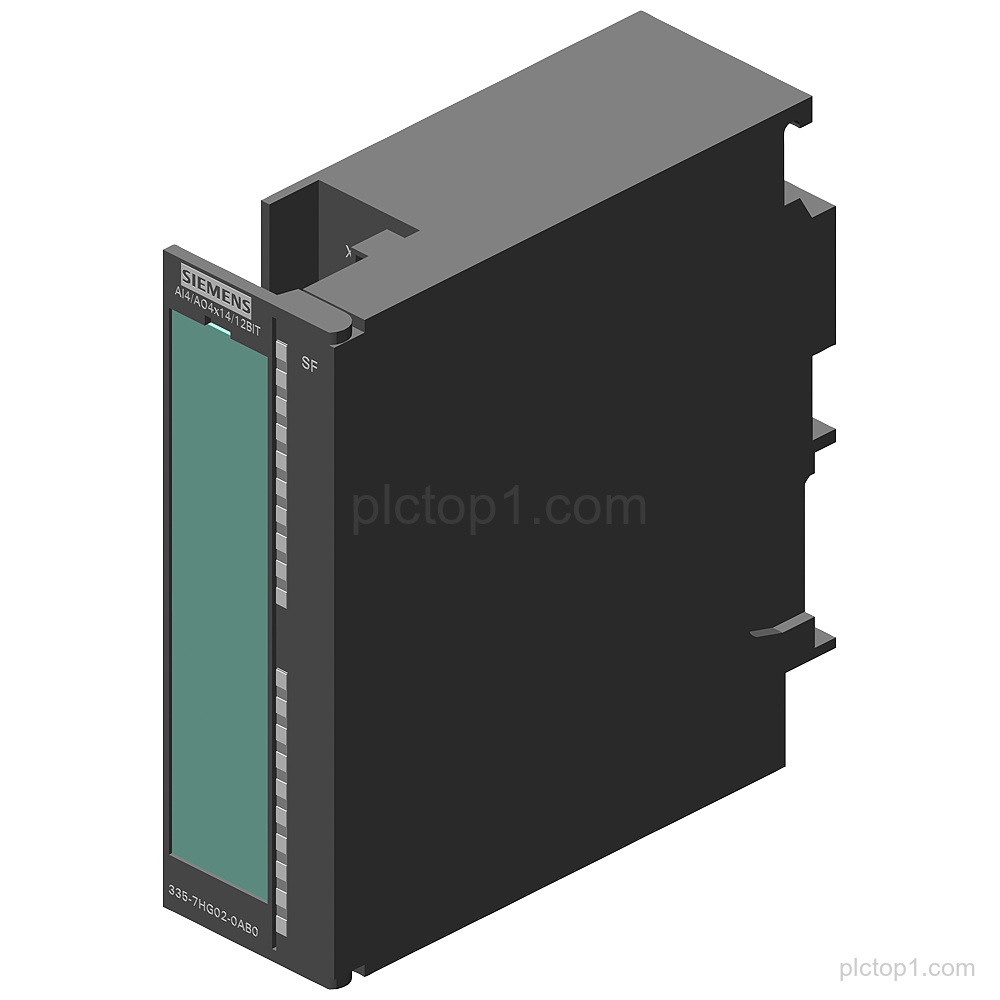

SIMATIC S7-300 analog module SM 335 provides isolated U/I measurement with alarm and diagnostics for 4 AI and 4 AO channels; part number 6ES7335-7HG02-0AB0.
Detailed Parameters
Product family:SIMATIC S7-300
Module:SM 335
Module type:Analog module
Input type:isolated U/I
Alarm:alarm
Diagnostics:diagnostics
Number of analog inputs (AI):4
AI resolution:14 bit
Number of analog outputs (AO):4
AO resolution:11/12 bit
Channel configuration:1x 20-pole
Engineering Context
The SIMATIC S7-300 SM 335 is an analog module designed for isolated U/I signal processing with alarm and diagnostics.
The module supports 4 analog inputs (AI) with 14 bit resolution and 4 analog outputs (AO) with 11/12 bit resolution.
The module connection configuration is 1x 20-pole.
FAQ
1. What product family and module designation does 6ES7335-7HG02-0AB0 belong to?
6ES7335-7HG02-0AB0 is a SIMATIC S7-300 analog module designated as SM 335.
2. What input type does SM 335 provide?
SM 335 provides isolated U/I.
3. How many analog input (AI) and analog output (AO) channels are provided?
It provides 4 AI and 4 AO channels.
4. What are the stated resolution values for AI and AO?
AI resolution is 14 bit and AO resolution is 11/12 bit.
5. Does the module include alarm and diagnostics?
Yes, it includes alarm and diagnostics.
6. What is the stated connector configuration for this module?
It is stated as 1x 20-pole.
