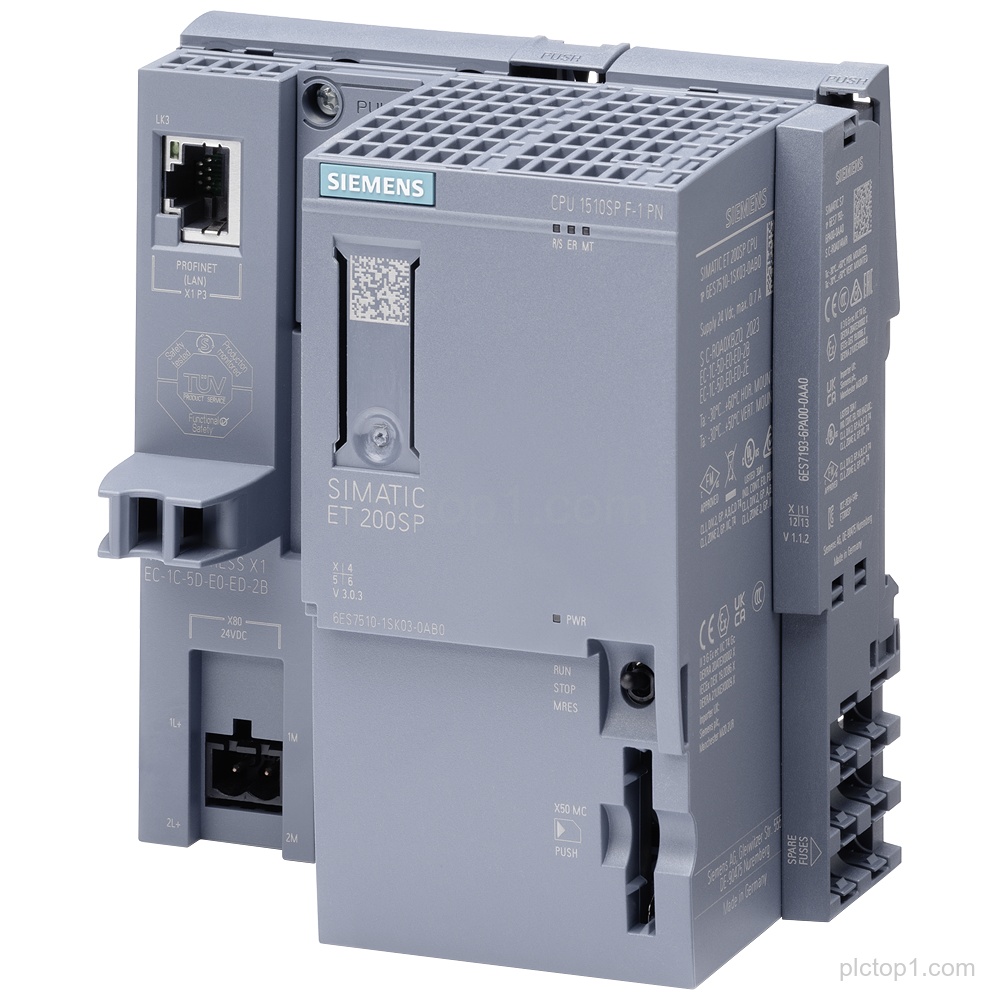

SIMATIC DP SIMATIC CPU 1510SP F-1 PN for ET 200SP, part number 6ES7510-1SK03-0AB0, provides a central processing unit with defined work memory and data memory and a PROFINET IRT interface with 3-port switch.
Detailed Parameters
Product family:SIMATIC DP
Application:for ET 200SP
Central processing unit:CPU 1510SP F-1 PN
Work memory for program:300 KB
Data memory:1 MB
1st interface:PROFINET IRT
Interface feature:with 3-port switch
Bit performance:6 ns
Including server module:6ES7193-6PA00-0AA0
Required:SIMATIC Memory Card
Required for port 1 and 2:BusAdapter
Engineering Context
The CPU 1510SP F-1 PN is designed as a central processing unit within SIMATIC DP for ET 200SP.
The module provides a 1st interface using PROFINET IRT with a 3-port switch.
The supplied configuration includes the server module 6ES7193-6PA00-0AA0 and requires a SIMATIC Memory Card, with a BusAdapter required for port 1 and port 2.
FAQ
1. What is the SIMATIC DP CPU designation for part number 6ES7510-1SK03-0AB0?
The designation is CPU 1510SP F-1 PN for ET 200SP.
2. What memory is available for program and data on the CPU?
It provides 300 KB work memory for program and 1 MB for data.
3. Which interface is provided as the 1st interface and what switch feature is included?
The 1st interface is PROFINET IRT with a 3-port switch.
4. What bit performance is specified?
The specified bit performance is 6 ns.
5. Which server module is included with the CPU?
The CPU includes server module 6ES7193-6PA00-0AA0.
6. What additional components are required for operation?
A SIMATIC Memory Card is required, and a BusAdapter is required for port 1 and port 2.
