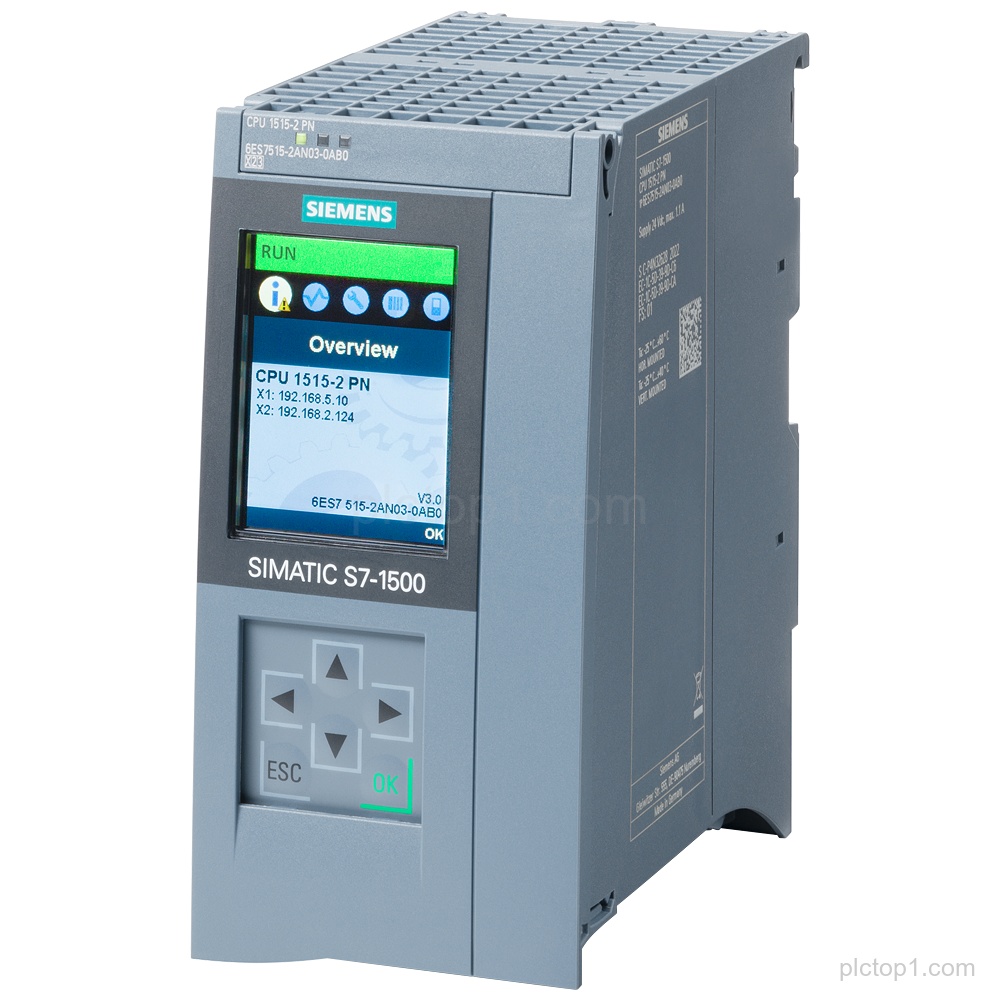

SIMATIC S7-1500 CPU 1515-2 PN central processing unit with part number 6ES7515-2AN03-0AB0, featuring 1st interface PROFINET IRT with 2-port switch and 2nd interface PROFINET RT, and requiring SIMATIC Memory Card.
Detailed Parameters
Work memory (for program):1 MB
Work memory (for data):4.5 MB
1st interface:PROFINET IRT with 2-port switch
2nd interface:PROFINET RT
Bit performance:6 ns
SIMATIC Memory Card:required
Engineering Context
CPU 1515-2 PN is a central processing unit within the SIMATIC S7-1500 system.
The CPU provides PROFINET IRT with 2-port switch as the 1st interface and PROFINET RT as the 2nd interface.
The CPU memory configuration includes 1 MB for program and 4.5 MB for data.
FAQ
1. What product family and function does 6ES7515-2AN03-0AB0 belong to?
6ES7515-2AN03-0AB0 belongs to SIMATIC S7-1500 and is a CPU 1515-2 PN central processing unit.
2. How much work memory is provided for program and for data?
It provides 1 MB work memory for program and 4.5 MB work memory for data.
3. Which PROFINET interfaces are available on this CPU?
It has PROFINET IRT with 2-port switch as the 1st interface and PROFINET RT as the 2nd interface.
4. What is the specified bit performance?
The specified bit performance is 6 ns.
5. Is a SIMATIC Memory Card required for this CPU?
Yes, SIMATIC Memory Card required.
