Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

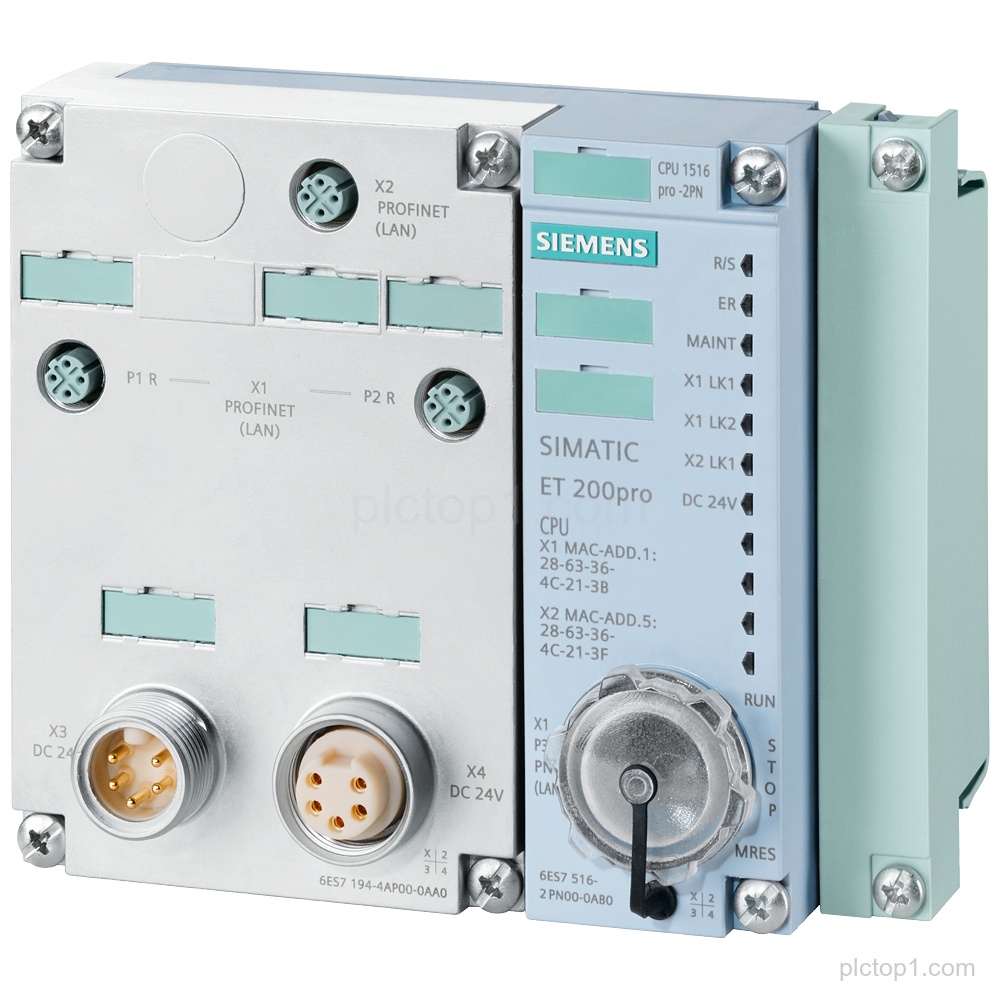

SIMATIC DP CPU 1516pro-2 PN for ET 200pro (Part Number: 6ES7516-2PP03-0AB0) provides central processing unit functionality with specified work memory for program and data and defined PROFINET interfaces.
Detailed Parameters
Product family:SIMATIC DP
CPU:CPU 1516pro-2 PN for ET 200pro
Central processing unit:Central processing unit
Work memory for program:2 MB
Work memory for data:7.5 MB
1st interface:PROFINET IRT with 3-port switch
2nd interface:PROFINET RT
Bit performance:6 ns
Degree of protection:IP65/67
Required accessory:SIMATIC Memory Card required
Required accessory:connection module required
Engineering Context
CPU 1516pro-2 PN for ET 200pro is provided as a central processing unit within the SIMATIC DP system context.
The CPU includes PROFINET IRT with 3-port switch as the 1st interface and PROFINET RT as the 2nd interface.
Use is dependent on system configuration requiring a SIMATIC Memory Card and a connection module.
FAQ
1. What is the product family and designation of 6ES7516-2PP03-0AB0?
6ES7516-2PP03-0AB0 is SIMATIC DP and is designated as CPU 1516pro-2 PN for ET 200pro.
2. What work memory capacity is specified for program and data?
It provides 2 MB work memory for program and 7.5 MB for data.
3. Which PROFINET interfaces are integrated?
The 1st interface is PROFINET IRT with 3-port switch and the 2nd interface is PROFINET RT.
4. What is the specified bit performance?
The bit performance is 6 ns.
5. What degree of protection is specified?
The degree of protection is IP65/67.
6. Is a SIMATIC Memory Card required?
Yes, SIMATIC Memory Card required is specified.
7. Is a connection module required?
Yes, connection module required is specified.
