Product information

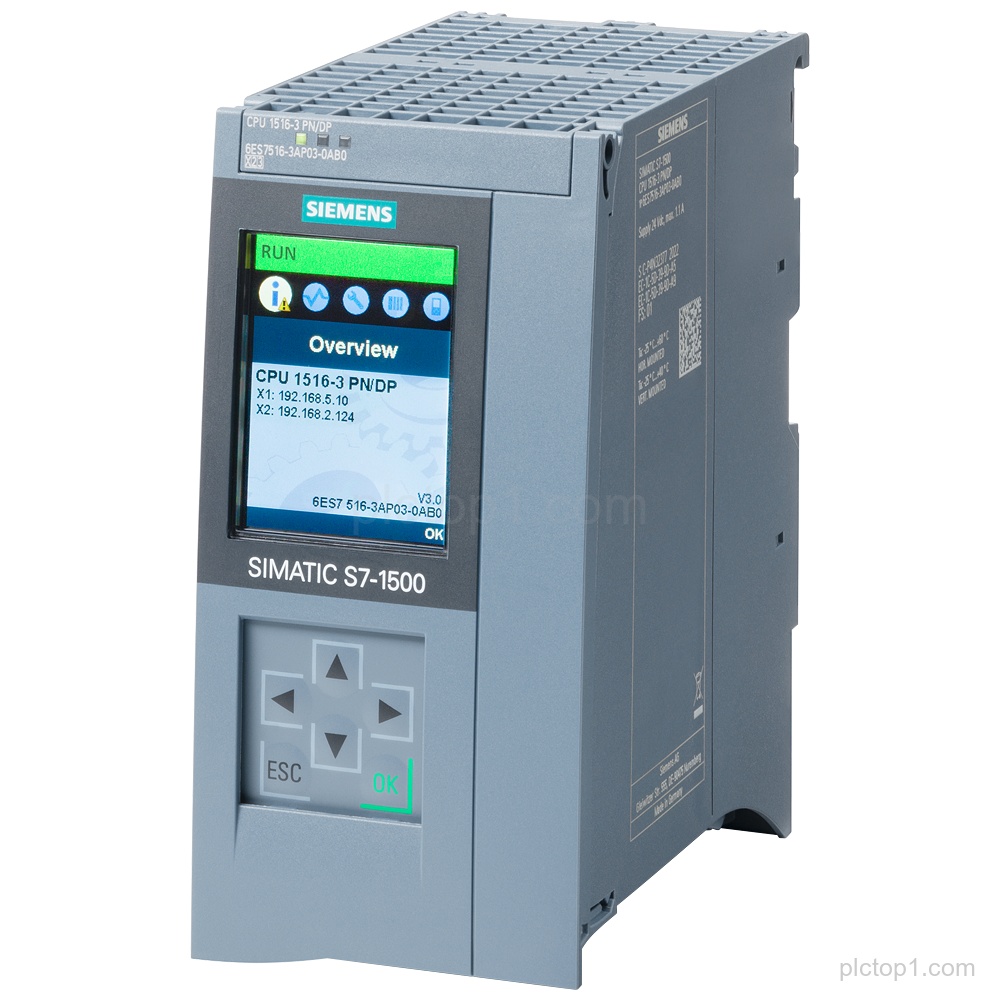

SIMATIC S7-1500 CPU 1516-3 PN/DP (Part Number: 6ES7516-3AP03-0AB0) is a central processing unit designed for execution of programs and handling of data using the provided memory configuration and interfaces.
Detailed Parameters
Product family:SIMATIC S7-1500
CPU type:CPU 1516-3 PN/DP
Work memory for program:2 MB
Work memory for data:7.5 MB
1st interface:PROFINET IRT with 2-port switch
2nd interface:PROFINET RT
3rd interface:PROFIBUS
Bit performance:6 ns
SIMATIC Memory Card:Required
Engineering Context
The CPU 1516-3 PN/DP provides work memory for both program (2 MB) and data (7.5 MB).
PROFINET IRT is provided via 2-port switch as the 1st interface, with PROFINET RT as the 2nd interface.
PROFIBUS is available as the 3rd interface for integration depending on system configuration.
FAQ
1. What CPU family and designation does Part Number 6ES7516-3AP03-0AB0 belong to?
It belongs to SIMATIC S7-1500 and is designated as CPU 1516-3 PN/DP.
2. What work memory is available for program and data?
It has 2 MB work memory for program and 7.5 MB for data.
3. Which interfaces are provided on this CPU?
The interfaces are: PROFINET IRT with 2-port switch, PROFINET RT, and PROFIBUS.
4. What is the specified bit performance?
The specified bit performance is 6 ns.
5. Is a SIMATIC Memory Card required?
Yes, SIMATIC Memory Card required.
