Product information

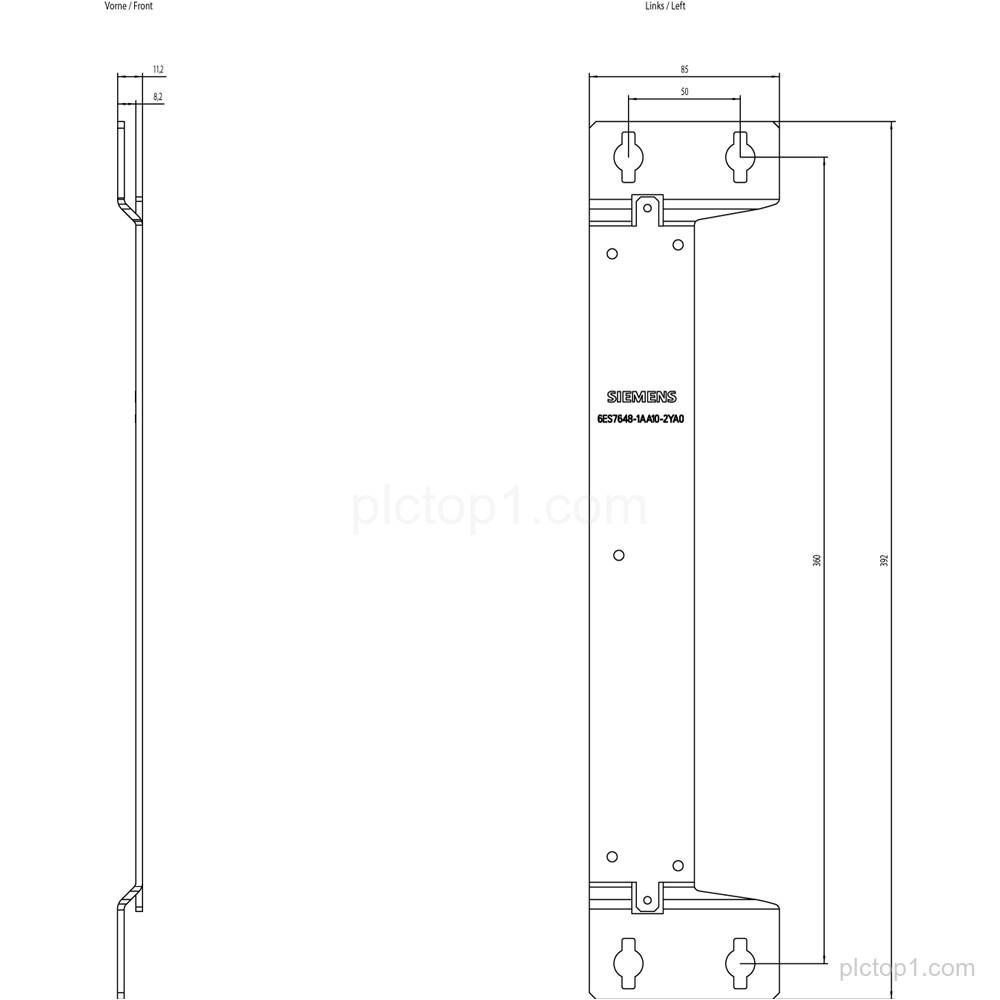

SIMATIC IPC portrait mounting kit for 6ES7648-1AA10-2YA0 for Box IPC627E (2 slots); PC interface output upward or downward and PC mounting positions per Manual.
Detailed Parameters
Product family:SIMATIC IPC
Mounting orientation:Portrait mounting kit
For:Box IPC627E (2 slots)
PC interface output:Upward or downward
PC mounting positions:Acc. to Manual
Part number:6ES7648-1AA10-2YA0
Engineering Context
The mounting kit is intended for portrait mounting of Box IPC627E (2 slots) within the SIMATIC IPC system context.
The kit supports PC interface output upward or downward for system wiring and installation layout depending on the configuration.
PC mounting positions are provided in accordance with the specified Manual.
FAQ
1. What is the product family and designation for part number 6ES7648-1AA10-2YA0?
It is a SIMATIC IPC portrait mounting kit.
2. Which PC does this mounting kit support?
It is for Box IPC627E (2 slots).
3. How is the PC interface output oriented?
The PC interface output is upward or downward.
4. Where are the PC mounting positions specified?
PC mounting positions are specified acc. to Manual.
