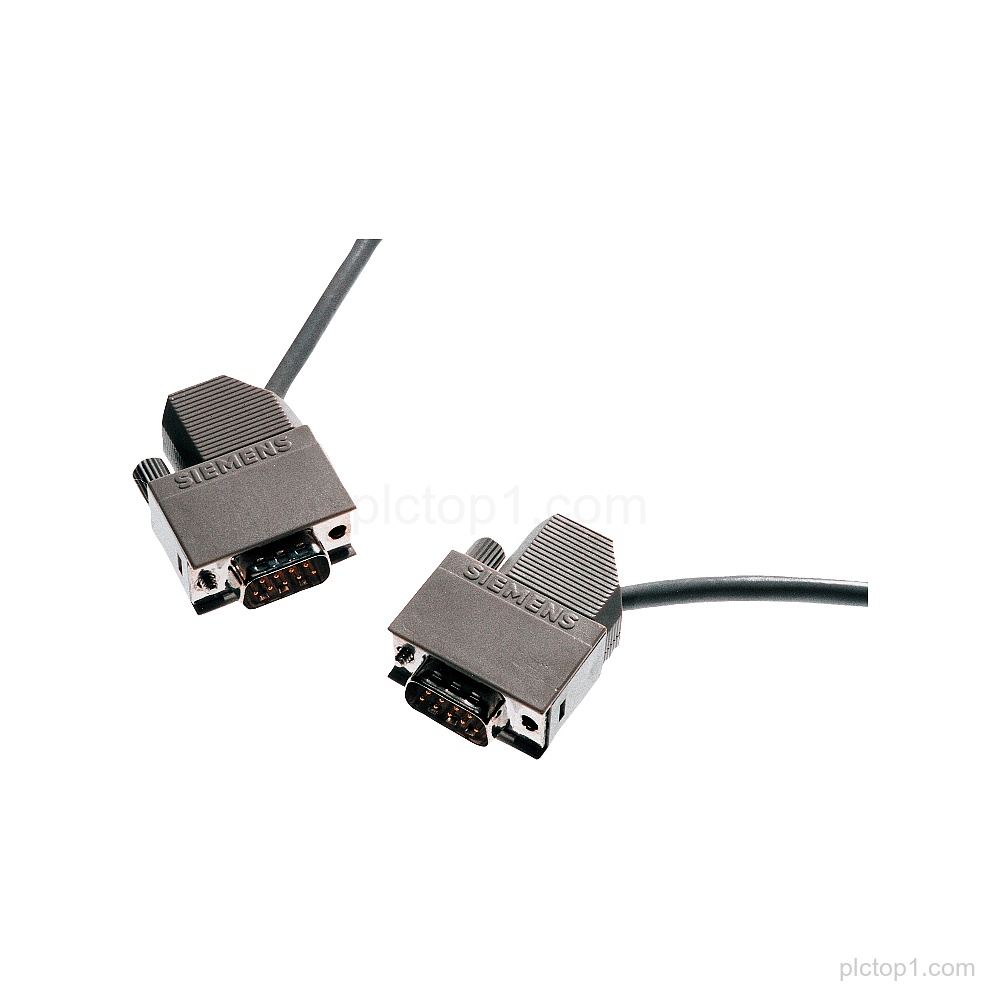

SIMATIC DP Plug-in cable for PROFIBUS (Part Number: 6ES7901-4BD00-0XA0) is designed for PG connection to PROFIBUS DP and is assembled with 2x 9-pole D-sub connectors.
Detailed Parameters
Product family:SIMATIC DP
Cable type:Plug-in cable for PROFIBUS
Intended connection:for PG connection to PROFIBUS DP
Data rate:12 Mbaud
Connector assembly:assembled with 2x 9-pole D-sub connector
Cable length:3 m
Engineering Context
Use the SIMATIC DP plug-in cable for PROFIBUS to connect a PG to PROFIBUS DP.
The cable is assembled with 2x 9-pole D-sub connectors to interface with the PROFIBUS connection points.
The specified data rate for this plug-in cable for PROFIBUS is 12 Mbaud.
FAQ
1. What is the part number and product family of this cable?
The part number is 6ES7901-4BD00-0XA0 and the product family is SIMATIC DP.
2. What is the intended use of the cable?
It is intended for PG connection to PROFIBUS DP.
3. Which PROFIBUS signaling/data rate is specified for this cable?
The specified data rate is 12 Mbaud.
4. What connectors are assembled on the cable?
The cable is assembled with 2x 9-pole D-sub connector.
5. What is the cable length?
The cable length is 3 m.
