Product information

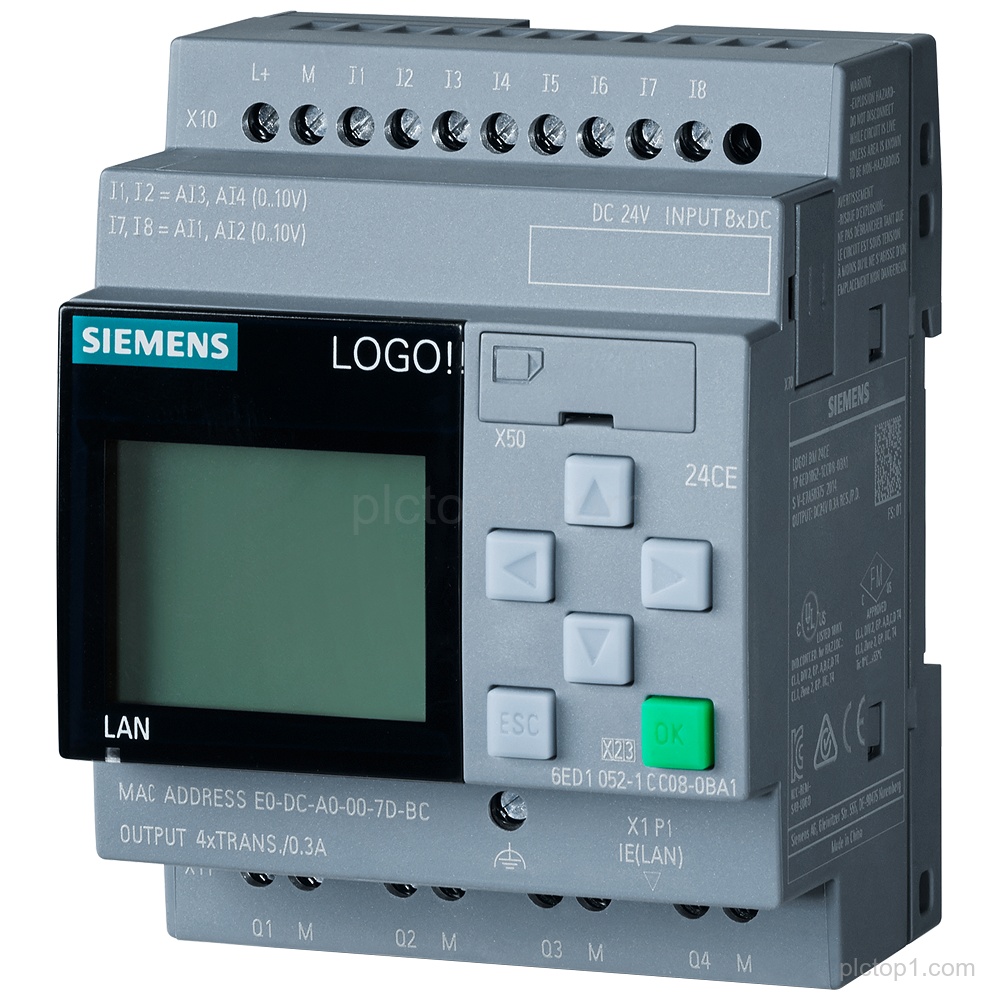

LOGO! 24CE logic module with display power supply using part number 6ED1052-1CC08-0BA1; it provides integrated Ethernet web server and data log functionality with support for standard microSD card usage for LOGO! Soft Comfort V8.3 or higher.
Detailed Parameters
Part number:6ED1052-1CC08-0BA1
Product designation:LOGO! 24CE
Module type:logic module
Display power supply / I/O supply:24 V/24 V/24 V trans.
Digital inputs:8 DI (4 AI)
Digital outputs:4 DO
Memory:400 blocks
Expansion:modularly expandable
Ethernet:integrated web server
Data log:provided
Web pages:user-defined web pages
microSD card support:standard microSD card for LOGO! Soft Comfort V8.3 or higher
Cloud connection:older projects executable cloud connection in all LOGO! 8.3 basic units
Engineering Context
The LOGO! 24CE logic module 6ED1052-1CC08-0BA1 provides 24 V/24 V/24 V trans. display power supply / I/O supply for controlling with 8 DI (4 AI) and 4 DO.
The modularly expandable design supports system build-out depending on the required configuration.
Integrated Ethernet web server, data log, and user-defined web pages enable web-based user content within the LOGO! 24CE system.
FAQ
1. What module type is available with part number 6ED1052-1CC08-0BA1?
6ED1052-1CC08-0BA1 is a LOGO! 24CE logic module.
2. What input and output counts are provided by LOGO! 24CE 6ED1052-1CC08-0BA1?
It provides 8 DI (4 AI) and 4 DO.
3. What supply voltage designation is used for the display power supply / I/O of LOGO! 24CE 6ED1052-1CC08-0BA1?
It uses 24 V/24 V/24 V trans. for display power supply / I/O.
4. Does LOGO! 24CE 6ED1052-1CC08-0BA1 support modular expansion?
Yes, it is modularly expandable.
5. What Ethernet-related features are included in LOGO! 24CE 6ED1052-1CC08-0BA1?
It includes an integrated web server, data log, and user-defined web pages.
6. Which microSD card and LOGO! Soft Comfort version are supported for LOGO! 24CE 6ED1052-1CC08-0BA1?
It supports a standard microSD card for LOGO! Soft Comfort V8.3 or higher.
