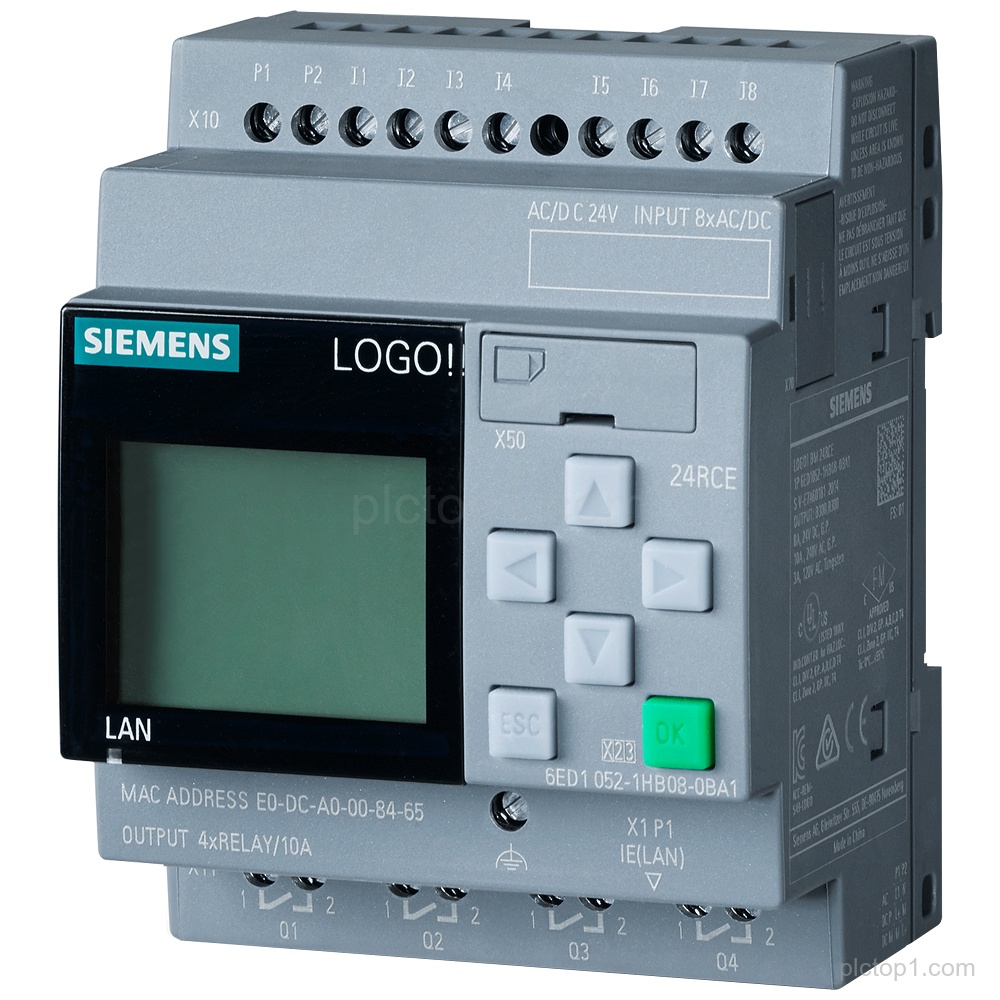

LOGO! logic module spare part 6ED1052-1HB08-0BA1 with display power supply and 24 V AC/DC/relay I/O, providing modular expansion, Ethernet, and integrated web server with data logging.
Detailed Parameters
Product type:logic module
Display power supply:provided
I/O supply:24 V
I/O type:24 V AC/DC/relay
Input count (DI):8
Output count (DO):4
Memory:400 blocks
Expansion:modularly expandable
Networking:Ethernet
Web server:integrated web server
Data logging:data log
Web pages:user-defined web pages
Memory card:standard microSD card
LOGO! Soft Comfort support:for LOGO! Soft Comfort V8.3 or higher
Older project execution via cloud connection:older projects executable cloud connection in all LOGO! 8.3 basic units
Engineering Context
The LOGO! logic module 6ED1052-1HB08-0BA1 provides 8 DI and 4 DO in a 24 V AC/DC/relay I/O configuration.
The module supports modularly expandable configuration and includes Ethernet with an integrated web server.
The module includes data log and user-defined web pages and uses a standard microSD card for LOGO! Soft Comfort V8.3 or higher.
FAQ
1. What is the function of part number 6ED1052-1HB08-0BA1?
It is a LOGO! logic module spare part with a display power supply.
2. How many inputs and outputs does 6ED1052-1HB08-0BA1 provide?
It provides 8 DI and 4 DO.
3. What I/O voltage and output type are specified for 6ED1052-1HB08-0BA1?
The specified I/O is 24 V AC/DC/relay with an I/O supply of 24 V.
4. What memory capacity is listed for the logic module?
Memory of 400 blocks is listed.
5. Does 6ED1052-1HB08-0BA1 support Ethernet and an integrated web server?
Yes. It lists Ethernet and an integrated web server.
6. What web and logging features are listed for 6ED1052-1HB08-0BA1?
It lists a data log and user-defined web pages.
7. Which LOGO! Soft Comfort version is supported by the standard microSD card mentioned for 6ED1052-1HB08-0BA1?
The listing specifies standard microSD card for LOGO! Soft Comfort V8.3 or higher.
