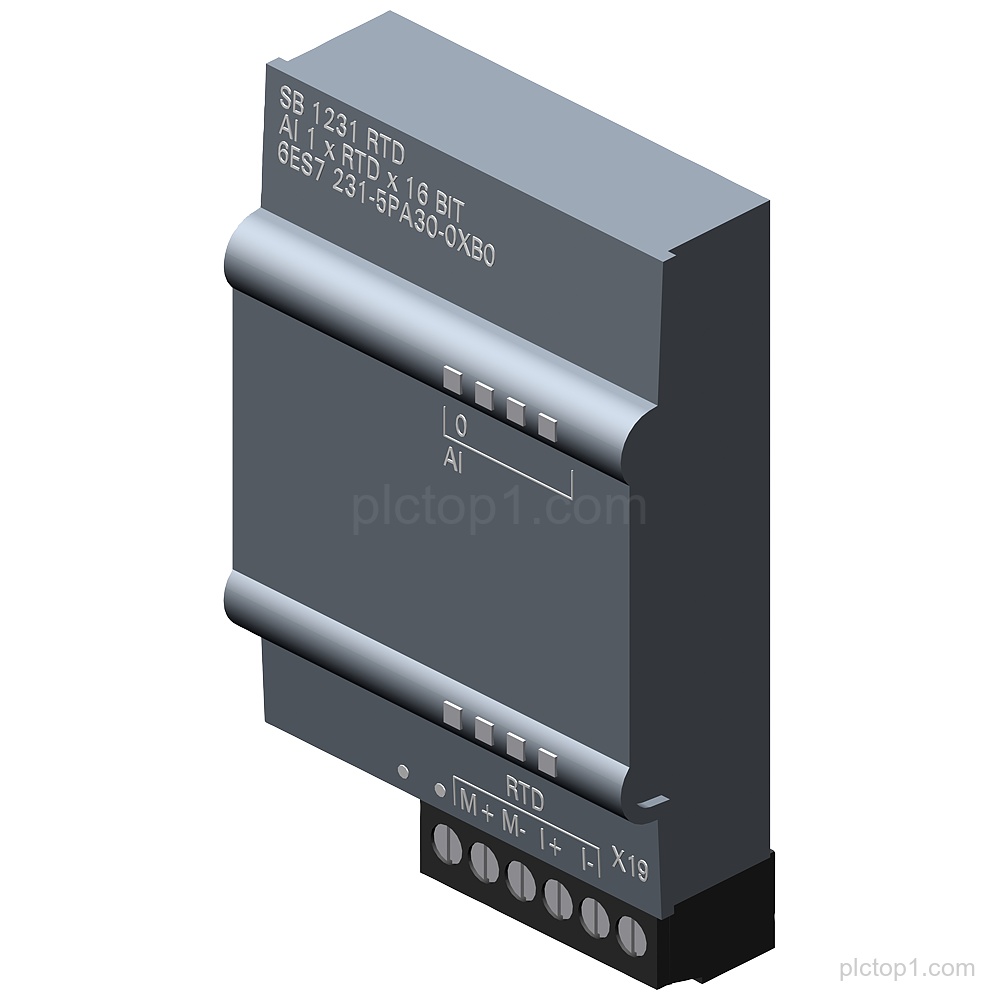

SIMATIC S7-1200 SB 1231RTD (part number 6ES7231-5PA30-0XB0) is an analog input module for RTD signals with 1 AI RTD supporting Pt100 and Pt1000.
Detailed Parameters
Product family:SIMATIC S7-1200
Module designation:SB 1231RTD
Part number:6ES7231-5PA30-0XB0
Signal type:Analog input
Channel type:1 AI RTD
RTD type:Pt100 and Pt1000
Engineering Context
SB 1231RTD is an analog input module within the SIMATIC S7-1200 system configuration.
The module provides 1 AI RTD channel for Pt100 and Pt1000 sensors.
SB 1231RTD is designed for RTD-based analog input signal acquisition in an S7-1200 application.
FAQ
1. What product family does 6ES7231-5PA30-0XB0 belong to?
6ES7231-5PA30-0XB0 belongs to the SIMATIC S7-1200 product family.
2. What is the function/designation of 6ES7231-5PA30-0XB0?
It is SIMATIC S7-1200 SB 1231RTD.
3. What type of signals does SB 1231RTD provide?
SB 1231RTD is an analog input.
4. How many RTD input channels does the module have?
The module has 1 AI RTD.
5. Which RTD sensor types are supported?
Pt100 and Pt1000.
