Analog modules

SIMATIC S7-1500 analog input/output module AI 4x U/I/R/RTD/TC ST with 4 channels, providing hardware interrupts, diagnostics, and substitute value.

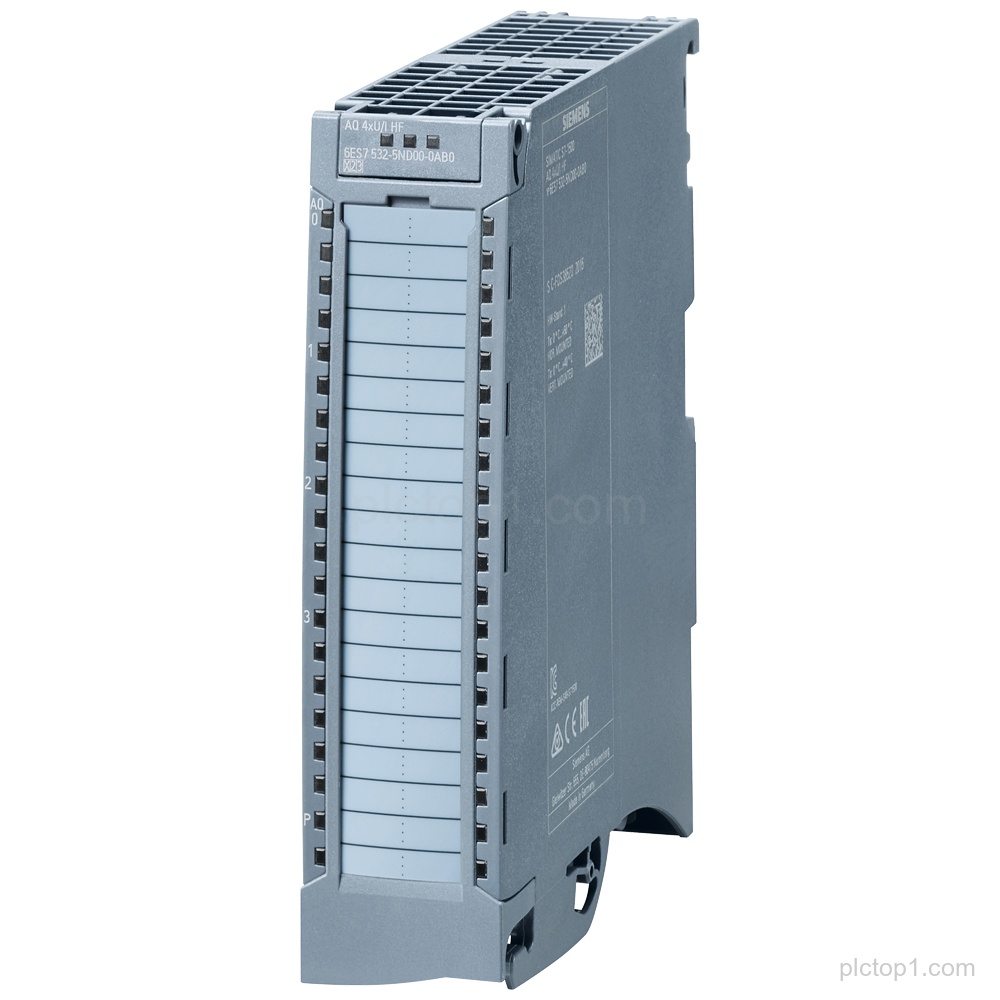

SIMATIC S7-1500 analog output module AQ 4xU/I HF for 4 analog output channels with diagnostics and safety-oriented shutdown of load groups.

SIMATIC S7-1500 analog input module AI 8xU/I HS providing 8 channels with 16 bit resolution for grouped channels and common mode voltage of 10 V.

SIMATIC S7-1500 AQ analog output module AQ 2x U/I ST with 2 channels in groups of 2, 16-bit resolution accuracy of 0.3%, and diagnostics with substitute value.

SIMATIC S7-1500 analog input module for 8 channels supporting U/R/RTD/TC measurement with 16 bit resolution and specified accuracy.

SIMATIC S7-1500 AQ8xU/I HS analog output module with 8 channels for load-group safety-oriented shutdown support up to SIL2 (EN IEC 62061:2021) and Category 3 / PL d (EN ISO 13849-1:2015).
