Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

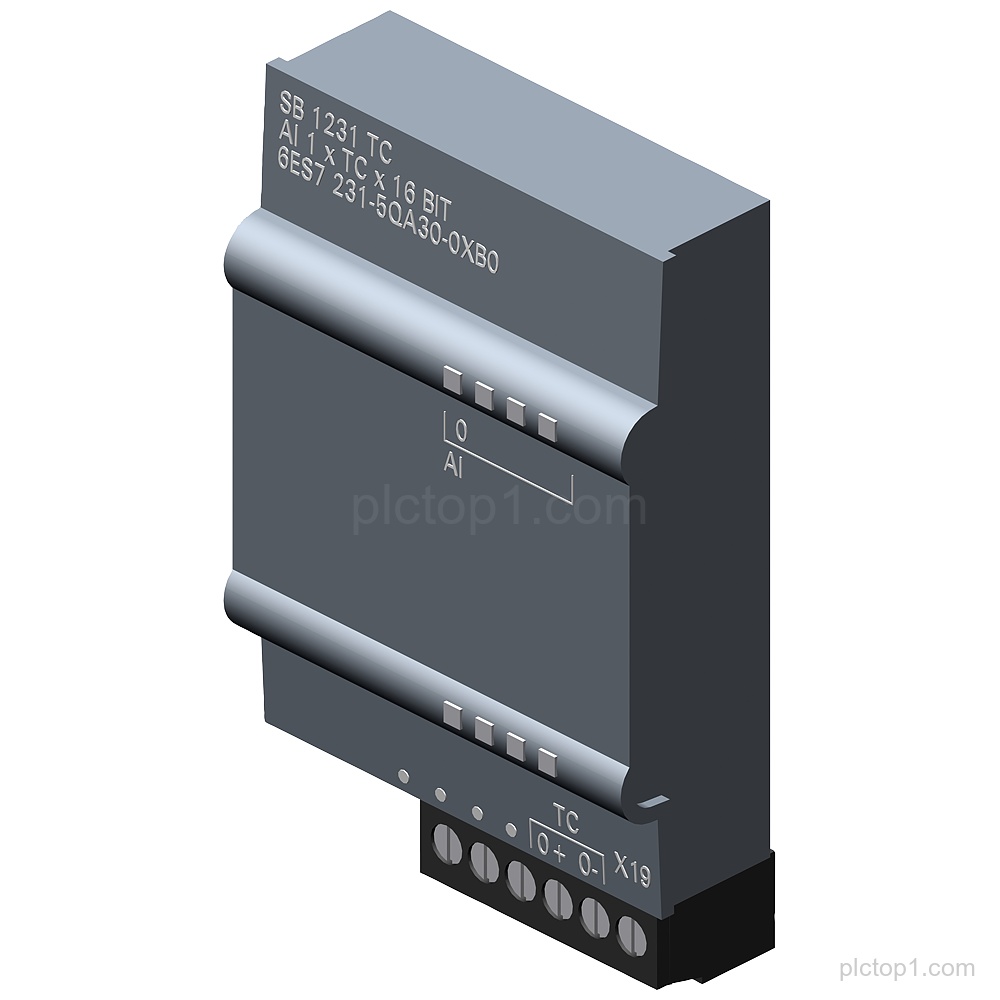

SIMATIC S7-1200 SB 1231 TC analog input module (Part number: 6ES7231-5QA30-0XB0) provides 1 AI thermocouple input for thermocouples Type J or K.
Detailed Parameters
Product family:SIMATIC S7-1200
Module:SB 1231 TC
Input type:Analog input
Channel count:1 AI
Thermocouple type:Type J or K
Engineering Context
The SB 1231 TC is an analog input module within SIMATIC S7-1200 for thermocouples.
The module provides 1 AI for connecting thermocouples of Type J or K.
Use the analog input SB 1231 TC when the system requires thermocouple inputs for Type J or K.
FAQ
1. What SIMATIC S7-1200 module is associated with Part number 6ES7231-5QA30-0XB0?
6ES7231-5QA30-0XB0 corresponds to SIMATIC S7-1200 SB 1231 TC.
2. What input type does SB 1231 TC provide?
SB 1231 TC provides an analog input.
3. How many analog input channels are available on SB 1231 TC?
SB 1231 TC provides 1 AI.
4. Which thermocouple types are supported by SB 1231 TC?
SB 1231 TC supports thermocouples Type J or K.
