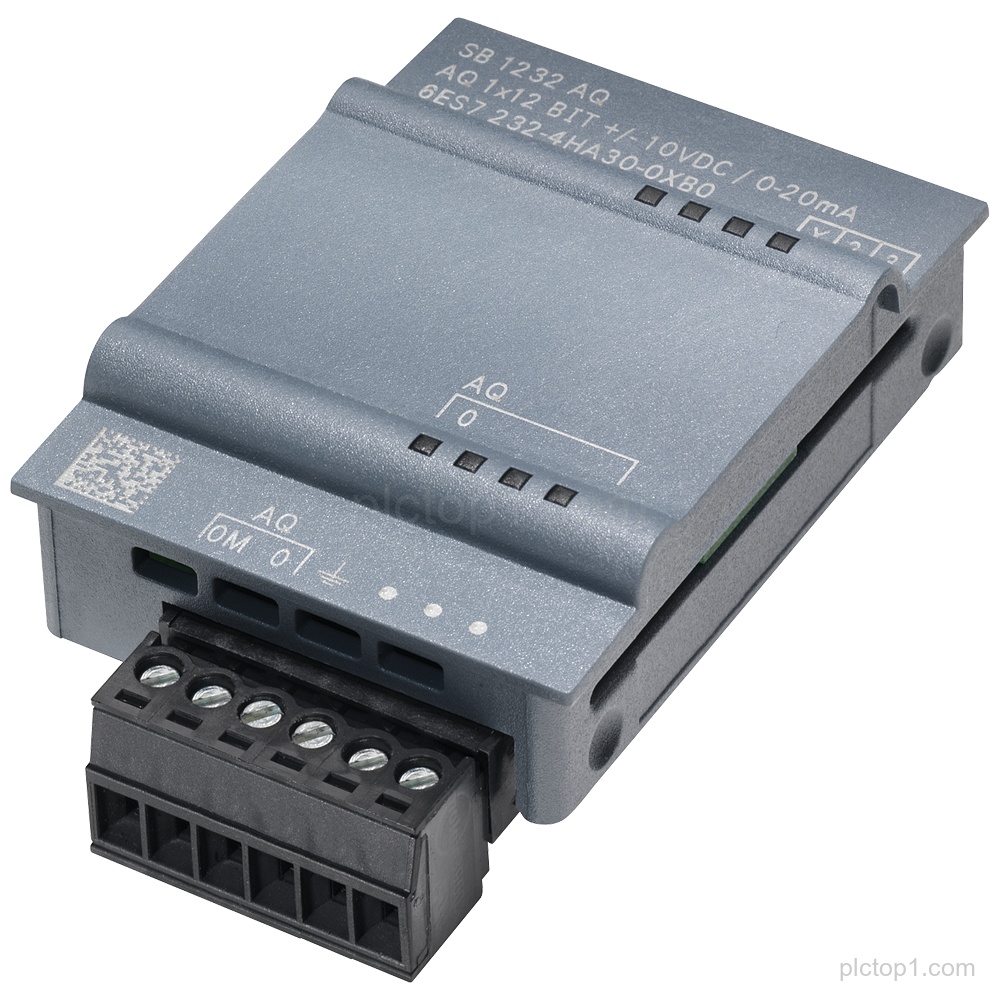

SIMATIC S7-1200 SB 1232 analog output module, Part Number 6ES7232-4HA30-0XB0, providing 1 AO with selectable output ranges of +/-10 V DC (12 bit resol.) or 0-20 mA (11 bit resol.).
Detailed Parameters
Product family:SIMATIC S7-1200
Module designation:SB 1232
Output type:Analog output
Number of analog outputs:1 AO
Output range:+/-10 V DC
Resolution for +/-10 V DC:12 bit resol.
Output range:0-20mA
Resolution for 0-20mA:11 bit resol.
Engineering Context
SB 1232 is an analog output module within the SIMATIC S7-1200 system.
The module provides 1 AO for analog output signals.
The analog output can be configured for +/-10 V DC with 12 bit resol. or for 0-20mA with 11 bit resol.
FAQ
1. What product family and module designation does 6ES7232-4HA30-0XB0 belong to?
6ES7232-4HA30-0XB0 belongs to SIMATIC S7-1200 and the module designation is SB 1232.
2. How many analog output channels does SB 1232 provide?
SB 1232 provides 1 AO.
3. What analog output signal ranges are supported?
SB 1232 supports +/-10 V DC and 0-20mA.
4. What resolution is specified for each supported output range?
For +/-10 V DC it is 12 bit resol., and for 0-20mA it is 11 bit resol.
