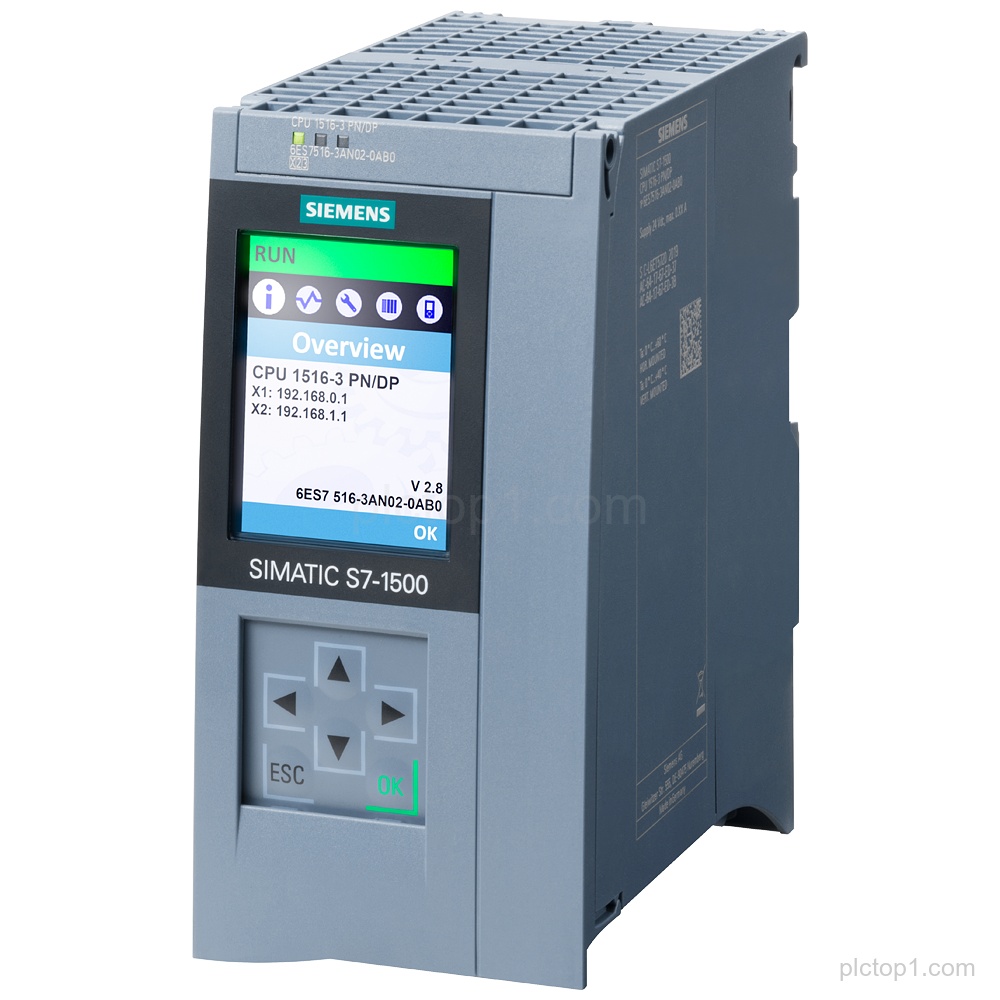

SIMATIC S7-1500 CPU 1516-3 PN/DP (Part Number: 6ES7516-3AN02-0AB0) provides central processing for program and data with 1 MB work memory for program and 5 MB work memory for data; SIMATIC Memory Card required.
Detailed Parameters
Product type:SIMATIC S7-1500 CPU 1516-3 PN/DP
Work memory for program:1 MB
Work memory for data:5 MB
1st interface:PROFINET IRT with 2-port switch
2nd interface:PROFINET RT
3rd interface:PROFIBUS
Bit performance:10 ns
Memory card requirement:SIMATIC Memory Card required
Product information note:*** spare part ***
Engineering Context
The CPU 1516-3 PN/DP is designed for SIMATIC S7-1500 central processing with separate work memory for program and data.
The CPU provides three interfaces: PROFINET IRT (with 2-port switch), PROFINET RT, and PROFIBUS.
Program execution performance is specified as 10 ns bit performance.
FAQ
1. What SIMATIC S7-1500 CPU designation corresponds to part number 6ES7516-3AN02-0AB0?
It corresponds to SIMATIC S7-1500 CPU 1516-3 PN/DP.
2. What work memory is available on CPU 1516-3 PN/DP?
Work memory is 1 MB for program and 5 MB for data.
3. Which interfaces are provided by CPU 1516-3 PN/DP?
The CPU provides PROFINET IRT with 2-port switch (1st interface), PROFINET RT (2nd interface), and PROFIBUS (3rd interface).
4. Is a SIMATIC Memory Card required for this CPU?
Yes, SIMATIC Memory Card required.
