Product information

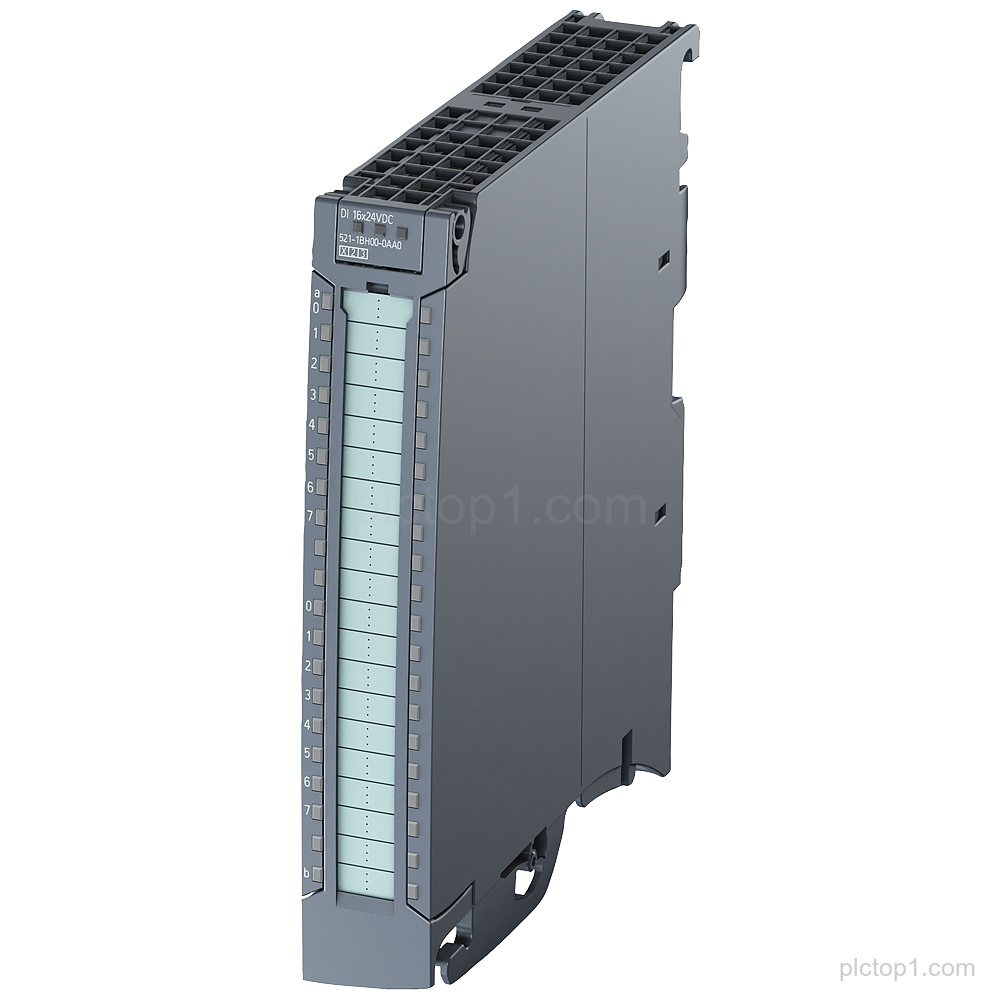

SIMATIC S7-1500 digital input module DI 16×24 V DC BA (Part number: 6ES7521-1BH10-0AA0) provides 16 digital input channels in groups of 16, with a specified input delay and included front connector Push-in.
Detailed Parameters
Product family:SIMATIC S7-1500
Module designation:Digital input module
DI range:DI 16×24 V DC BA
Number of channels:16
Channel grouping:16 channels in groups of 16
Input delay (typ.):3.2 ms
Input type:3 (IEC 61131)
Delivery content:incl. front connector Push-in
Engineering Context
The module is a SIMATIC S7-1500 digital input module providing 16 channels in groups of 16.
The module supports input type 3 (IEC 61131) and specifies an input delay typ. 3.2 ms.
Delivery includes a front connector Push-in for the module.
FAQ
1. What is the product family and function of 6ES7521-1BH10-0AA0?
6ES7521-1BH10-0AA0 is a SIMATIC S7-1500 Digital input module.
2. How many digital input channels does this module provide?
It provides 16 channels in groups of 16.
3. What is the specified input delay for the module?
The input delay is typ. 3.2 ms.
4. Which input type is supported?
The module is specified for input type 3 (IEC 61131).
5. What is included in the delivery?
Delivery includes the front connector Push-in.
