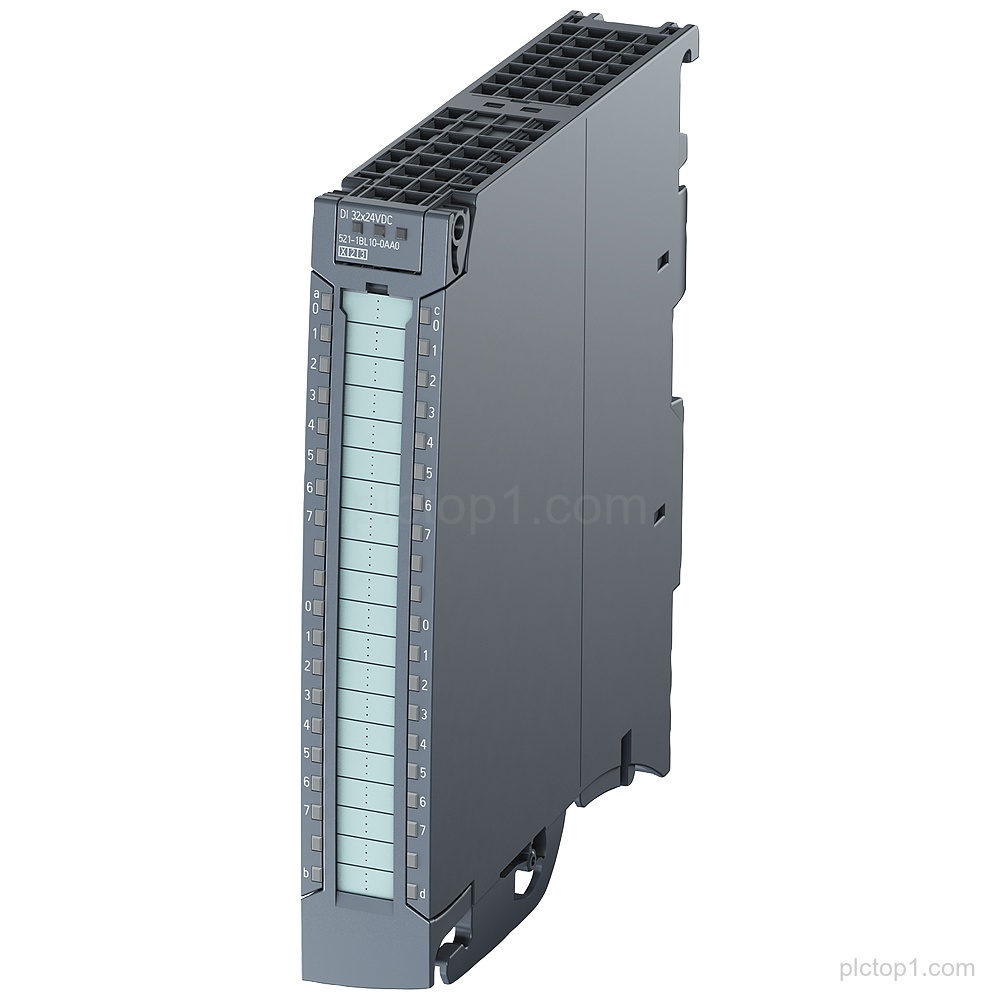

SIMATIC S7-1500 Digital input module DI 32×24 V DC BA (Part number 6ES7521-1BL10-0AA0) provides 32 channels configured in groups of 16 for digital input signal processing, with an input delay typ. 3.2 ms and delivery including a front connector Push-in.
Detailed Parameters
Product family:SIMATIC S7-1500
Module type:Digital input module
Designation:DI 32×24 V DC BA
Input channels:32 channels
Channel grouping:32 channels in groups of 16
Input type:Input type 3 (IEC 61131)
Input delay:typ. 3.2 ms
Delivery includes:front connector Push-in
Engineering Context
The module provides 32 digital input channels arranged in groups of 16 for SIMATIC S7-1500 configurations.
Input delay is specified as typ. 3.2 ms for the digital input function.
The module supports input type 3 (IEC 61131) for the connected digital inputs.
FAQ
1. What is the module designation of Part number 6ES7521-1BL10-0AA0?
The designation is DI 32×24 V DC BA.
2. How many input channels are available and how are they grouped?
It provides 32 channels in groups of 16.
3. What is the specified input delay?
The input delay is typ. 3.2 ms.
4. Which input type is supported?
Input type 3 (IEC 61131).
5. What is included in delivery for the input module?
The delivery includes a front connector Push-in.
