Product information

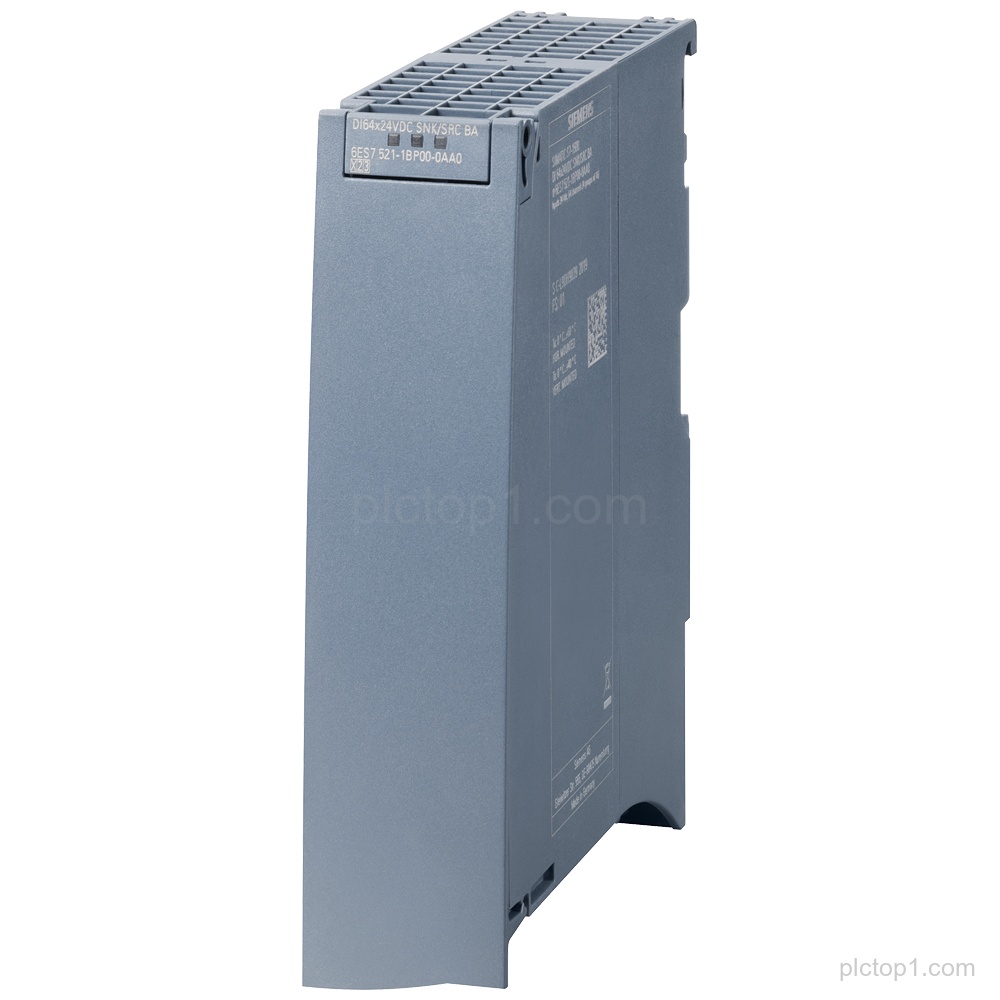

SIMATIC S7-1500 digital input module DI 64xDC 24V SNK/SRC BA, part number 6ES7521-1BP00-0AA0, provides 64 digital input channels with sinking/sourcing input and typ. 3.2 ms input delay.
Detailed Parameters
Product family / system:SIMATIC S7-1500
Module type:digital input module
Module designation:DI 64xDC 24V SNK/SRC BA
Number of channels:64
Channel grouping:64 channels in groups of 16
Input voltage type:DC 24V
Input type:3 (IEC 61131)
Input concept:sinking/sourcing input
Input delay:typ. 3.2 ms
Width:35 mm
Accessories:cables and terminal blocks to be ordered separately
Engineering Context
The module DI 64xDC 24V SNK/SRC BA is intended for digital input acquisition in a SIMATIC S7-1500 system.
The module provides 64 digital input channels arranged in groups of 16.
The sinking/sourcing input concept supports input type 3 (IEC 61131) with a typ. 3.2 ms input delay.
FAQ
1. What is the module designation and function of part number 6ES7521-1BP00-0AA0?
It is a SIMATIC S7-1500 digital input module with the designation DI 64xDC 24V SNK/SRC BA.
2. How many input channels does the module provide?
It provides 64 input channels grouped in sets of 16.
3. What input voltage and input concept does the module support?
It is designed for DC 24V with sinking/sourcing input.
4. What is the specified input delay for the module?
The input delay is typ. 3.2 ms.
5. Which input type is stated for the module?
Input type 3 (IEC 61131).
6. Are cables and terminal blocks included with the module?
No, cables and terminal blocks are to be ordered separately as accessories.
