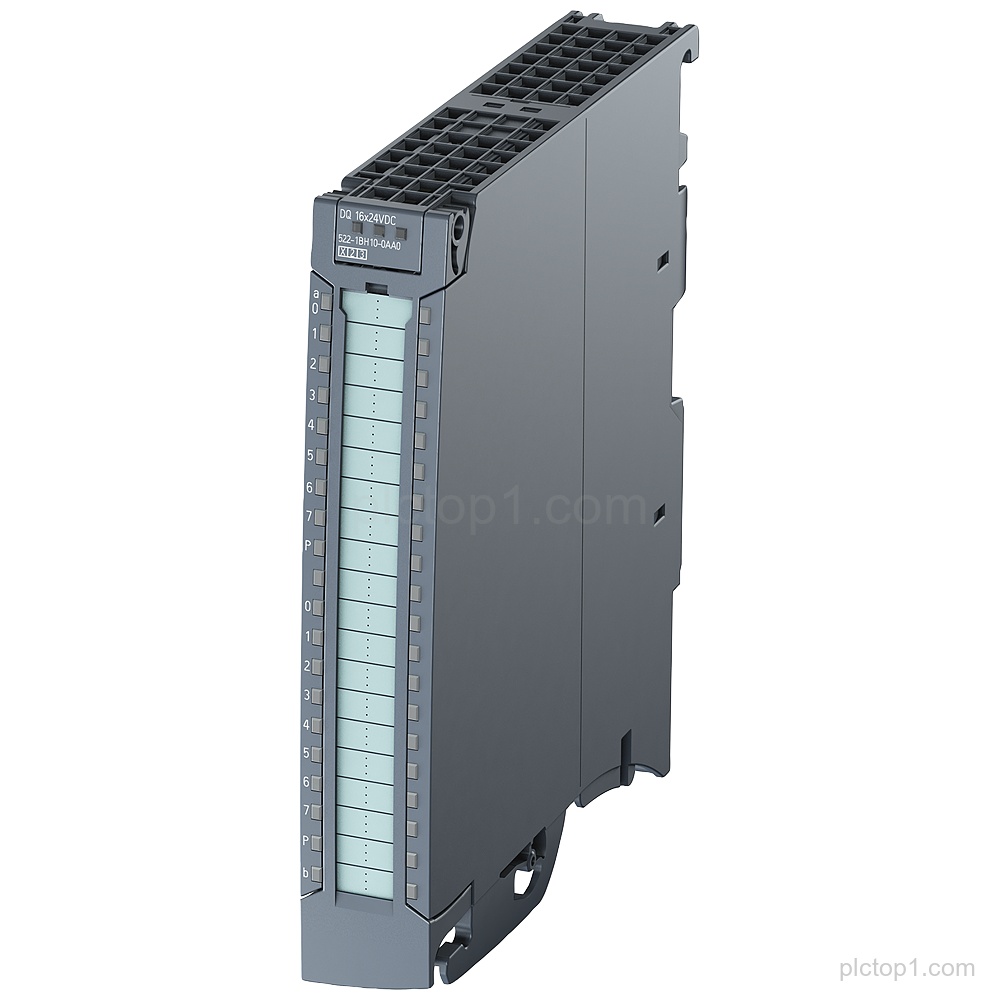

SIMATIC S7-1500 digital output module DQ16x24 V DC/0.5A HF for part number 6ES7522-1BH01-0AB0; provides 16 digital output channels arranged in groups of 8 with single-channel diagnostics and a substitute value for connected actuator behavior.
Detailed Parameters
Product family:SIMATIC S7-1500
Module type:digital output module
Designation:DQ16x24 V DC/0.5A HF
Signal type:digital output
Output voltage:24 V DC
Output current (single channel):0.5 A
Channel count:16 channels
Channel grouping:16 channels in groups of 8
Current per group:4 A per group
Diagnostics:single-channel diagnostics
Substitute value:switching cycle counter for connected actuators
Safety-oriented shutdown (load groups):up to SIL2 according to EN IEC 62061:2021
Safety category / performance level:Category 3 / PL d according to EN ISO 13849-1:2015
Front connector:to be ordered separately (screw terminals or push-in)
Engineering Context
The DQ16x24 V DC/0.5A HF module provides 16 digital outputs in groups of 8 with single-channel diagnostics.
The module supports safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015 at system level.
The module uses a substitute value based on a switching cycle counter for connected actuators and requires a front connector order separately.
