Product information

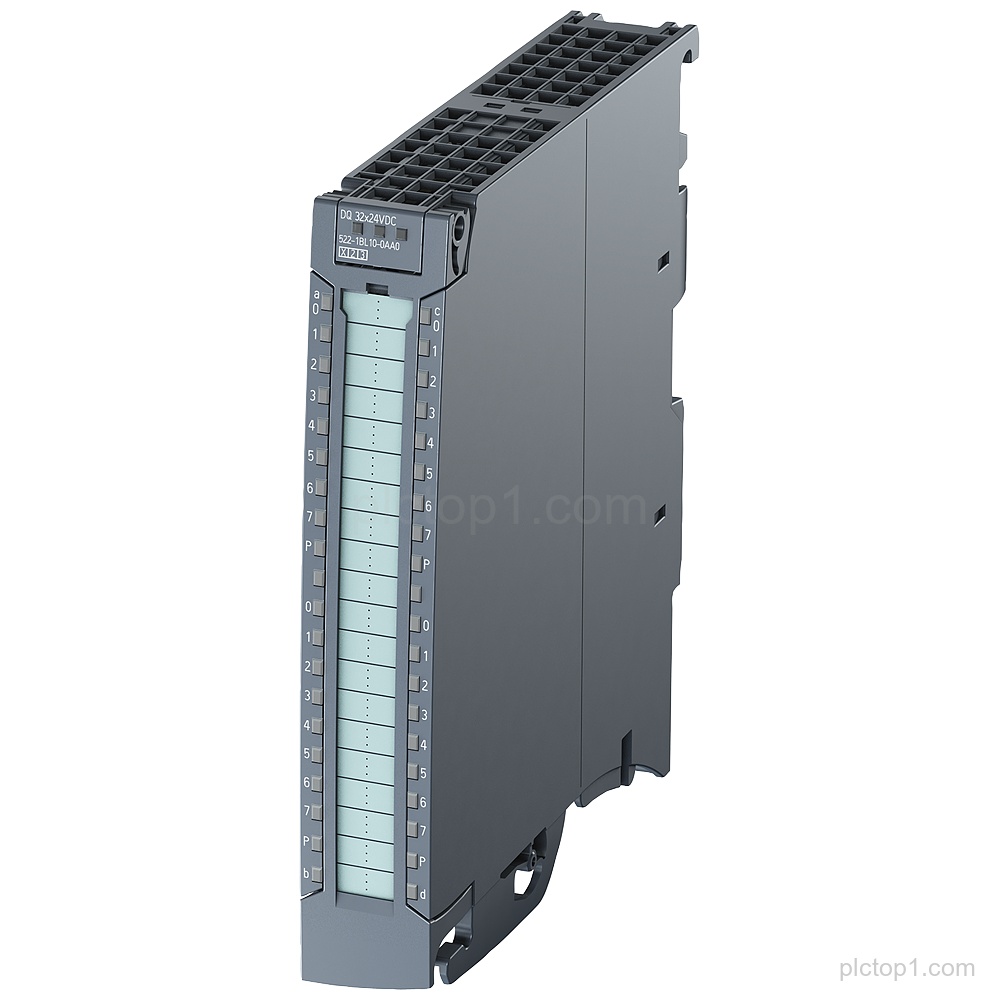

SIMATIC S7-1500 digital output module DQ 32x24V DC/0.5A HF (Part number: 6ES7522-1BL01-0AB0). The module provides 32 digital outputs and supports substitute value behavior and single-channel diagnostics, including switching cycle counter for connected actuators.
Detailed Parameters
Product family / system:SIMATIC S7-1500
Module designation:digital output module DQ
Output type:32x24V DC/0.5A HF
Channel count:32 channels
Channel grouping:in groups of 8
Current per group:4 A per group
Diagnostics:single-channel diagnostics
Function for connected actuators:switching cycle counter
Substitute value:substitute value
Front connector:front connector (screw terminals or push-in) to be ordered separately
Safety function (load group shutdown):safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015
Engineering Context
Use this SIMATIC S7-1500 DQ digital output module to provide 32 digital outputs in groups of 8 with current per group of 4 A.
The module supports single-channel diagnostics and substitute value behavior for connected outputs.
The module supports safety-oriented shutdown of load groups up to SIL2 (EN IEC 62061:2021) and Category 3 / PL d (EN ISO 13849-1:2015).
FAQ
1. What module family and designation does 6ES7522-1BL01-0AB0 belong to?
6ES7522-1BL01-0AB0 is a SIMATIC S7-1500 digital output module DQ.
2. How many output channels does this module provide and how are they grouped?
It provides 32 channels in groups of 8.
3. What output specification is stated for the digital outputs?
The module is specified as 32x24V DC/0.5A HF.
4. What diagnostics capability is included?
It supports single-channel diagnostics.
5. Does the module provide a substitute value function and a switching cycle counter?
Yes, it provides substitute value and a switching cycle counter for connected actuators.
6. What safety performance is specified for shutdown of load groups?
It supports safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015.
7. Is the front connector included with the module?
No, the front connector (screw terminals or push-in) is to be ordered separately.
