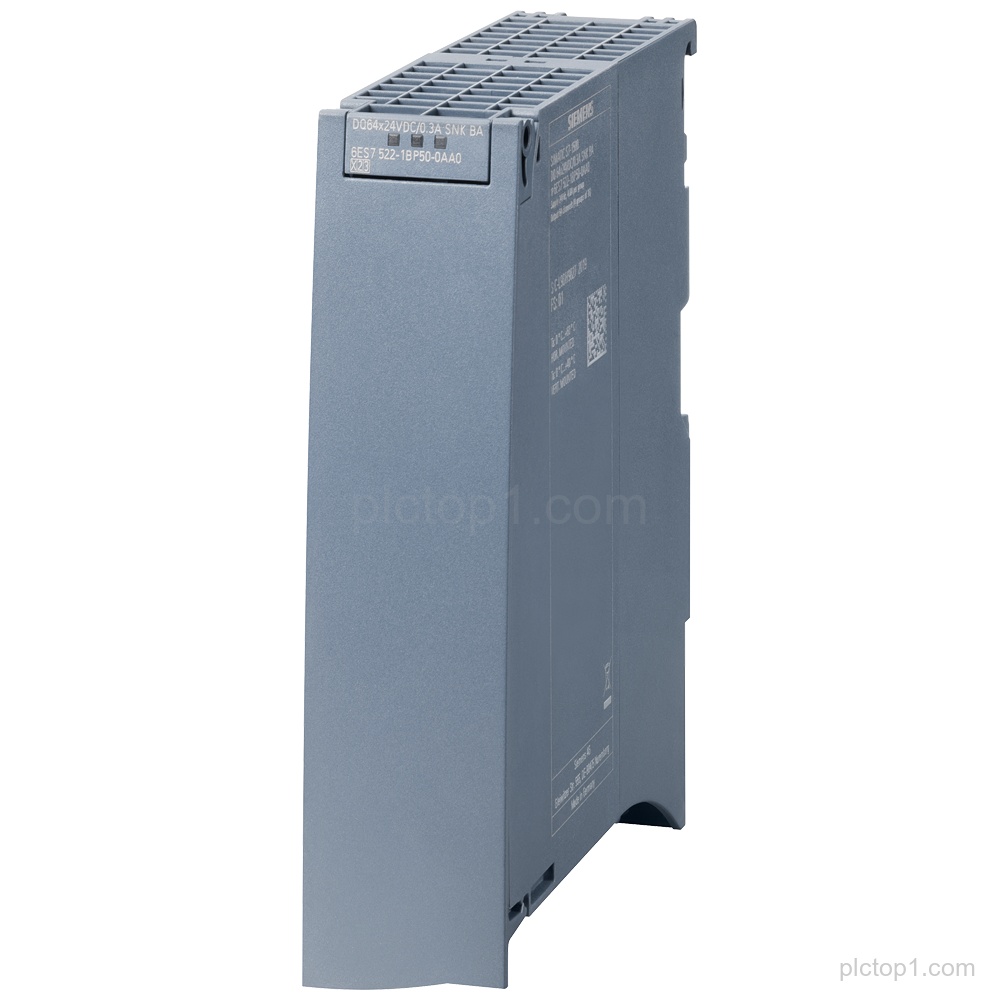

SIMATIC S7-1500 digital output module 6ES7522-1BP50-0AA0 for 64 channels in groups of 16.
Detailed Parameters
Product family:SIMATIC S7-1500
Module type:digital output module
Designation:DQ 64xDC 24V/0.3A SNK BA
Number of channels:64
Channel grouping:64 channels in groups of 16
Output per group:2 A per group at 60 °C
Output type:sourcing output
Cable/terminal integration:35 mm wide cables and terminal blocks to be ordered separately as accessories
Engineering Context
The module is a SIMATIC S7-1500 digital output module with 64 outputs arranged in groups of 16 channels.
The output designation specifies DC 24V/0.3A and a grouped output current of 2 A per group at 60 °C.
Cables and terminal blocks for the 35 mm wide connection are to be ordered separately as accessories.
