Product information

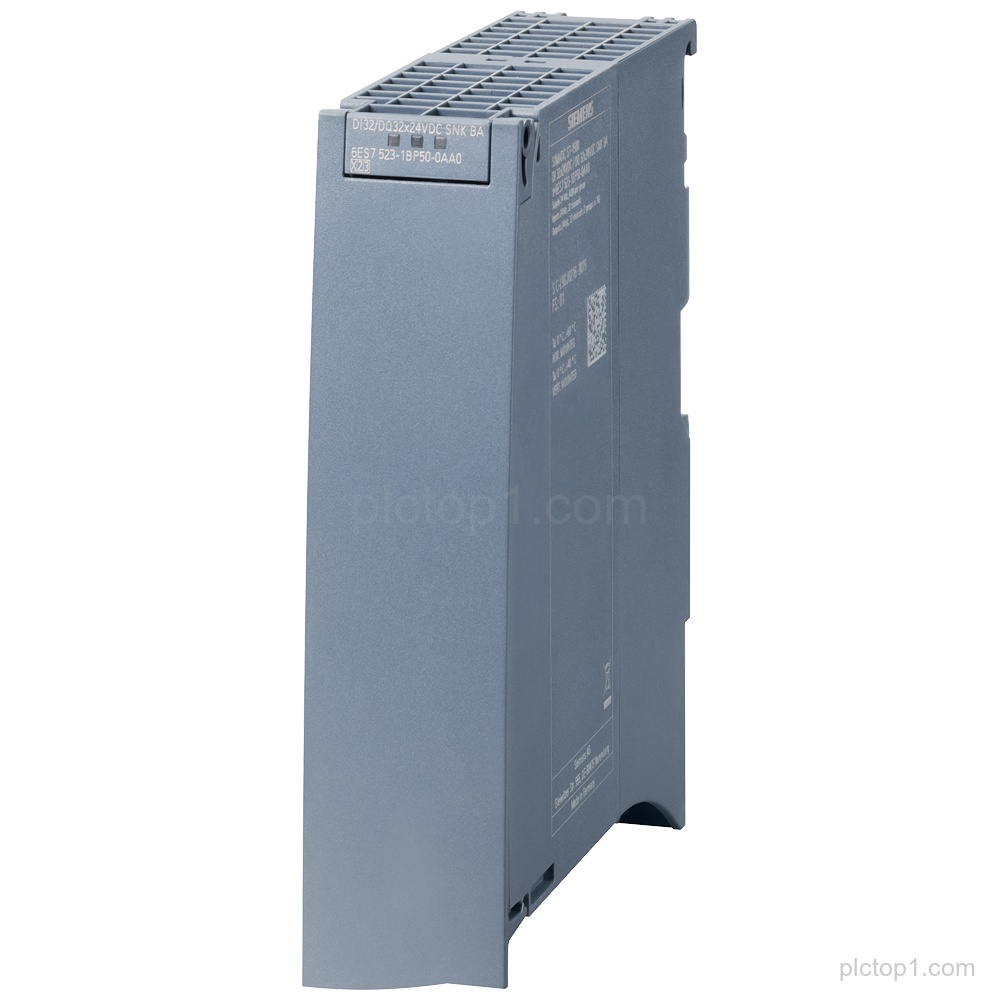

SIMATIC S7-1500 digital input/output module 6ES7523-1BP50-0AA0 provides 32 channels in groups of 16 with an input delay typ. 3.2 ms and sinking/sourcing input.
Detailed Parameters
Product family:SIMATIC S7-1500
Module designation:digital input/output module
Part number:6ES7523-1BP50-0AA0
DI:32x24VDC
Input configuration:BA SNK / SRC
Channels:32 channels in groups of 16
Input delay (typ.):3.2 ms
Input type:3 (IEC 61131)
Input type:sinking/sourcing input
DQ:32XDC 24V/0.3A SNK BA
Output configuration:sourcing output
Output channels grouping:32 channels in groups of 16
Max current per group:2 A per group at 60 °C
Width:35 mm wide
Accessories:cables and terminal blocks to be ordered separately
Engineering Context
The module 6ES7523-1BP50-0AA0 is a SIMATIC S7-1500 digital input/output module for 32 channels configured in groups of 16.
The input delay is specified as typ. 3.2 ms with input type 3 (IEC 61131) and sinking/sourcing input.
The module provides 32XDC 24V/0.3A SNK BA for outputs with sourcing output, with 2 A per group at 60 °C.
FAQ
1. What is the module designation for 6ES7523-1BP50-0AA0?
SIMATIC S7-1500 digital input/output module.
2. How many channels does 6ES7523-1BP50-0AA0 provide and how are they grouped?
32 channels in groups of 16.
3. What input delay and input type are specified for this module?
Input delay typ. 3.2 ms and input type 3 (IEC 61131).
4. Is the input configured for sinking or sourcing?
It has sinking/sourcing input and is specified as BA SNK / SRC.
5. What output designation and output configuration are specified?
DQ 32XDC 24V/0.3A SNK BA with sourcing output.
6. Are cables and terminal blocks included with 6ES7523-1BP50-0AA0?
No, cables and terminal blocks are to be ordered separately as accessories.
