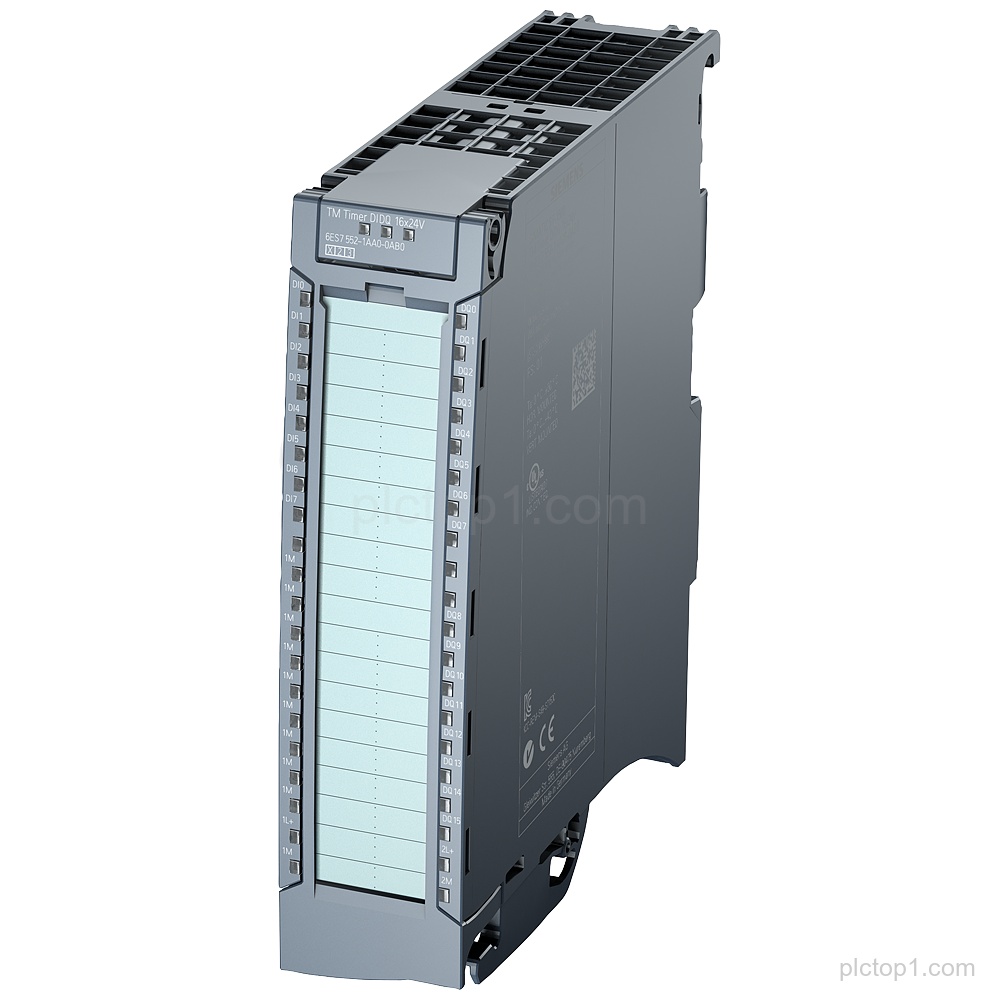

SIMATIC S7-1500 TM Timer DIDQ 16x 24 V time-controlled digital inputs and outputs, with part number 6ES7552-1AA00-0AB0.
Detailed Parameters
Product family:SIMATIC S7-1500
Module type:TM Timer DIDQ
Input/Output type:time-controlled digital inputs and outputs
Channels:16x 24 V
Max. digital inputs (DI):8
Max. digital outputs (DQ):16
Max. DQ with time stamp:16
Functions:Count, PWM
Additional feature:oversampling
Engineering Context
The TM Timer DIDQ provides time-controlled digital inputs and outputs for the SIMATIC S7-1500 system configuration.
The module supports up to 8 DI and up to 16 DQ, with up to 16 DQ channels providing time stamp.
Depending on configuration, the module supports Count and PWM and provides oversampling.
