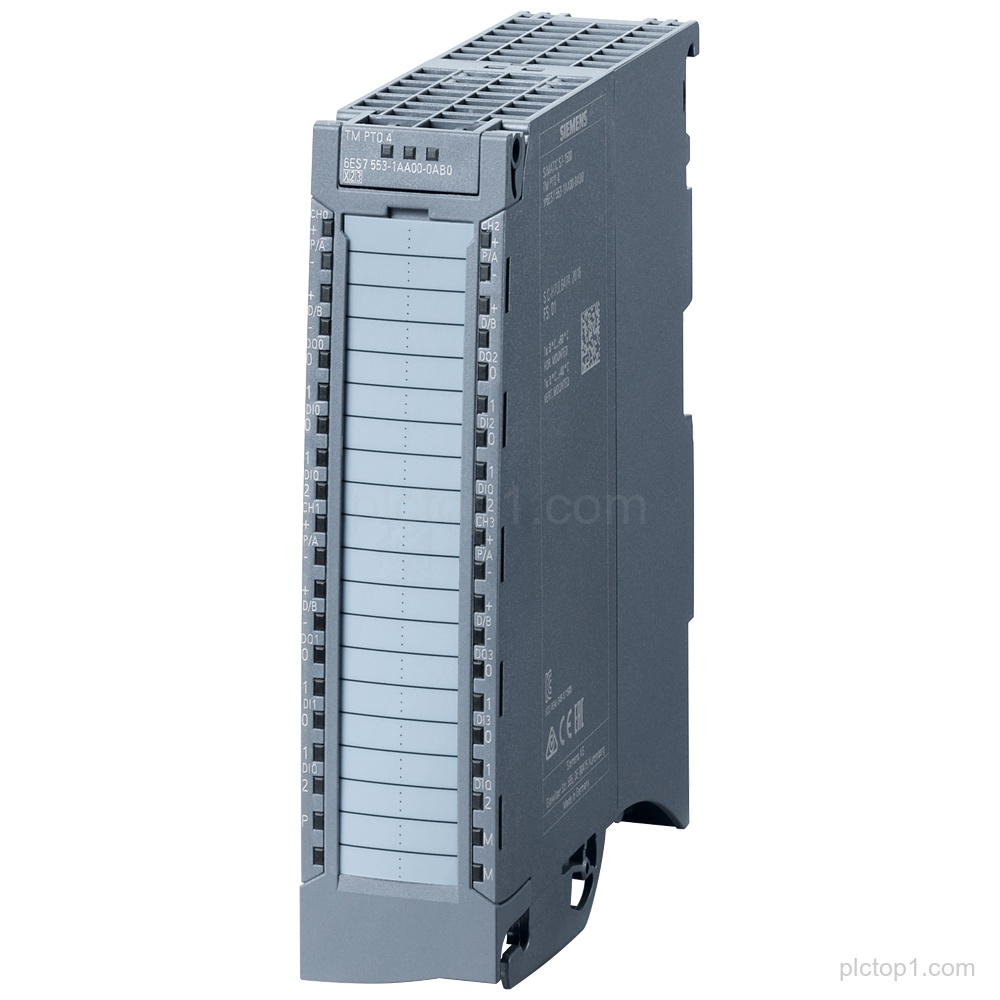

SIMATIC S7-1500 TM PTO 4 interface module for stepper drives; part number 6ES7553-1AA00-0AB0.
Detailed Parameters
Channels:4
Pulse train output:PTO
Pulse train output signal types:24 V, RS-422, 5 V
Per channel inputs:2 DI
Per channel outputs:1 DQ
DQ level:24VDC per channel
Engineering Context
The TM PTO 4 interface module is intended for stepper drives pulse train output (PTO).
The module provides 4 channels for pulse train output signals in the listed formats (24 V, RS-422, 5 V).
For each channel, the module includes 2 DI and 1 DQ with a 24VDC DQ level.
