SIMATIC S7-1500 spare part shielding set 6ES7590-5CA00-0AA0 for front connectors of 35 mm wide modules, suitable for analog and technology modules.
Detailed Parameters
Product family/system:SIMATIC S7-1500
Product type:spare part Shielding set

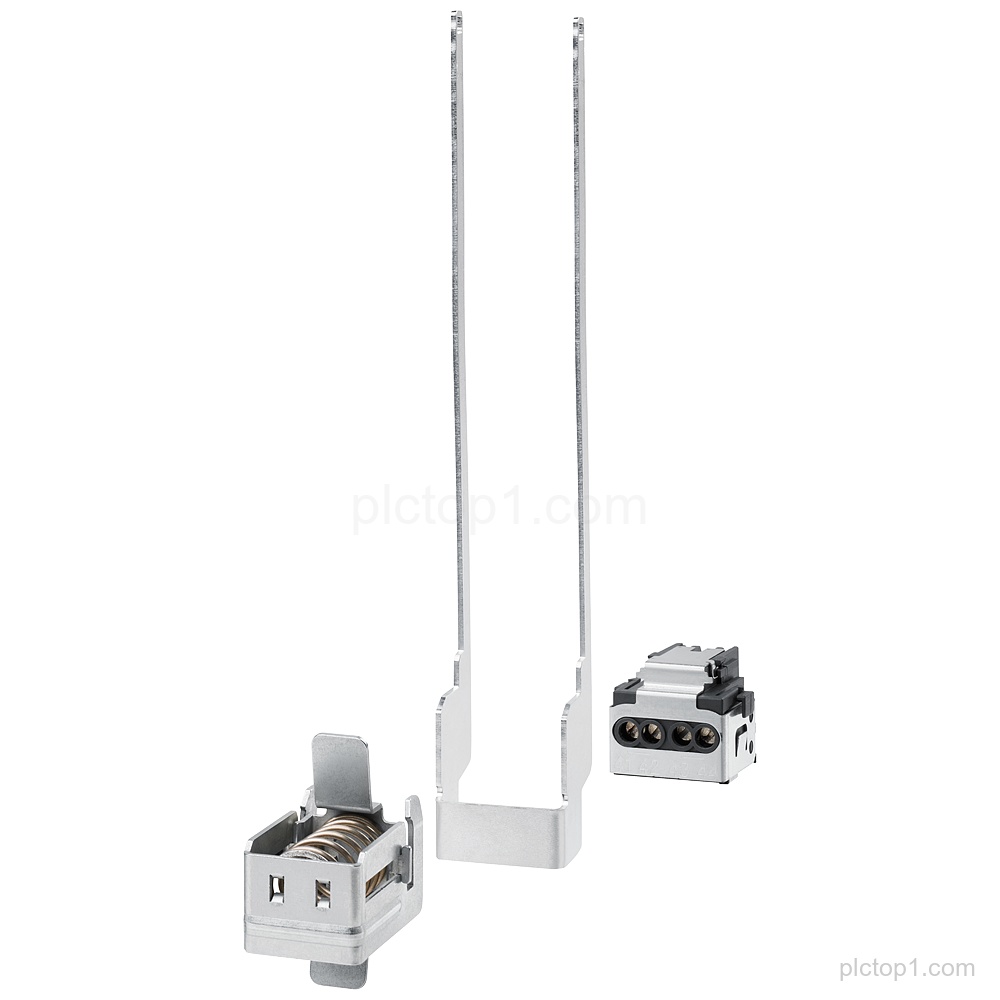

Components:shield terminal; shielding bracket; 24 V DC infeed element in screw-type connection system
Screw-type connection system:24 V DC infeed element
Suitable modules:analog and technology modules of the S7-1500
Suitable front connectors:all front connectors for 35 mm wide modules
Packing unit:5 units per packing unit
Engineering Context
The shielding set 6ES7590-5CA00-0AA0 is provided as a SIMATIC S7-1500 spare part.
The 24 V DC infeed element is implemented in a screw-type connection system for use with suitable S7-1500 analog and technology modules.
The shielding set is suitable for all front connectors for 35 mm wide modules.
FAQ
1. What spare part does 6ES7590-5CA00-0AA0 provide?
It provides a Shielding set for SIMATIC S7-1500.
2. What components are included in the shielding set?
The set consists of a shield terminal, a shielding bracket, and a 24 V DC infeed element in screw-type connection system.
3. Which S7-1500 module types is the 24 V DC infeed element suitable for?
It is suitable for analog and technology modules of the S7-1500.
4. Which front connectors are supported by this shielding set?
It is suitable for all front connectors for 35 mm wide modules.
5. How many units are included per packing unit?
5 units per packing unit.
