Product information

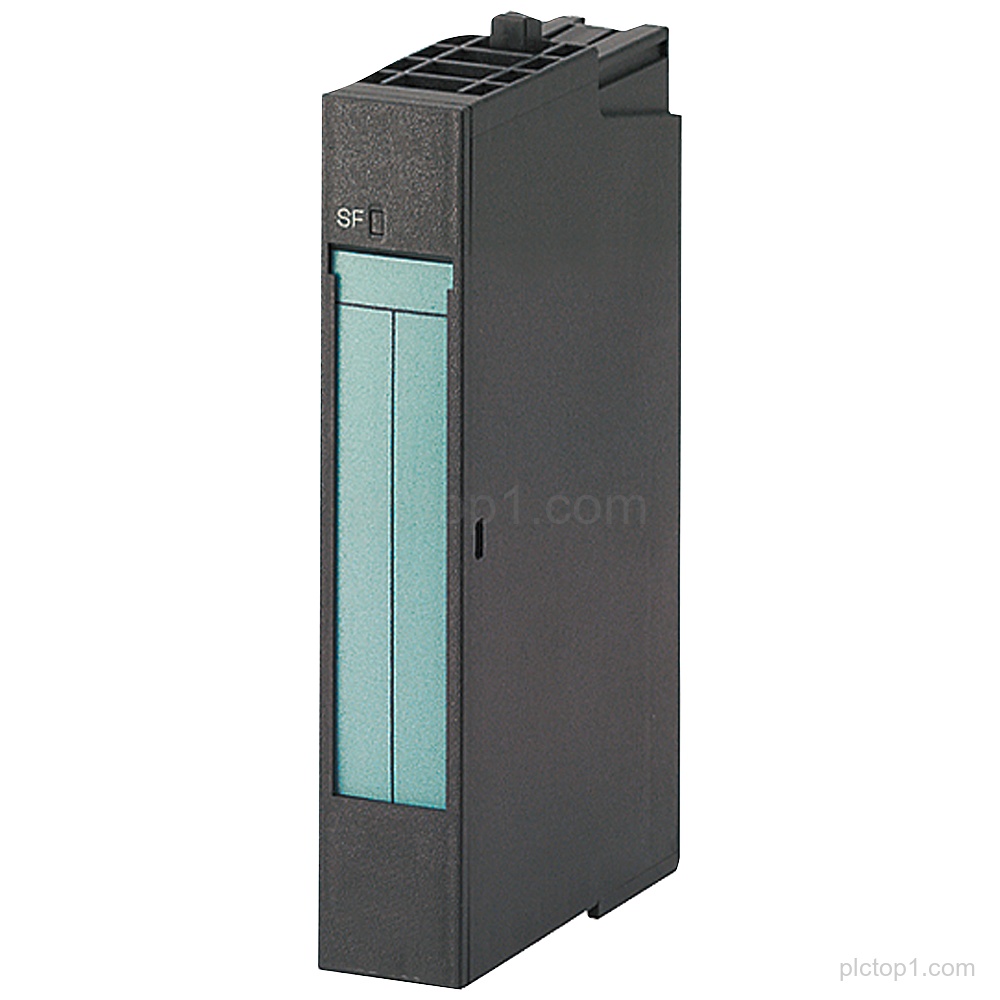

SIPLUS ET 200S EM 4 AI I 2-wire, part number 6AG1134-4GD00-2AB0, is an electronic module for 2-wire transmitters with a transmitter cycle time of 40 ms/module and an SF LED (group fault).
Detailed Parameters
Conformal coating:Conformal coating
Input:4-20 mA
Signal type:2-wire
Resolution:13 bit
Width:15 mm
Operating temperature:-25…+70 °C
Transmitter cycle time:40 ms/module
Fault indication:SF LED (group fault)
Based on:6ES7134-4GD00-0AB0
Engineering Context
Use SIPLUS ET 200S EM 4 AI I 2-wire for 2-wire transmitter signals in the 4-20 mA range.
The module is designed with 15 mm width and 13 bit input resolution.
SF LED (group fault) provides group fault indication for the module.
FAQ
1. What input signal type and range does 6AG1134-4GD00-2AB0 support?
It is an electronic module for 2-wire transmitters with 4-20 mA input.
2. What resolution is specified for this electronic module?
13 bit.
3. What is the specified transmitter cycle time for this module?
40 ms/module.
4. What width is specified for the electronic module?
15 mm.
5. How is group fault indicated?
SF LED (group fault).
6. What operating temperature range is specified?
-25…+70 °C.
7. What is the module based on?
6ES7134-4GD00-0AB0.
