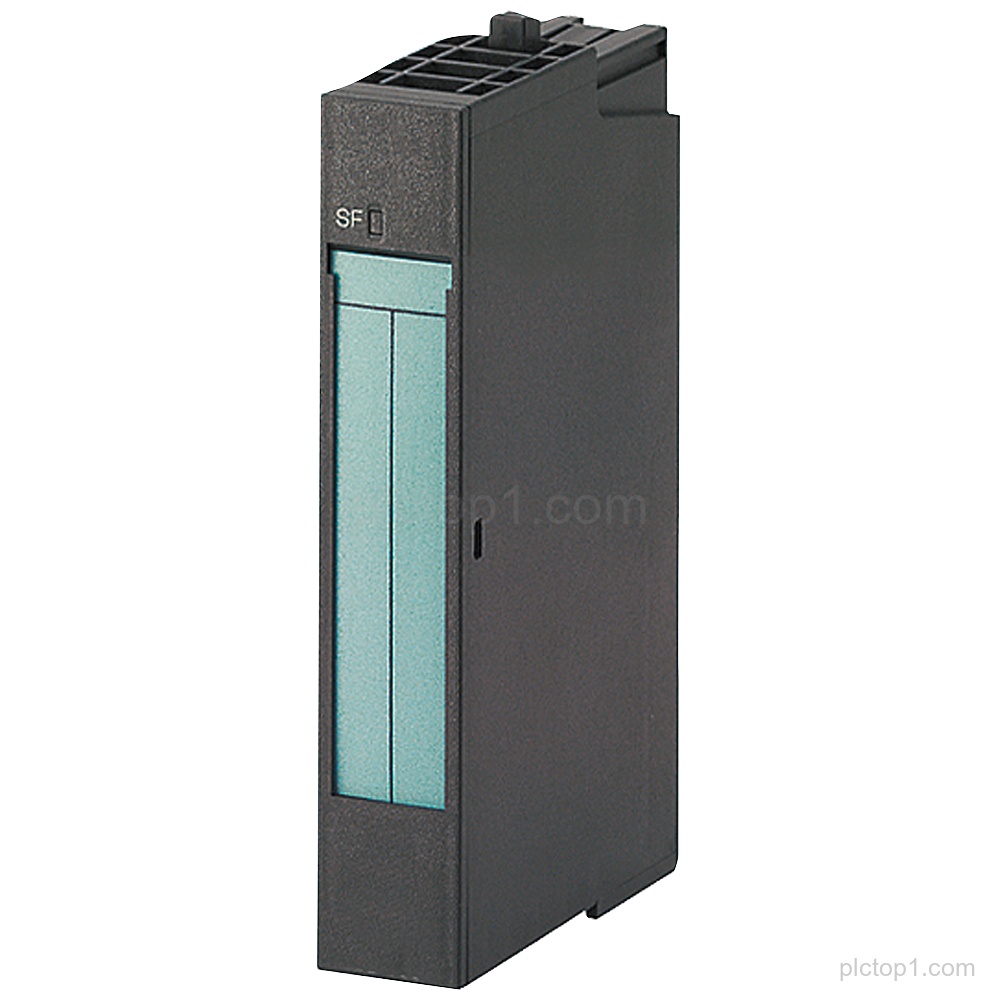

SIPLUS ET 200S EM 2 AE I HF (Part Number: 6AG1134-4MB02-2AB0) is an electronic module with conformal coating and defined analog input signal characteristics and timing.
Detailed Parameters
Based on:6ES7134-4MB02-0AB0
Conformal coating:Yes
Operating temperature range:-25…+70 °C
Overall width:15 mm
Cycle time per module:0.5 ms
Signal range:+/-20 mA
Resolution/format for +/-20 mA:15 bit+sign
Signal range for 4..20 mA:4..20 mA
Resolution/format for 4..20 mA:15 bit
Operational limit:+/-0.1%
SF LED:group fault
Engineering Context
SIPLUS ET 200S EM 2 AE I HF is an electronic module with 15 mm overall width and a cycle time per module of 0.5 ms.
The analog input signal characteristics include +/-20 mA with 15 bit+sign and 4..20 mA with 15 bit with an operational limit of +/-0.1%.
The module supports SF LED indicating group fault and is based on 6ES7134-4MB02-0AB0 with conformal coating.
FAQ
1. What is the product family and designation for 6AG1134-4MB02-2AB0?
SIPLUS ET 200S EM 2 AE I HF.
2. On which base module is the SIPLUS ET 200S EM 2 AE I HF based?
It is based on 6ES7134-4MB02-0AB0.
3. Does 6AG1134-4MB02-2AB0 include conformal coating?
Yes, it is based on 6ES7134-4MB02-0AB0 with conformal coating.
4. What is the operating temperature range?
-25…+70 °C.
5. What is the cycle time per module?
0.5 ms.
6. Which analog current input ranges are specified and what resolution is given for each?
+/-20 mA is specified with 15 bit+sign, and 4..20 mA is specified with 15 bit.
7. What does the SF LED indicate?
SF LED indicates group fault.
