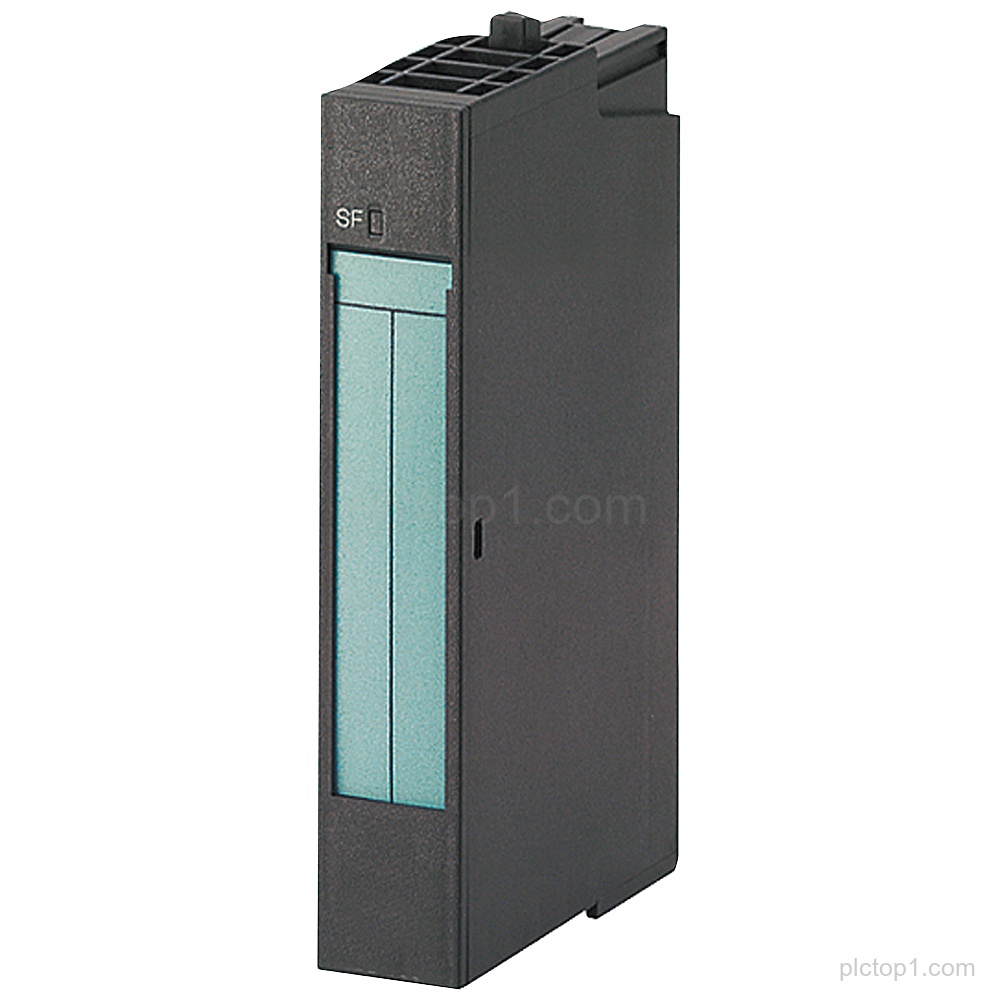

SIPLUS ET 200S PM-E power module 6AG1138-4CB11-2AB0 based on 6ES7138-4CB11-0AB0 is designed for PM-E power supply in the range 24-48 V DC and 24-230 V AC and includes diagnostics and fuse.
Detailed Parameters
Based on:6ES7138-4CB11-0AB0
Conformal coating:With conformal coating
Temperature range:-25…+60 °C
Power module type:PM-E power module
Input power:24-48 V DC
Input power:24-230 V AC
Diagnostics:With diagnostics
Fuse:With fuse
Engineering Context
SIPLUS ET 200S PM-E is a DC/AC based power module for ET 200S applications using the PM-E power module concept.
The module is based on 6ES7138-4CB11-0AB0 and includes conformal coating.
The power module operates within -25…+60 °C and provides diagnostics and fuse.
FAQ
1. What product family and module designation does 6AG1138-4CB11-2AB0 belong to?
6AG1138-4CB11-2AB0 belongs to SIPLUS ET 200S and is a PM-E power module.
2. What is the base model of this PM-E power module?
It is based on 6ES7138-4CB11-0AB0.
3. Which supply ranges are supported by the PM-E power module?
The PM-E power module supports 24-48 V DC and 24-230 V AC.
4. Does the module include diagnostics and fuse?
Yes, it includes diagnostics and fuse.
5. What is the specified temperature range?
The specified temperature range is -25…+60 °C.
6. Is conformal coating included?
Yes, it is with conformal coating.
