Product information

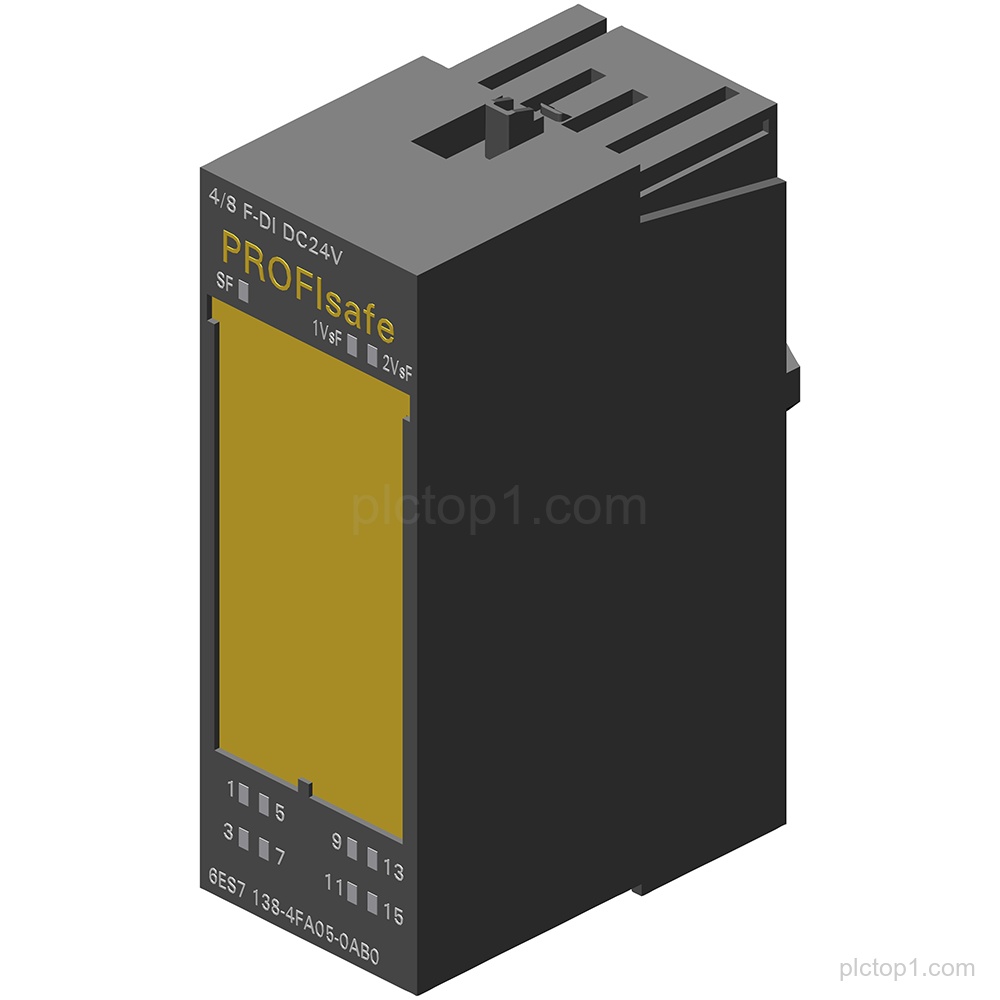

SIPLUS ET 200S EM F-DI 24V PROFIsafe with part number 6AG1138-4FA05-2AB0 is an electronic module for ET 200S providing 4/8 F-DI PROFIsafe in 24 V DC configuration with conformal coating and PROFINET operation possible with IM 151-3 HF.
Detailed Parameters
Product family:SIPLUS ET 200S
Module designation:EM F-DI 24V PROFIsafe
Base reference:6ES7138-4FA05-0AB0
Conformal coating:Yes
Operating temperature:-25…+60 °C
Module type:electronic module for ET 200S
F-DI channel count:4/8
Signal type:F-DI PROFIsafe
Supply voltage:24 V DC
Overall width:30 mm
Safety category (EN 954-1):up to category 4
Safety integrity level (IEC 61508):SIL3
Performance level (ISO 13849):PLE
PROFINET configuration:can also be used with IM 151-3 HF
Engineering Context
The SIPLUS ET 200S EM F-DI 24V PROFIsafe module is designed as an electronic module for ET 200S.
It provides F-DI PROFIsafe input functionality in a 24 V DC configuration with 4/8 channels depending on system configuration.
For system-level functional safety requirements, it is specified up to category 4 (EN 954-1) / SIL3 (IEC 61508) / PLE (ISO 13849).
FAQ
1. What module family and designation does 6AG1138-4FA05-2AB0 belong to?
6AG1138-4FA05-2AB0 belongs to the SIPLUS ET 200S and is an EM F-DI 24V PROFIsafe module.
2. What type and channel count of inputs does the module provide?
It provides 4/8 F-DI PROFIsafe inputs.
3. What supply voltage is used by the module?
The module is specified for 24 V DC.
4. What is the operating temperature range?
The module is specified for -25…+60 °C.
5. What functional safety performance levels are stated for the module?
It is specified up to category 4 (EN 954-1) / SIL3 (IEC 61508) / PLE (ISO 13849).
6. Can the module be used in a PROFINET configuration?
Yes, it can also be used in PROFINET configuration with IM 151-3 HF.
