Product information

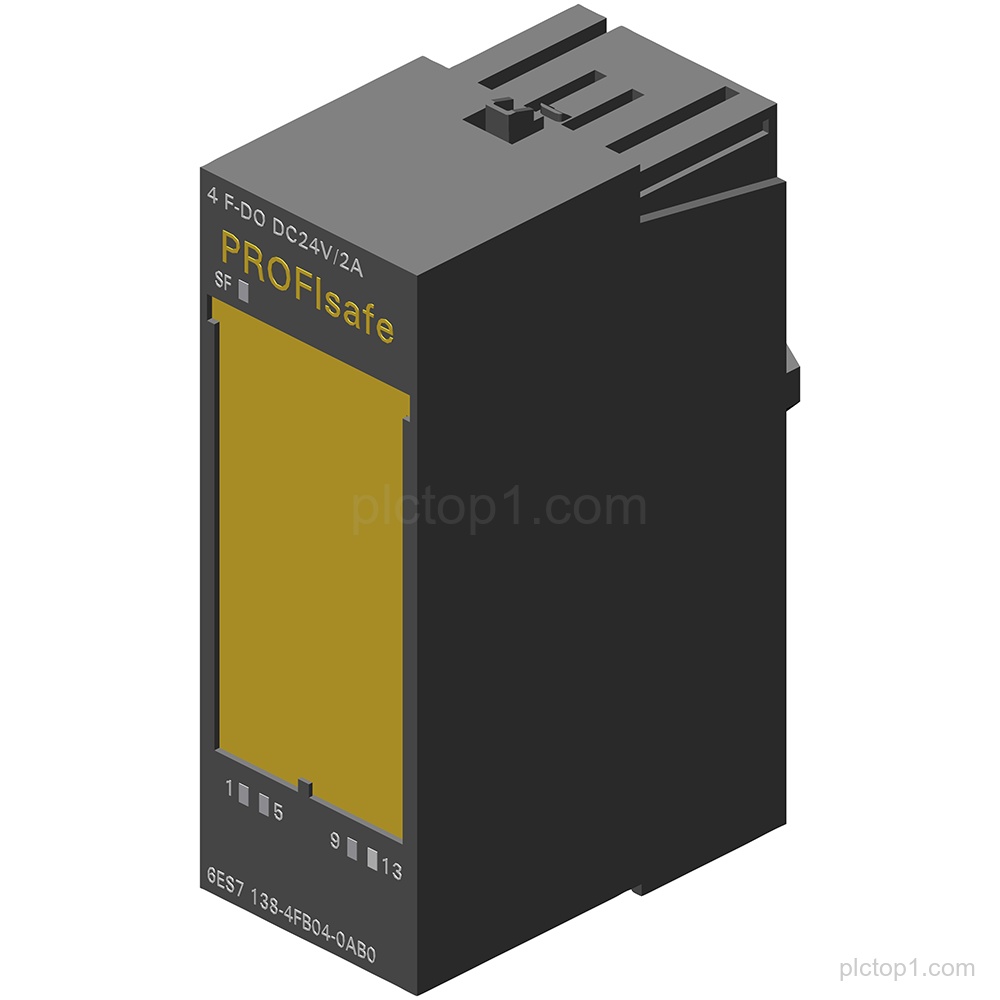

SIPLUS ET 200S F-DQ 24V PROFIsafe (Part Number: 6AG1138-4FB04-2AB0) is an electronic module for ET 200S with conformal coating and 4 F-DQ PROFIsafe channels.
Detailed Parameters
Product family / designation:SIPLUS ET 200S F-DQ 24V PROFIsafe
Based on:6ES7138-4FB04-0AB0
Module type:electronic module for ET 200S
Channel count:4 F-DQ PROFIsafe
Supply voltage:24 V DC
Current (rated):2 A
Conformal coating:yes
Ambient temperature:-25…+60 °C
Overall width:30 mm
Functional safety classification:up to category 4 (EN 954-1)/ SIL3 (IEC 61508)/ PLE (ISO 13849)
Use in PROFINET configurations:can also be used with IM 151-3 HF
Engineering Context
The module is designed as an electronic module for ET 200S with 4 F-DQ PROFIsafe channels.
For functional safety, it supports operation up to category 4 (EN 954-1)/ SIL3 (IEC 61508)/ PLE (ISO 13849).
It can also be used in PROFINET configurations with IM 151-3 HF.
FAQ
1. What is the module type and product designation for 6AG1138-4FB04-2AB0?
6AG1138-4FB04-2AB0 is a SIPLUS ET 200S F-DQ 24V PROFIsafe electronic module for ET 200S.
2. How many F-DQ PROFIsafe channels are available?
The module provides 4 F-DQ PROFIsafe channels.
3. What supply voltage and current are specified for this module?
The module is specified for 24 V DC/2 A.
4. What ambient temperature range is specified?
The module is specified for -25…+60 °C.
5. What functional safety classification is specified?
It is specified as up to category 4 (EN 954-1)/ SIL3 (IEC 61508)/PLE (ISO 13849).
6. Can the module be used in PROFINET configurations?
Yes, it can also be used in PROFINET configurations with IM 151-3 HF.
