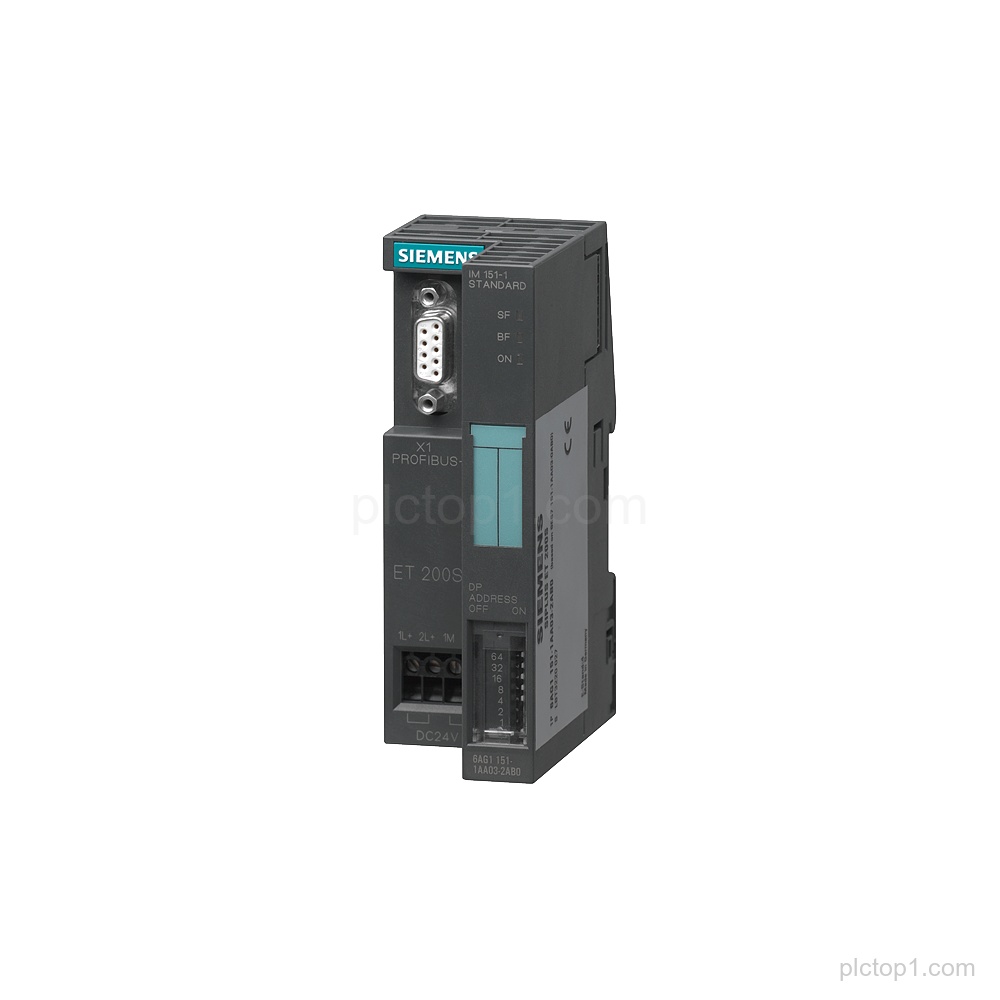

SIPLUS ET 200S IM 151-1 spare part, Part number 6AG1151-1AA06-7AB0, is based on 6ES7151-1AA06-0AB0 and includes conformal coating, interface module data volume, and bus connection via 9-pin D-sub.
Detailed Parameters
Spare part:SIPLUS ET 200S IM 151-1
Part number:6AG1151-1AA06-7AB0
Based on:6ES7151-1AA06-0AB0
Conformal coating:Yes
Ambient temperature range:-25…+70 °C
Interface module data volume (inputs):244 bytes each
Interface module data volume (outputs):244 bytes each
Max. I/O modules:63
PROFIBUS DP versions:V0 and V1
Max. width:up to 2 m
Bus connection:9-pin D-sub
Engineering Context
SIPLUS ET 200S IM 151-1 is intended as a spare part for a standard ET 200S IM 151-1 configuration based on 6ES7151-1AA06-0AB0.
The interface module includes termination module data volume of 244 bytes each for inputs and outputs.
Up to 63 I/O modules for PROFIBUS DP V0 and V1 up to a width of 2 m can be connected via a 9-pin D-sub bus connection.
FAQ
1. What is the product type for Part number 6AG1151-1AA06-7AB0?
It is a spare part: SIPLUS ET 200S IM 151-1.
2. What is 6AG1151-1AA06-7AB0 based on?
It is standard based on 6ES7151-1AA06-0AB0.
3. Does the SIPLUS ET 200S IM 151-1 include conformal coating?
Yes, it is standard with conformal coating.
4. What is the ambient temperature range?
-25…+70 °C.
5. What data volume is provided for inputs and outputs?
Interface module incl. termination module data volume of 244 bytes each for inputs and outputs.
6. How many I/O modules and what bus interface are specified?
Max. 63 I/O modules PROFIBUS DP V0 and V1 up to 2 m width can be connected, with bus connection via 9-pin D-sub.
